Quick answer
Under a stable feed, an increase in measured cyclone pressure drop is a diagnostic signal, not proof of blockage: first verify pressure-tap condition, instrument scaling, gas-flow and temperature conditions, and the comparable operating baseline before attributing the change to buildup or internal damage. Compare the measured drop against the OEM‑specified baseline for each cyclone stage. If the deviation exceeds the OEM‑defined tolerance, follow the 7‑step workflow: confirm isolation, verify instrumentation, inspect for fouling or wear, perform staged cleaning, re‑measure, and document the trend. Acceptance requires verified instrumentation, comparable gas-flow and temperature conditions, a pressure-drop trend within the equipment-specific approved range, and stability over the plant-defined observation period.
Problem / Job

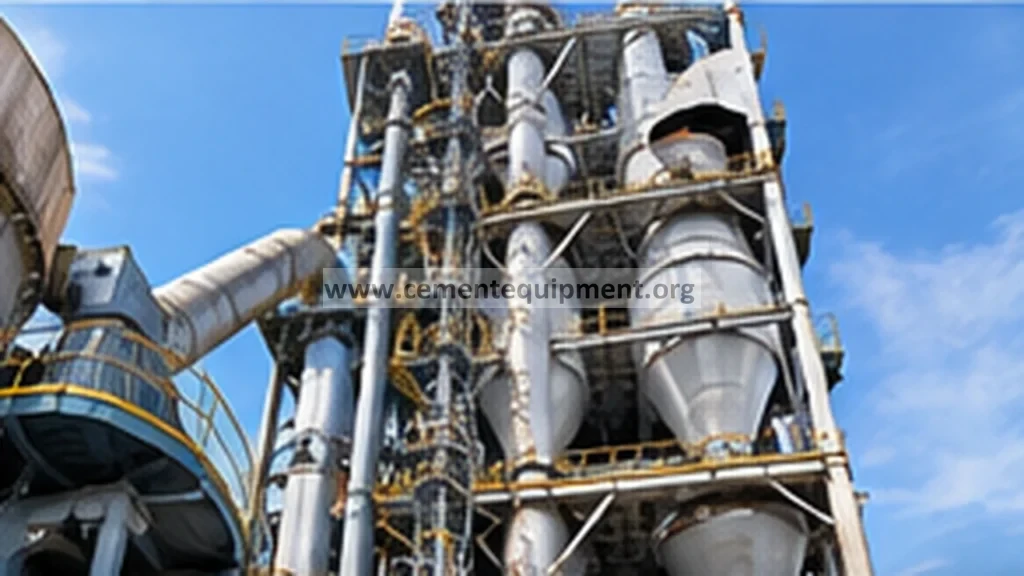

Operators notice an incremental increase in pressure drop across one or more pre‑heater cyclones while the raw‑meal feed rate, composition, and temperature remain unchanged. The task is to determine the root cause, apply the correct corrective action, and verify that the cyclone returns to normal operating conditions without compromising plant safety or downstream equipment.
Evidence
Typical evidence includes:
- Pressure‑drop readings from the cyclone differential transmitters that exceed the last stable baseline.
- Stable feed‑rate, feed‑temperature, and feed‑moisture data from the raw‑meal system.
- No recent changes to fuel‑air ratios, kiln speed, or raw‑material grinding circuit.
- Visual inspection reports showing no obvious external damage to cyclone shells or supports.
Decision
Based on the evidence, the decision path is to treat the pressure‑drop increase as a potential blockage or wear issue. The diagnostic workflow prioritises verification of instrumentation, safe isolation, staged cleaning (mechanical or hydraulic), and re‑validation of pressure‑drop trends. If cleaning does not restore the pressure‑drop to within OEM limits, further mechanical inspection or component replacement is required.
7‑Step Diagnostic Workflow
- Confirm stable feed conditions. Review raw-meal flow-rate, temperature, moisture, and composition logs over a representative period that includes the last known stable operation and the onset of the deviation. Document any deviations.
- Plan shutdown and safe access. A preheater cyclone is part of a connected high-temperature gas and meal circuit; do not assume an individual stage can be isolated. Routine pressure checks should use installed instruments without opening the system. For intrusive inspection, follow the approved kiln/preheater shutdown, cooling, isolation, stored-material and confined-space entry procedures. Authorized personnel must verify all applicable energy isolations, safe temperature and atmosphere, and protection against material release before access.
- Validate instrumentation. Cross‑check differential pressure transmitter calibration against a calibrated handheld gauge. Replace or recalibrate if the reading error exceeds the OEM‑specified tolerance.
- Inspect for fouling or buildup. Use a remote visual system (borescope or CCTV) to examine the cyclone inlet, vortex finder, and dust‑collector cone for accumulated raw‑meal, clinker fines, or scale.
- Use an approved cleaning method only. If inspection confirms deposits, select the plant- and OEM-approved cleaning procedure for the specific location and operating state. Never introduce water or compressed air into a hot or occupied cyclone without an explicitly engineered and authorized procedure: steam generation, thermal shock, dust release and falling deposits can cause serious injury or equipment damage. Verify isolation and access controls before cleaning.
- Re‑measure pressure drop. After cleaning, restore normal feed and record the pressure‑drop at three successive steady‑state points. Compare each reading to the baseline and OEM‑approved range.
- Document and trend. Log all actions, measurements, and observations in the maintenance system. Update the cyclone performance trend chart and schedule a follow-up review at the interval specified by the plant maintenance and process monitoring procedures.
Diagnostic Matrix
| Evidence | Likely direction | Next check |
|---|---|---|
| Stage pressure drop persistently above its comparable approved baseline while feed is stable | Early fouling or scale buildup | Visual inspection of inlet and vortex finder |
| Stage pressure drop rises together with a new vibration or noise indication | Partial obstruction of vortex finder or wear of internal liners | Mechanical integrity check; measure liner thickness if accessible |
| Pressure drop unchanged but transmitter reading erratic | Instrumentation drift or sensor fault | Calibrate or replace differential pressure transmitter |
| Pressure drop ↓ after cleaning, but still above OEM limit | Residual buildup or structural wear | Schedule detailed internal inspection; consider liner replacement |
| Pressure drop returns to the approved comparable baseline and remains stable over the site-defined observation period | Potentially resolved after confirmation of operating conditions, instrumentation and approved acceptance limits | Return to normal monitoring schedule |
Verification & Acceptance Criteria
Acceptance is confirmed when all of the following conditions are met:
- Pressure‑drop readings for the affected cyclone are within the OEM‑specified tolerance band around the design baseline. Verify the exact limit in the OEM documentation for the specific cyclone model.
- The pressure-drop trend remains within the OEM or site-approved acceptance band during a representative stable operating period; record the actual test duration, gas-flow conditions and measurement uncertainty rather than applying an arbitrary percentage threshold.
- All safety interlocks and LOTO devices are removed, and the cyclone is fully re‑energized according to the plant start‑up procedure.
- Instrumentation calibration records show that the differential pressure transmitter is within its calibration interval and passes the post‑maintenance verification test.
- Operational logs indicate no abnormal temperature spikes, vibration alarms, or abnormal kiln draw‑off rates that could be linked to the cyclone condition.
Document the final readings, calibration certificates, and any corrective actions taken. Attach the updated trend chart to the maintenance work order for future reference.
Common Mistakes & Repeat‑Failure Traps
- Skipping LOTO. Attempting visual inspection or cleaning without proper isolation can lead to accidental pressurization, equipment damage, or personal injury.
- Assuming instrument error. Dismissing a pressure‑drop increase as a sensor fault without verification may mask a genuine blockage.
- One‑time cleaning. Performing a single cleaning pass and declaring the issue resolved, even when the pressure‑drop remains above OEM limits, often leads to rapid recurrence.
- Ignoring feed variations. Overlooking subtle changes in raw‑meal moisture or particle size can misattribute a pressure‑drop rise to cyclone fouling.
- Inadequate documentation. Failing to record the exact cleaning method, duration, and water/air flow rates makes it difficult to reproduce successful interventions.
- Neglecting wear inspection. Repeatedly cleaning without checking liner thickness or vortex‑finder wear can allow progressive degradation to go unnoticed.
- Over‑reliance on trend alarms. Relying solely on alarm thresholds without trend analysis may delay detection of gradual pressure‑drop increases.
To avoid repeat failures, integrate the diagnostic workflow into the standard operating procedure, enforce LOTO compliance, and schedule periodic internal inspections based on the observed trend data.
