Quick answer
Changes in cyclone pressure differential and temperature can indicate altered gas flow or separation performance, but do not by themselves establish dip-tube damage. Compare like-for-like operating trends and validate instrument readings before narrowing the cause. If inspection is justified, use the plant’s approved shutdown, hazardous-energy isolation, safe-access and inspection procedures. Repair or replacement decisions require confirmed findings and OEM or competent engineering approval. Verify pressure and temperature behavior during a separately authorized controlled return to service against documented site-specific acceptance criteria.

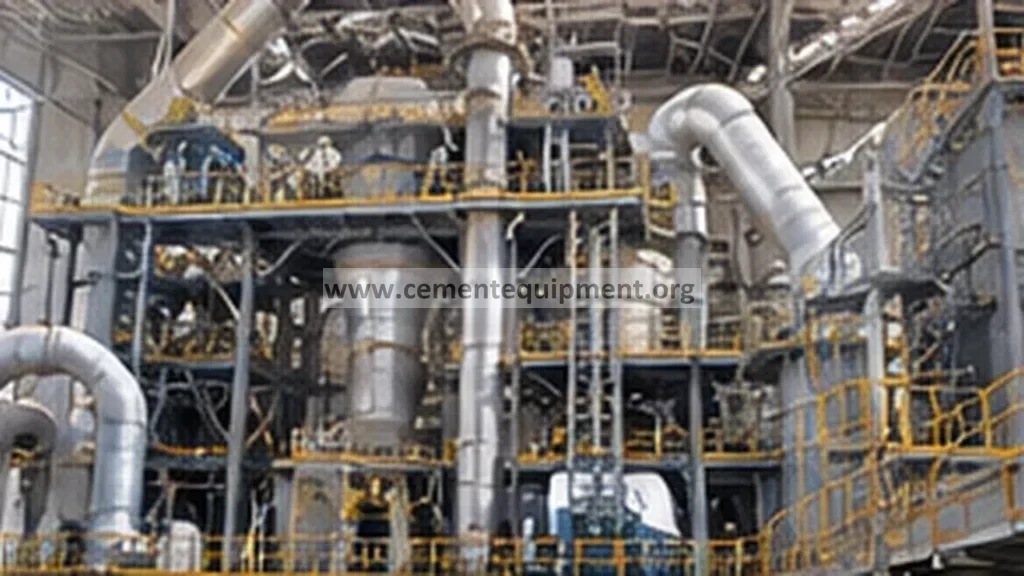

Problem / job
Where cyclone pressure differential, outlet temperature or transient behavior changes, the diagnostic task is to determine whether instrumentation, kiln operating conditions, gas-flow restrictions, air leakage, build-up or internal cyclone components are responsible. Dip-tube damage is one possibility, not an established diagnosis. Establish a reliable baseline and inspection justification before authorizing intrusive work.
Evidence
- Record upstream and downstream pressure measurements with sensor locations, calibration status and the sign convention for calculated differential pressure.
- Compare temperature and pressure trends at similar kiln feed, gas-flow, fuel and draft conditions against documented healthy-operation records.
- Check for plugged pressure tappings, impulse-line faults, sensor drift and control-loop changes before attributing the trend to internal damage.
- Review adjacent cyclone stages, air-leak indications, build-up history and process disturbances to identify alternative explanations.
- Record inspection or vibration evidence only where available and obtained using an approved method; do not invent case measurements or assume a diagnostic frequency.
Decision
Use corroborated process and instrument evidence to rank possible causes. Escalate to an OEM or qualified site engineer where internal cyclone damage is plausible; determine whether an outage inspection is warranted. Select any repair or replacement only after confirmed findings, design review and an approved work method. Perform operating acceptance after, not before, the authorized restart.
Practical 7‑step workflow
- Collect comparable baseline data. Review available pressure, temperature, gas-flow and kiln-load trends for the affected cyclone and adjacent stages. Choose an evidence window that covers the observed event and comparable stable operating conditions; do not impose a universal minimum duration.
- Verify measurement integrity. Check instrument health, pressure-tapping and impulse-line condition, scaling, sensor location and differential-pressure calculation. Calibrate or replace instruments only where justified by approved maintenance procedures and findings.
- Plan safe shutdown and isolation. If internal inspection is authorized, follow the site’s equipment-specific preheater shutdown and hazardous-energy isolation procedures. Address residual heat, falling or retained material, gas exposure, draft, electrical drives and other applicable hazards. Verify a safe state and required permits before opening access; stopping gas flow alone does not make the cyclone safe to enter.
- Inspect only under authorized safe access. Use the approved inspection method, with confined-space assessment, atmospheric testing, rescue arrangements, cooling and material-retention controls where applicable. Examine accessible dip-tube geometry, attachments, erosion, deposits and adjacent refractory, and document actual findings.
- Select appropriate inspection and NDT methods. A qualified inspector or engineer should select visual, dimensional or nondestructive methods suitable for the actual dip-tube material, lining, accessibility and failure mechanism. Ultrasonic thickness measurement is appropriate only where the material, surface and approved procedure support reliable readings. Compare documented findings with applicable drawings, OEM requirements and an approved engineering disposition; do not assume a universal minimum wall thickness.
- Determine corrective action. Distinguish confirmed component damage from instrumentation and process causes. Any cleaning, repair, welding, reinforcement or replacement must follow an approved engineering disposition, materials specification, site permit and OEM requirements where applicable. Do not assume in-situ welding is permissible.
- Re-commission and verify. After the approved repair or replacement, document inspection acceptance, close and secure all access points, restore guarding, and obtain the required release of isolation permits. Restart only under the plant’s approved preheater procedure and applicable OEM requirements; do not assume an inert-gas purge is necessary or suitable. Monitor cyclone pressure differential and temperature during controlled return to service at comparable operating conditions. Document results against site-specific criteria before normal operation is accepted.
Diagnostic matrix
| Evidence | Likely direction of damage | Next check / action |
|---|---|---|
| Pressure differential changes at comparable operating conditions | Possible gas-flow change, build-up, leakage, instrumentation fault or internal geometry change; mechanism unconfirmed | Verify tapping and sensor integrity, stage trends and process context before deciding whether internal inspection is needed |
| Downstream temperature departs from comparable healthy-operation trends | Possible change in feed, gas mixing, separation, leakage or instrumentation; temperature alone cannot identify tube wall thinning | Compare adjacent-stage trends and kiln operating conditions, then investigate plausible causes |
| Pressure transients coincide with load or draft changes | Control-loop, measurement, gas-flow or material-flow disturbance; physical damage not established | Review synchronized control trends, pressure-tapping condition and process events; authorize further investigation if supported |
| New vibration or noise reported near cyclone support | Multiple possible structural or process sources; no diagnostic frequency can be assumed | Compare safe measurements with a valid baseline and investigate attachment or structure only under approved isolation |
| Sensor drift or inconsistent readings | Faulty transmitter rather than tube damage | Calibrate or replace pressure/temperature transmitters before mechanical inspection |
Acceptance criteria
All corrective actions are considered successful only when the following measurable conditions are met:
- Pressure differential. Assess trends against a documented healthy baseline at comparable kiln feed, gas flow and draft; use equipment-specific engineering acceptance criteria, not a universal percentage.
- Temperature profile. Compare downstream and adjacent-stage temperatures under representative conditions with approved site operating limits; do not impose a universal tolerance or test duration.
- Component condition. Where suitable thickness measurements are specified and technically feasible, compare valid readings with the applicable OEM or engineering-approved limits. Otherwise document the approved visual, dimensional or alternative inspection findings and obtain engineering acceptance of the actual component condition.
- Vibration baseline. Vibration amplitude at the cyclone support returns to the pre‑damage baseline range recorded during normal operation.
- Leakage and assembly checks. Confirm closures, seals and relevant air-inleakage or gas-tightness requirements by the OEM/site-approved method. Do not pressure-test a cyclone or apply a pressure-hold procedure unless its design and an approved engineering test plan explicitly permit it.
- Documentation. Complete a work order that includes LOTO verification, inspection photos, NDT results, part numbers, and a sign‑off from the reliability engineer.
Common mistakes and repeat‑failure traps
- Ignoring early trend signals. Operators sometimes wait for a full shutdown before investigating a modest pressure drop, allowing damage to progress to a point where repair costs increase dramatically.
- Relying on a single sensor. A faulty downstream pressure transmitter can mask the true ΔP. Always cross‑check with a secondary gauge or manual pressure reading.
- Skipping hazardous-energy isolation. Opening a cyclone or performing intrusive inspection before the approved shutdown, cooling, retained-material control, isolation and safe-access checks can expose personnel to hot material, hazardous atmospheres, falling deposits and unexpected equipment movement. Verify the safe state and required permits before access.
- Using non‑OEM replacement parts. Substituting a dip‑tube with a different alloy or wall thickness can introduce new failure modes such as accelerated corrosion or thermal fatigue.
- Re‑starting before verification. Returning the pre‑heater to full load without confirming that pressure and temperature have stabilized often results in recurring spikes and premature re‑failure.
- Over‑cleaning. Aggressive mechanical cleaning of the dip‑tube interior can thin the wall further, especially if the tube is already near its minimum thickness.
- Neglecting documentation. Failure to record inspection findings, NDT data, and corrective actions makes trend analysis impossible for future incidents.
