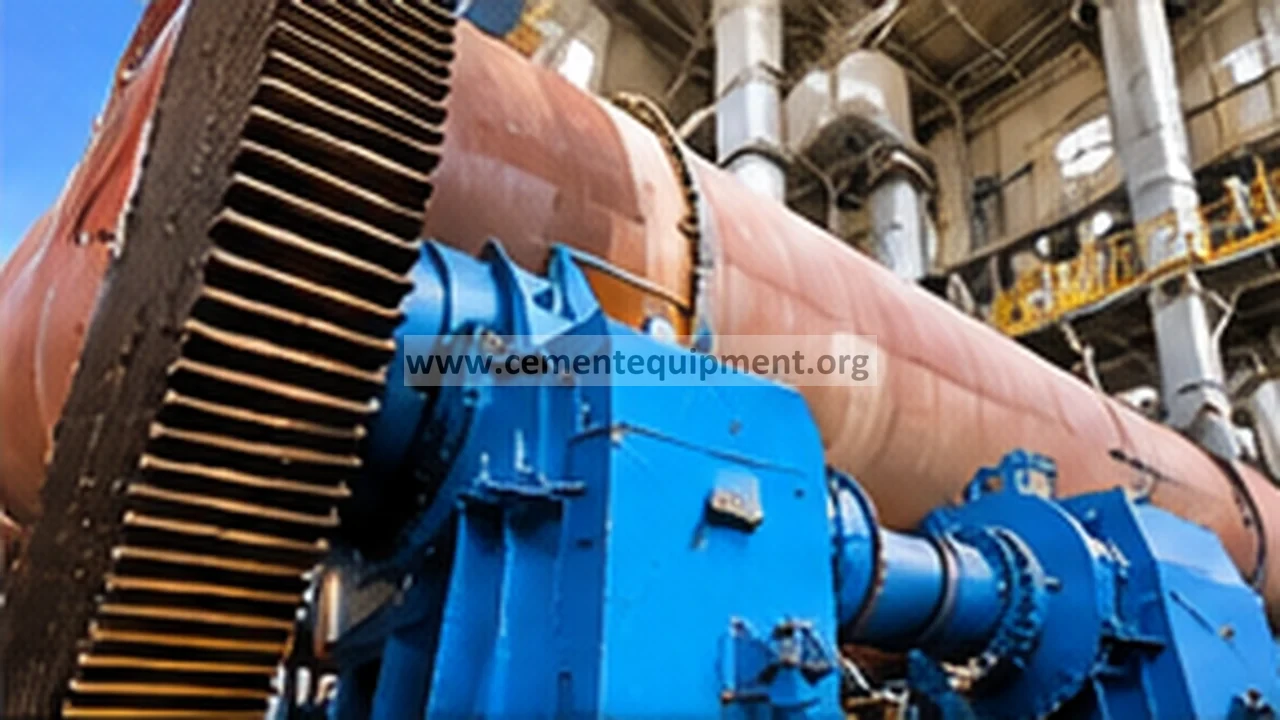

Rotary kiln girth gear and pinion drive assembly in a cement plant

Calciner CO Spikes with Stable Kiln Feed: Air-Fuel-Mixing Diagnostic Guide

Previous Post
Next Post
Calciner CO Spikes with Stable Kiln Feed: Air-Fuel-Mixing Diagnostic Guide
Calciner CO Spikes with Stable Kiln Feed: Air-Fuel-Mixing Diagnostic Guide — technical visual from the Infinity media library. Image serial IMG-WP-022189.

Quick answer

When carbon monoxide (CO) spikes in the calciner while the kiln feed remains steady, the most common root cause is an air‑fuel mixing imbalance at the calciner burner. Verify primary air flow, secondary air distribution, fuel pressure, and burner atomisation before checking downstream equipment. Adjust the primary‑to‑secondary air ratio to the OEM‑specified range, confirm fuel nozzle condition, and re‑balance the mixing manifold. If CO remains high after the air‑fuel correction, proceed through the full 7‑step diagnostic workflow.

Problem / job

Operators of cement plants report intermittent CO spikes (> ppm levels that trigger alarms) in the calciner zone while the kiln feed rate is unchanged and within normal limits. The objective is to identify the underlying cause, correct it, and establish a verification plan that prevents recurrence.

Evidence

  • CO analyzer in the calciner stack shows transient peaks that exceed the plant’s alarm set‑point.
  • Feed rate to the kiln (raw meal) is stable for at least 30 minutes before, during, and after each CO event.
  • Other emissions (NOx, SO₂) remain within normal ranges, suggesting the combustion zone is the primary variable.
  • Recent maintenance on the calciner burner, primary‑air fans, and fuel pump.
  • No recent changes to raw material composition or kiln temperature set‑points.

Decision

Because the feed is stable, the diagnostic focus shifts to the air‑fuel mixing system, burner performance, and control loops that regulate primary and secondary air. The recommended action is a systematic, step‑by‑step investigation that isolates each subsystem, validates sensor accuracy, and restores the air‑fuel ratio to the OEM‑approved operating window.

Practical 7‑step workflow

  1. Secure the area and apply LOTO. Before any physical inspection, isolate the calciner burner, primary‑air fans, and fuel pump according to the plant’s lock‑out/tag‑out procedure. Verify zero‑energy condition with a calibrated multimeter or pressure gauge. Document lock‑out points and ensure a qualified attendant remains on site.
  2. Validate instrumentation. Check the calibration status of the CO analyzer, primary‑air flow transmitters, secondary‑air flow transmitters, fuel pressure gauges, and temperature sensors. Perform a “zero‑and‑span” check on the CO analyzer using a certified calibration gas. Record any drift and schedule recalibration if needed.
  3. Review control‑loop performance. Examine the PID settings for the primary‑air damper, secondary‑air damper, and fuel‑flow controller. Look for recent set‑point changes, integral wind‑up, or sensor lag. Compare the actual process variable (PV) against the set‑point (SP) over the last hour of the CO event.
  4. Measure primary‑air flow. With the burner still isolated, use a calibrated flow‑meter or pitot tube to verify the actual primary‑air volume delivered by each fan. Compare measured values to the values displayed on the DCS. If a discrepancy exceeds the OEM‑specified tolerance, inspect the fan blades, drive belts, and variable‑frequency drive (VFD) parameters.
  5. Inspect secondary‑air distribution. Remove the secondary‑air manifold cover (after LOTO) and visually inspect for blockage, corrosion, or mis‑aligned nozzles. Use a portable anemometer to confirm uniform velocity across each secondary‑air port. Uneven distribution can create local fuel‑rich zones that generate CO spikes.
  6. Examine fuel delivery. Check fuel pump pressure, filter condition, and nozzle wear. A partially clogged nozzle reduces atomisation, leading to incomplete combustion. Replace the nozzle if visual inspection shows erosion or carbon build‑up. Verify that fuel pressure matches the OEM‑specified operating range.
  7. Re‑balance the air‑fuel ratio. With all mechanical components verified, restore power to the burner and gradually bring the primary‑air damper to the OEM‑recommended baseline. Adjust secondary‑air proportion to achieve the target primary‑to‑secondary ratio. Monitor CO levels in real time; a stable CO reading below the alarm threshold for at least 30 minutes indicates successful re‑balancing. Document the final set‑points and any deviations from the original configuration.

After completing the workflow, remove LOTO devices only after confirming that the burner is operating safely and all personnel are clear of the hazard zone.

Diagnostic matrix

Evidence observedLikely direction of faultNext check / corrective action
CO spikes coincide with primary‑air fan speed fluctuations.Primary‑air flow low → fuel‑rich condition.Measure actual fan output; inspect VFD and fan blades; adjust damper.
CO spikes occur after a recent fuel‑pump maintenance.Fuel pressure drop or nozzle wear → incomplete atomisation.Check pump pressure, replace nozzle, verify filter integrity.
Secondary‑air flow meters read lower than set‑point during spikes.Secondary‑air under‑supply → localized rich zones.Inspect secondary‑air manifold for blockage; clean or replace nozzles.
CO analyzer calibration out of date.False high reading.Re‑calibrate analyzer with certified gas; verify trend against a backup sensor.
PID loops show large integral error during spikes.Control‑loop tuning issue.Review PID parameters; retune to reduce overshoot; check sensor lag.
Fuel composition changed (e.g., higher moisture).Effective fuel heating value reduced → richer mixture.Confirm fuel specification; adjust air‑fuel set‑points accordingly.

Verification and acceptance criteria

Successful remediation is confirmed when all of the following measurable conditions are met for a minimum of 30 minutes under normal plant load:

  • CO concentration in the calciner stack remains below the plant’s alarm set‑point and within the range documented in the OEM operating manual.
  • Primary‑air flow readings on the DCS match calibrated flow‑meter measurements within the OEM‑specified tolerance.
  • Secondary‑air flow distribution is uniform across all ports, with velocity variation not exceeding the acceptable deviation stated by the burner manufacturer.
  • Fuel pressure and temperature are stable and within the OEM‑approved operating envelope.
  • Control‑loop performance metrics (e.g., integral error, settling time) are within the limits defined in the plant’s control‑system specification.
  • All LOTO devices are removed only after a final visual inspection confirms that no tools, lock‑out devices, or personnel remain in the hazard zone.

Document the final set‑points, instrument calibrations, and any hardware adjustments. Store the records in the plant’s maintenance database for future trend analysis.

Common mistakes and repeat‑failure traps

  • Assuming CO spikes are caused by feed variability. When the kiln feed is demonstrably stable, focusing on feed changes diverts attention from the air‑fuel system where the fault usually resides.
  • Skipping instrument calibration. An uncalibrated CO analyzer can produce false alarms, leading to unnecessary burner adjustments that may worsen combustion stability.
  • Adjusting only primary air. Reducing primary air without compensating secondary air often creates a new imbalance, resulting in recurring CO spikes.
  • Neglecting secondary‑air nozzle wear. Even a partially clogged nozzle can create a localized fuel‑rich pocket that the overall flow meters do not detect.
  • Bypassing control loops for a quick fix. Manual overrides may temporarily lower CO, but they erase the feedback that protects the system from future drift.
  • Removing LOTO before confirming stable operation. Premature re‑energisation can expose personnel to hot surfaces, un‑burned fuel, or unexpected flame‑out.
  • Failing to document changes. Without a clear record, the same corrective action may be repeated after a future event, eroding confidence in the troubleshooting process.

To avoid these traps, follow the structured workflow, verify each measurement, and retain a complete audit trail of all adjustments.
