Rotary Kiln Design Important Formulas



Inderjeet Singh Sidhu , Sr.GM Technical at Hyderabad

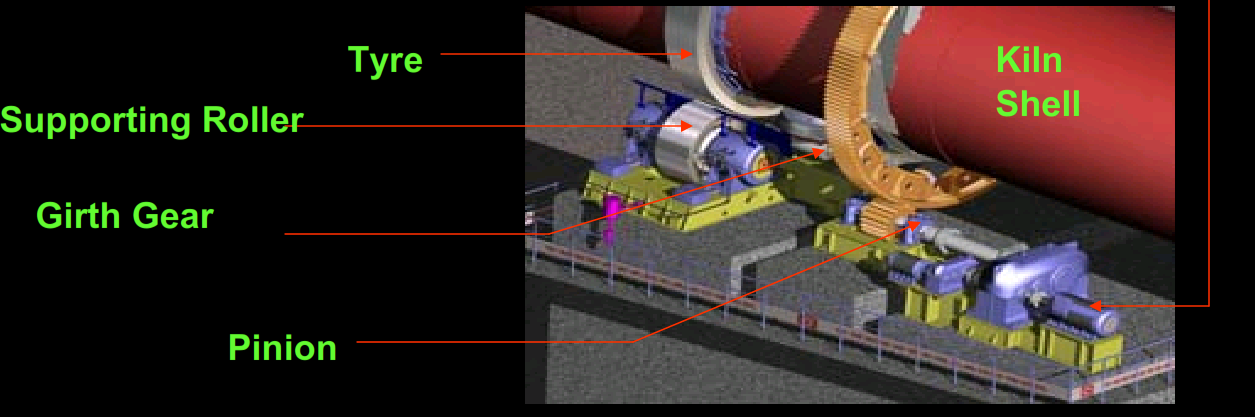

Kiln Tyre Material :

GS 24 Mn 5 (Normalized Cast Steel)

Kiln Tyre Dimension:

5620 OD x 4581 ID x 775 (width)

Supporting Rollers Assemblies Material :

CS 640 (Normalized Cast Steel)

Supporting Rollers Assemblies Dimensions :

5620 OD x 4581 ID x 775 (width)

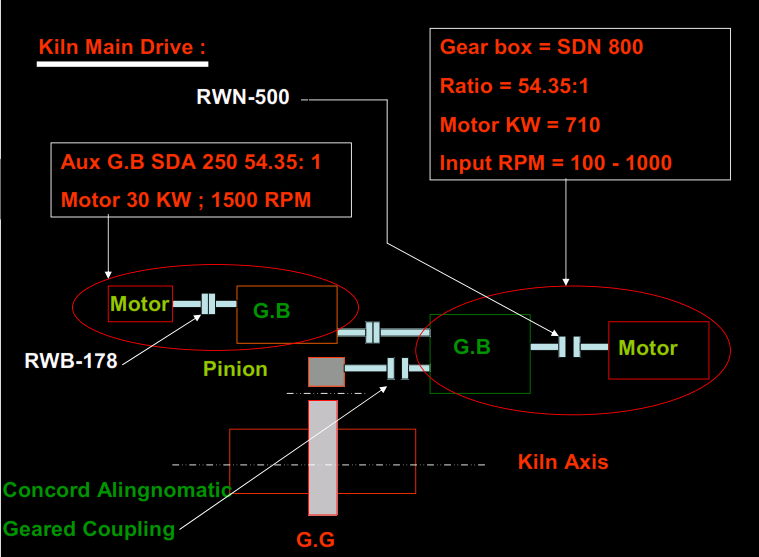

Kiln Main Drive Motor , Gearbox , Pinion Formula



Previous Post
Next Post

3 thoughts on “Rotary Kiln Design Important Formulas”

  1. Hussein salman Alfatlawy

    Supporting Rollers Assemblies Dimensions :
    5620 OD x 4581 ID x 775 (width)
    Is wrong because you wrote same of Kiln Tyre Dimension
