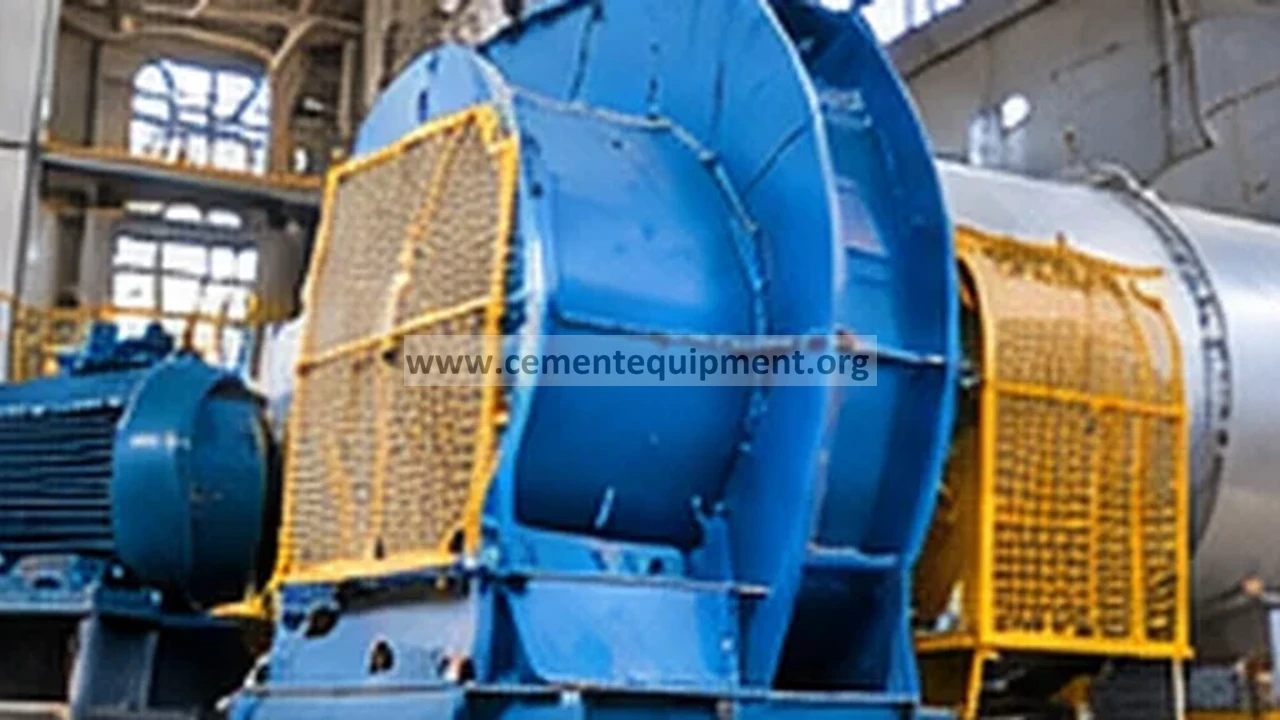

Quick answer
If the clinker cooler fan pressure is out of spec, first verify damper position against the control set‑point, then compare the measured fan pressure rise with the expected pressure drop across the cooler bed. Do not infer the damper position or cooler-bed resistance from a single suction or discharge pressure reading: the pressure response depends on fan arrangement, damper location, airflow, fan curve and pressure-tap positions. Compare synchronized inlet and outlet pressures, actual damper feedback, fan speed or current, cooler-compartment pressure and operating history with the installed equipment’s performance data. Any damper adjustment requires authorization and confirmation that fan and cooler operating limits will remain satisfied. If pressures remain abnormal, proceed through the detailed 7‑step workflow to isolate mechanical, pneumatic, or process‑related causes.
Problem / job
During routine performance monitoring, the clinker cooler fan shows a pressure rise that deviates from the expected range. The operator suspects an issue with the damper position, but the cooler bed resistance may also be contributing. The goal is to determine whether the damper, the cooler bed, or another subsystem is responsible, and to restore the fan to its design operating point.
Evidence
- Record synchronized fan suction and discharge pressure, fan speed or current, airflow where available, and the measurement-point locations.
- Compare commanded and indicated damper position; independently verify actual position only using an approved safe method.
- Review cooler-compartment or undergrate pressure, bed depth, clinker distribution, temperature trends and operating history.
- Check available fan vibration, bearing-temperature and maintenance records; absence of an alarm does not prove mechanical integrity.
- Identify any recent actuator, instrument or process changes from documented maintenance records rather than assuming a specific repair history.
Decision
The first diagnostic action is to validate pressure and position measurements against the equipment arrangement and historical operating point. If a damper discrepancy is confirmed, investigate its cause under the approved safe-work procedure; evaluate cooler-bed resistance and airflow as parallel hypotheses rather than presuming either fault. The workflow below guides the technician through systematic isolation, measurement, and verification steps before any mechanical adjustment.
7‑step diagnostic workflow
- Secure the area and apply LOTO. Gather permitted remote operating trends before intrusive work where safe. For physical inspection, follow the site’s approved isolation and permit plan for all relevant energy sources, including fan and actuator power, compressed air, stored pressure, hot clinker, residual heat, moving machinery and potential confined-space or engulfment hazards. Authorized personnel must verify the required safe state before access.
- Confirm control set‑points. Access the DCS/HMI and record the commanded damper position (percentage open) and the fan pressure‑rise set‑point. Compare these values with the latest OEM or site‑specific operating limits. If a set-point discrepancy is found, record it and obtain operations or engineering authorization before any change; verify interlocks, process constraints and the installed fan’s operating envelope.
- Measure actual damper position. Use the damper position sensor read‑out or a calibrated manual gauge to determine the physical opening. If the sensor reading differs from the commanded position, note the discrepancy and proceed to actuator verification.
- Verify damper actuation mechanism. Inspect pneumatic or electric actuators for pressure loss, leaks, or electrical faults. Do not command full-stroke damper travel on an operating cooler as a routine diagnostic test. Review existing feedback and maintenance records first; perform any movement test only under a site-approved procedure that addresses airflow, combustion and cooling consequences, isolation requirements and personnel clearance. Repair or replace components only after a confirmed defect and authorized maintenance plan, then verify position feedback.
- Re‑measure fan pressures. With the damper confirmed in the correct position, measure suction (inlet) and discharge (outlet) pressures using calibrated transducers. Compare the pressure rise (ΔP) to the design value for the current clinker flow rate. An abnormal pressure difference does not by itself exclude the damper or establish a cooler-bed restriction; interpret it with fan speed, airflow, damper location, measurement taps, fan curve and cooler-compartment data.
- Assess cooler‑bed resistance. Gather temperature data from the cooler inlet, middle, and outlet zones. Calculate the temperature gradient and compare it to the baseline profile for normal operation. Temperature trends alone cannot establish bed resistance. Correlate compartment pressures, airflow, bed depth, clinker distribution and throughput with the site’s baseline.
- Implement corrective actions and retest. When corroborated evidence identifies a bed-distribution, airflow or damper problem, develop an equipment-specific corrective plan with operations and engineering approval. Do not independently change kiln/preheater temperatures, clinker feed or cooler-bed conditions solely to correct a fan-pressure reading. After authorized action, verify fan operation, cooler pressures, temperatures, airflow and safeguards over a representative period. Document all measurements, actions taken, and final operating parameters.
Diagnostic matrix
| Evidence | Likely direction | Next check |
|---|---|---|
| Discharge pressure high, suction pressure nominal | Possible damper-position discrepancy, pressure-tap issue or fan operating-point change; not diagnostic from pressure alone | Verify damper sensor reading vs physical position (Step 3) |
| Discharge pressure low, suction pressure high | Possible bed, airflow, fan-speed or instrumentation change; compare with the actual fan and cooler configuration | Review temperature profile and clinker feed rate (Step 6) |
| Damper sensor reads open, fan pressure still high | Possible position-feedback, pressure measurement or process mismatch; confirm independently | Compare actual feedback with safe reference measurements; authorize any movement test (Step 4) |
| Vibration normal, blade inspection clean | Available evidence does not establish a mechanical defect; normal vibration does not exclude all fan problems | Proceed to process‑related checks (Steps 5‑6) |
| Temperature gradient flattened, outlet temperature elevated | Possible bed-distribution or heat-transfer change; temperature alone does not confirm excessive resistance | Check bed level, clinker distribution, and moisture content (Step 6) |
| Control set‑point outside OEM limits | Set-point discrepancy requiring verification against approved operating documentation and change history | Verify set-point authority and obtain approval before any controlled change (Step 2) |
Acceptance criteria
All corrective actions are considered successful when the following measurable conditions are met:
- Damper position sensor reading matches the commanded set‑point within the tolerance specified by the OEM or site documentation.
- Fan pressure rise (ΔP) measured at the discharge and suction points falls within the design band for the current clinker throughput, as recorded in the process data historian.
- Temperature and compartment-pressure trends are consistent with the approved baseline, corroborated by fan airflow and operating-point evidence; temperature alone does not establish bed resistance.
- All LOTO devices are removed only after confirming that maintenance is complete, safeguards are restored, personnel are clear, and the authorized return-to-service procedure is followed.
- Process alarms related to fan pressure, damper position, or cooler temperature are cleared, and the control system indicates a normal operating state.
Document each measurement, the date/time, and the personnel responsible. Retain records for the minimum period required by plant policy to support future trend analysis.
Common mistakes and repeat‑failure traps
- Adjusting the damper without verifying sensor accuracy. A mis‑calibrated sensor can give a false impression of correct positioning, leading to repeated adjustments that do not affect fan pressure.
- Changing set‑points to “force” a desired pressure. Overriding OEM limits without engineering approval masks the underlying cause and can stress the fan or cooler structure.
- Skipping LOTO before manual damper inspection. This exposes personnel to unexpected fan start‑up or pneumatic actuation, increasing the risk of injury.
- Neglecting cooler‑bed temperature trends. An outlet-temperature trend can reflect several process changes; correlate it with bed depth, clinker distribution, undergrate pressure, airflow and throughput before attributing it to increased resistance.
- Assuming a single cause. Fan pressure anomalies are frequently the result of combined factors (e.g., partially closed damper plus marginally high bed resistance). A systematic approach prevents premature corrective actions.
- Failing to re‑validate after repair. Once a damper actuator is replaced, the control loop must be re‑tested under load to ensure the new component integrates correctly with the control system.
Record the evidence and unresolved uncertainties, and escalate deviations from approved operating limits before accepting the equipment for normal operation.
