Quick engineering answer
For dusty cement or raw-meal silos, select radar from the complete application rather than frequency alone. Define measuring range, silo/nozzle geometry, filling stream, internal obstacles, dust and buildup, hazardous-area requirements and plant communications; then commission the instrument during both filling and discharge, not only in a static silo.

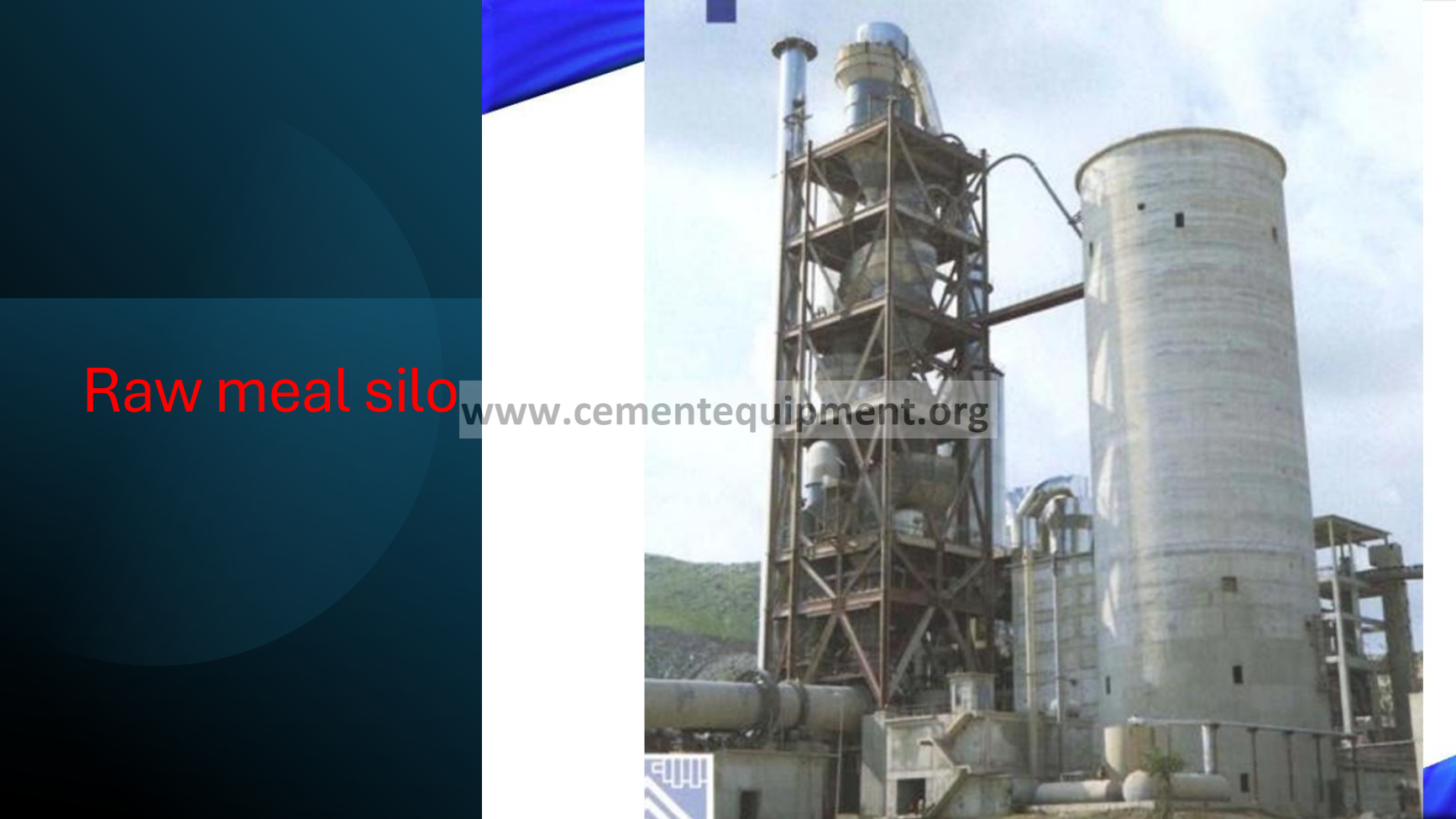

How to Select a Radar Level Transmitter for a Cement Silo
The correct radar transmitter is selected from the application, not from a brand name. Cement, fly ash, raw meal and additives can create intense dust, uneven surfaces and rapid changes during filling. The silo may also contain ladders, reinforcement, filling pipes and other structures that create unwanted reflections. Modern high-frequency free-space radar is useful because a narrow beam can be aimed at a clear measurement path while keeping the sensor out of contact with the material.
Start with the required measuring distance from the antenna reference point to the lowest useful level. Then define the material, expected bulk behavior, temperature, process pressure, dust intensity, buildup risk and the electrical/hazardous-area requirements. Dielectric properties still belong in the application data, but modern 80 GHz instruments are designed to handle a wide range of bulk solids and should be selected from the complete application rather than a single dielectric-number rule.
Maximum and minimum level, antenna location and dead-zone constraints.
Filling stream, braces, ladders, internal cones and wall projections.
Dust, buildup, temperature, pressure, vibration and hazardous-area needs.
4–20 mA/HART, fieldbus, local display, Bluetooth or plant-standard diagnostics.
Mounting Position Matters as Much as the Sensor
A radar mounted directly above the filling stream can lose the true product surface in strong echoes from falling material. Mounting too close to the wall can expose the beam to buildup and wall reflections. A long or narrow nozzle can also interfere with the emitted beam if the antenna and nozzle geometry are incompatible.
The preferred position gives the radar a clear line toward the useful material surface or outlet region while avoiding fixed internals. OEM case material for bulk solids commonly emphasizes tight beam focusing and, where needed, adjustable alignment toward the desired target area. During commissioning, perform the manufacturer’s false-echo or interference-signal mapping with the silo in a known condition, then verify the reading during filling and discharge—not only when the vessel is static.
Free-Space Radar vs Guided-Wave Radar
| Criterion | Free-space radar | Guided-wave radar |
|---|---|---|
| Material contact | Non-contact | Probe contacts material |
| Dust | Commonly suited to dusty bulk-solid service | Dust itself is less important than probe/mechanical conditions |
| Internal obstacles | Narrow beam and alignment help avoid them | Measurement follows probe path |
| Maintenance concern | Antenna buildup and mounting geometry | Probe loading, abrasion, tension and mechanical contact |
RFQ / Procurement Checklist
- Silo service: cement, raw meal, fly ash, additive, clinker dust or other bulk solid.
- Maximum measuring distance and normal operating level range.
- Silo diameter, roof geometry, nozzle size/length and proposed mounting point.
- Filling location, filling method and expected angle of repose.
- Internal obstructions and required beam clearance.
- Process temperature, pressure, dust and buildup conditions.
- Hazardous-area / dust-explosion certification when applicable.
- Required output, power supply, local indication and plant communication standard.
- Required antenna alignment hardware and weather/environmental protection.
- Commissioning support, false-echo mapping, diagnostics and spare-parts availability.
Commissioning and Acceptance Test
- Confirm the configured empty distance, maximum level and antenna reference point against the actual silo drawing.
- Check that the beam path clears the filling pipe, ladders, braces and wall projections over the useful measurement range.
- Run the vendor’s interference/false-echo mapping in a known vessel condition and save the baseline.
- Compare radar indication with an independent known level or inventory reference at more than one level where practical.
- Observe the signal during active filling: the transmitter should continue tracking the material surface without locking onto the falling stream.
- Observe discharge and verify the trend remains stable as the angle of repose changes.
- Test loss-of-signal, high-level and low-level behavior in the DCS/PLC, including any alarms used for inventory or overfill protection.
- Record the final mounting orientation, configuration backup and diagnostic baseline so future maintenance has a reference.
Frequently Asked Questions
Is 80 GHz radar always the best option?
It is often attractive for tall or obstructed bulk-solid silos because of its narrow beam, but final selection still depends on range, nozzle, surface profile, certifications and the manufacturer’s application limits.
Does cement dust block radar measurement?
Modern bulk-solid radar instruments are specifically marketed for dusty applications, but installation geometry, antenna condition and the filling stream still need to be considered.
Where should the radar point?
Toward a representative material surface with a clear beam path, avoiding the filling stream and fixed internals. Some applications benefit from an adjustable flange or alignment device aimed toward the outlet region.
