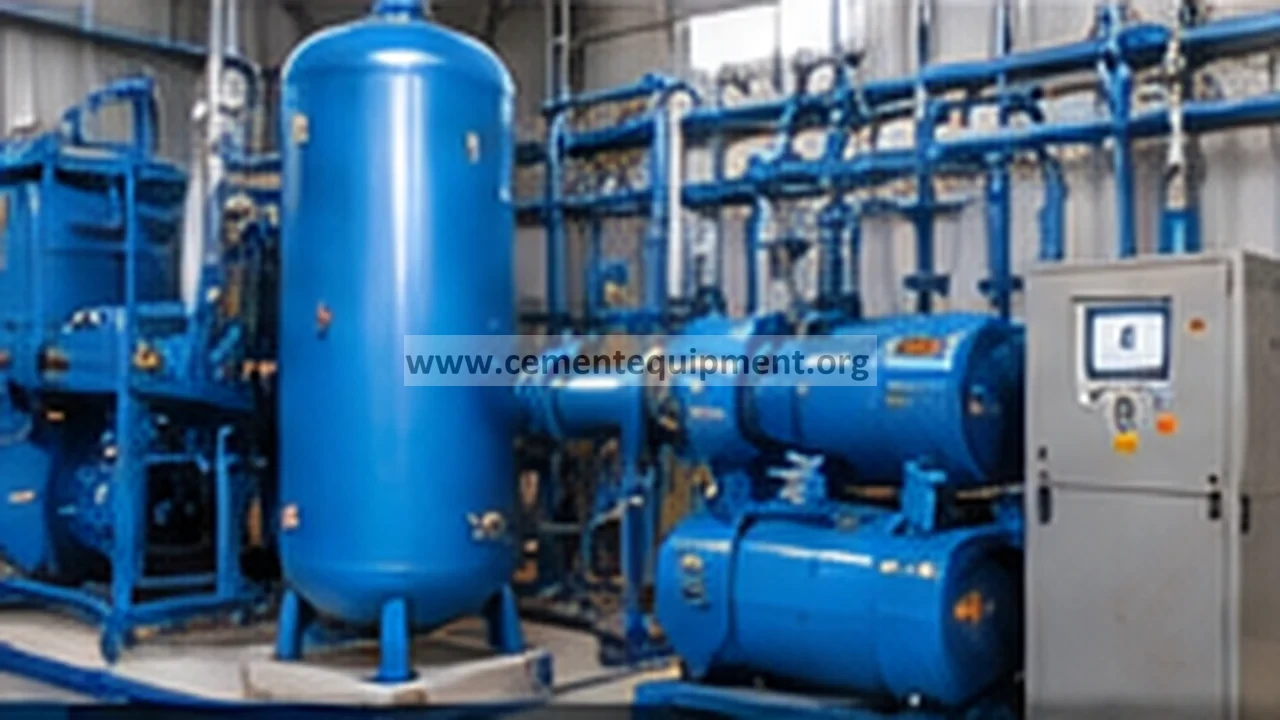

Quick answer
Water carryover from a compressed-air receiver usually means condensate is not being removed fast enough or the receiver is being overwhelmed by hotter/wetter inlet air. Diagnose automatic drain operation, drain isolation, receiver level, aftercooler performance, separator efficiency, inlet-air temperature, compressor load and downstream dryer condition before blaming the dryer. A drain can appear electrically active while the valve, trap or discharge line is blocked.
Problem / job
Liquid water appears downstream of the air receiver, drains discharge excessive condensate, or instruments and bag-filter valves receive wet air.
Evidence
Capture receiver pressure, condensate level/evidence, drain command and actual discharge, aftercooler outlet temperature, separator behavior, compressor load and dryer inlet condition.
Decision
Separate failed drain hardware from blocked discharge piping, excess condensate load, poor aftercooling/separation and downstream dryer problems.
As-found evidence capture
Record whether water carryover appears continuously or only during high compressor load, hot weather or rapid demand changes. Observe the receiver drain through several cycles and verify actual condensate discharge, not just the electrical command. Note aftercooler outlet temperature and separator drain behavior.
Compressed-air receivers are pressure vessels. Inspection, manual drain testing and any service must follow the plant’s pressure-isolation and depressurization procedures.

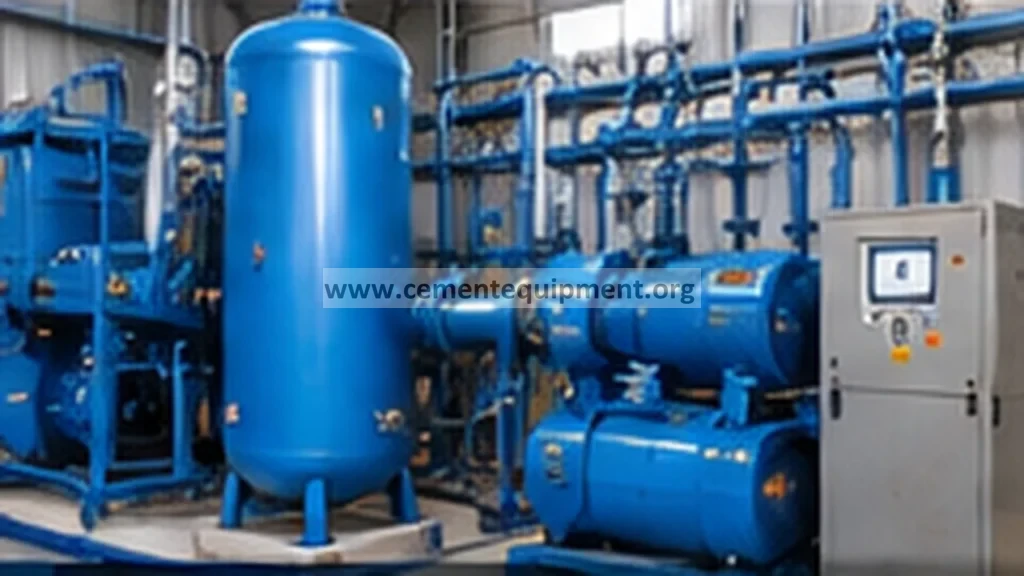

Wet-side condensate audit before blaming the dryer
- Observe the aftercooler separator drain and receiver drain during loaded operation and prove actual condensate discharge.
- Check drain isolation/manual valves and discharge tubing for blockage, oil sludge, rust or backpressure.
- Record aftercooler outlet temperature and compare with the healthy baseline.
- Inspect moisture separator condition and its own drain operation.
- Check receiver pressure, compressor loading and ambient humidity/temperature during the event.
- Confirm the dryer bypass is closed and note dryer inlet temperature, pressure and dew-point alarm status.
- Look for liquid water at low points downstream; a failed receiver drain can send slugs that overwhelm later treatment.
- Do not open or dismantle pressurized drains/receiver components without full isolation and depressurization.
Stop/go decision: if bulk liquid is present upstream of the dryer, restore upstream cooling/separation/drainage first. A dryer is designed to remove water vapor to a specified dew point, not to compensate indefinitely for a flooded wet receiver.
Seven-step diagnostic workflow
1. Verify the receiver drain actually passes condensate
Check timer/level control, solenoid or zero-loss drain operation and the physical discharge path. A blocked strainer, stuck valve or frozen/plugged drain line can leave condensate trapped even when the controller shows normal cycling.
2. Check drain isolation and manual valves
Confirm maintenance valves are in their intended position. A partly closed drain isolation can restrict condensate removal without obvious alarms.
3. Inspect upstream aftercooling
Higher compressor discharge or aftercooler outlet temperature increases the moisture load reaching the receiver. Compare cooling-water/airflow performance and temperature with the historical baseline.
4. Check moisture separator performance
If an upstream separator is ineffective or its drain is blocked, the receiver must handle much more liquid water. Inspect separator differential/condition and drain behavior.
5. Compare condensate production with compressor loading
Peak plant-air demand and hot/humid ambient conditions can increase condensate volume. Confirm drain capacity and receiver arrangement remain adequate under actual peak load.
6. Check downstream dryer impact
Liquid carryover can overload a dryer and cause high dew point. If the dryer alarm appeared after receiver drain problems, correct liquid removal first before replacing desiccant or refrigeration components.
7. Prove dry receiver operation
After correction, observe multiple compressor load cycles and drain events. Confirm no liquid accumulates abnormally, downstream separators remain controlled and dryer inlet conditions return to normal.
Evidence-to-decision table
| Evidence | Likely direction | Next check |
|---|---|---|
| Drain command present but no condensate exits | Blocked/stuck drain path | Drain valve, strainer and discharge line |
| Large condensate volume during hot/high-load periods | High moisture load | Aftercooler and drain capacity |
| Receiver water plus high aftercooler temperature | Cooling-performance problem | Aftercooler airflow/water flow |
| Upstream separator drain also fails | Shared condensate-removal problem | Separator and drain system |
| Dew point worsens after water carryover | Dryer overloaded by liquid water | Correct receiver/separator first |
Interpret where the water is first appearing
Water accumulates in the receiver while its drain does not discharge: treat the receiver drain path as the primary fault. Both separator and receiver collect excessive liquid: check aftercooler performance, compressor discharge temperature and ambient moisture load. The receiver remains dry but the dryer outlet is wet: move the investigation downstream into dryer performance, bypass valves and distribution piping. Water appears only at distant low points: verify downstream pipe temperature, slope and local drains because condensation may be occurring after the dryer.
Use the sequence compressor → aftercooler → separator → wet receiver → dryer → distribution. Finding the first point where free liquid appears is faster and more reliable than replacing the dryer based only on a wet point-of-use complaint.
Return-to-service acceptance criteria
Verify the condensate-removal chain through representative compressor loading:
- Observe several actual separator and receiver drain events and confirm condensate leaves the system.
- Confirm aftercooler outlet temperature and separator performance have returned to the healthy baseline.
- Check the receiver no longer accumulates abnormal liquid between drain events.
- Confirm no free water is carried into the dryer inlet or downstream header.
- Verify dryer inlet conditions and dew-point trend recover after bulk-liquid removal is restored.
- Record drain type, settings, isolation position and discharge-path condition as the maintenance baseline.
Use the receiver, drain, aftercooler and dryer manufacturer limits for final acceptance. The required condensate-removal capacity changes with ambient humidity, compressor loading and cooling performance.
Common mistakes and repeat-failure traps
- Trusting a drain LED or solenoid click: electrical command does not prove liquid is passing through the valve and discharge line.
- Blaming the dryer first: restore upstream bulk-liquid separation before diagnosing dew-point equipment.
- Leaving a manual bypass open: this wastes compressed air and does not provide reliable level-based drainage.
- Ignoring the discharge tube: sludge, oil and rust can block the line even when the drain valve itself operates.
- Ignoring aftercooler temperature: hotter air carries more vapor into the receiver and sharply increases condensate load downstream.
- Opening pressurized equipment: receiver and drain service requires the plant’s pressure-isolation and depressurization procedure.
