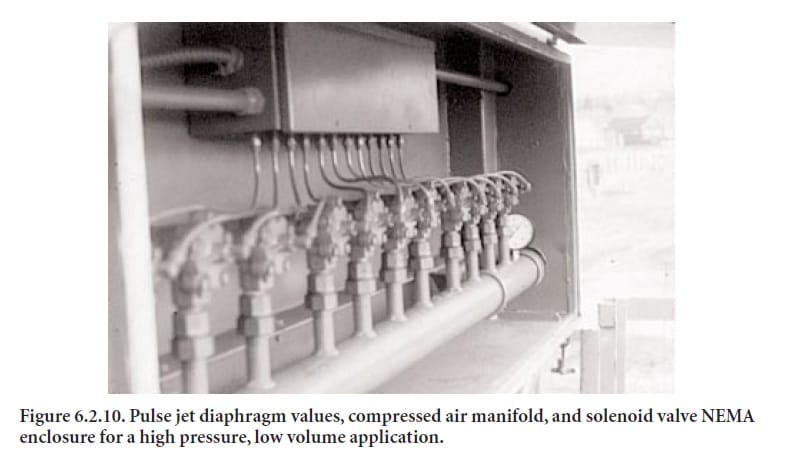

Figure 6.2.10. Pulse jet diaphragm values, compressed air manifold, and solenoid valve NEMA enclosure for a high pressure, low volume application.

Air Compressor Loads and Unloads Too Frequently: Cement Plant Diagnostic Guide

Previous Post
Next Post

Air Compressor Loads and Unloads Too Frequently: Cement Plant Diagnostic Guide
Air Compressor Loads and Unloads Too Frequently: Cement Plant Diagnostic Guide — technical visual from the Infinity media library. Image serial IMG-WP-001335.

Quick answer

Frequent air-compressor load/unload cycling usually means the compressed-air system has too little effective storage, excessive leakage, an overly narrow pressure band, unstable demand, bad pressure sensing or a control/sequence problem. Diagnose receiver pressure trend, load/unload setpoints, compressor capacity, system leakage, receiver isolation, pressure-transducer accuracy and whether multiple compressors are fighting each other before changing controls.

Problem / job

The compressor repeatedly loads and unloads over short intervals, increasing energy use, wear and pressure instability.

Evidence

Capture receiver/header pressure, compressor state, load/unload setpoints, plant demand, leakage condition, receiver volume available and other compressor states.

Decision

Separate real fast demand changes from insufficient storage, air leaks, bad sensing, poor setpoint band and multi-compressor sequencing issues.

As-found evidence capture

Trend system pressure and compressor load/unload state for at least several complete cycles. Mark major plant air consumers such as pneumatic conveying, bag-filter pulse cleaning and silo aeration. Note whether the cycling occurs during stable production or only during intermittent demand.

Compare current setpoints and pressure-transducer readings with the previous healthy configuration. Record whether receiver isolation valves or system piping were changed recently.

Minimum data set before changing compressor controls

  • Trend compressor discharge/header pressure and load/unload state over several complete cycles.
  • Record the actual load and unload setpoints and any unload-to-stop timer.
  • Confirm all intended air receivers are connected and their isolation valves are open.
  • Mark major demand events such as pneumatic conveying, bag-filter pulsing, aeration and bulk loading.
  • Check condensate drains for unintended continuous air loss.
  • Compare controller pressure with an independent gauge/transmitter.
  • Record the state and setpoints of every compressor sharing the header.
  • Note whether the machine is oversized relative to the current average demand or is operating far below its normal loaded duty.

Stop/go decision: if pressure falls rapidly while demand is stable, find leakage/storage/control causes first. If cycling aligns with a repeatable high-demand event, treat demand buffering or sequencing before modifying the compressor itself.

Seven-step diagnostic workflow

1. Verify pressure measurement

Compare the compressor controller pressure with a trusted local gauge or secondary transmitter. A drifting or noisy sensor can trigger unnecessary load/unload commands.

2. Review load and unload setpoints

Check the pressure band and control mode against the compressor/OEM strategy. An excessively narrow band can create rapid cycling even when system demand is stable.

3. Check effective receiver/storage volume

Confirm receivers are connected and isolation valves are open as intended. Reduced effective storage makes header pressure move quickly between setpoints.

4. Check system leakage

Large leaks or failed drains can cause frequent loading. Compare off-production pressure decay or use the plant’s leak-detection program rather than relying on audible leaks alone.

5. Correlate with major air consumers

Determine whether cycling aligns with bag-filter pulses, conveying vessels, aeration or other intermittent users. If so, the problem may be demand management or local buffering rather than the compressor itself.

6. Review multi-compressor sequencing

Two compressors with overlapping setpoints can hunt against one another. Confirm lead/lag sequencing, pressure targets and communication between units if a central controller is used.

7. Prove stable control over a production cycle

After correction, trend pressure and compressor state through representative plant demand. Confirm longer, more stable operating periods and acceptable pressure without excessive cycling.

Evidence-to-decision table

EvidenceLikely directionNext check
Pressure oscillates rapidly between setpoints under steady demandNarrow band or low storageSetpoints and receiver availability
Compressor cycles with pressure signal noiseSensor issuePressure transmitter and wiring
Load periods shorten as leaks increaseSystem leakageLeak survey and drains
Cycling matches bag-filter/conveying eventsIntermittent demandDemand sequencing/local storage
Two compressors alternate rapidlyLead/lag sequencing conflictSetpoints and central control

Interpret the pressure-cycle shape

Pressure rises very quickly while loaded and falls very quickly after unload: usable receiver storage is small, isolated or poorly connected relative to compressor capacity and demand. Pressure falls at a steady rate even during low production: quantify system leakage and drain losses. Pressure signal jumps/noises around the switching points: verify the pressure sensor, impulse connection and controller input. Two compressors repeatedly alternate load/unload: review lead/lag sequencing and overlapping setpoints.

Do not assume the physical receiver nameplate volume equals usable storage. A closed valve, restrictive connection, water accumulation or receiver located behind a pressure-drop element can reduce the buffering actually seen at the compressor control point.

Return-to-service acceptance criteria

Verify the compressed-air system over a representative production cycle:

  1. Trend header pressure and load/unload state through normal steady demand and major intermittent events.
  2. Confirm the pressure band remains inside the approved process/OEM range without rapid hunting.
  3. Verify intended receiver storage is available and connected.
  4. Confirm major leaks and failed drains are controlled.
  5. Check that lead/lag compressors sequence predictably instead of loading against each other.
  6. Record the stabilized cycle pattern and setpoints as the new control baseline.

The target is stable pressure and appropriate compressor duty—not simply the fewest possible transitions. Use the compressor/OEM control strategy and actual plant air demand to define acceptable cycling.

Common mistakes and repeat-failure traps

  • Widening the pressure band blindly: process users may not tolerate the larger pressure swing.
  • Adding receiver volume before checking valves/leaks: existing storage may simply be isolated or continuously leaking through drains/users.
  • Changing multiple compressor setpoints independently: overlapping bands can make units fight each other.
  • Ignoring the pressure sensor: noisy or drifting feedback can create false cycling.
  • Judging during a quiet period: the real failure may only appear during conveying, pulsing, aeration or packing demand.
  • Assuming the compressor is too small: an oversized fixed-speed machine can also short-cycle when demand is far below its capacity.
