Quick answer

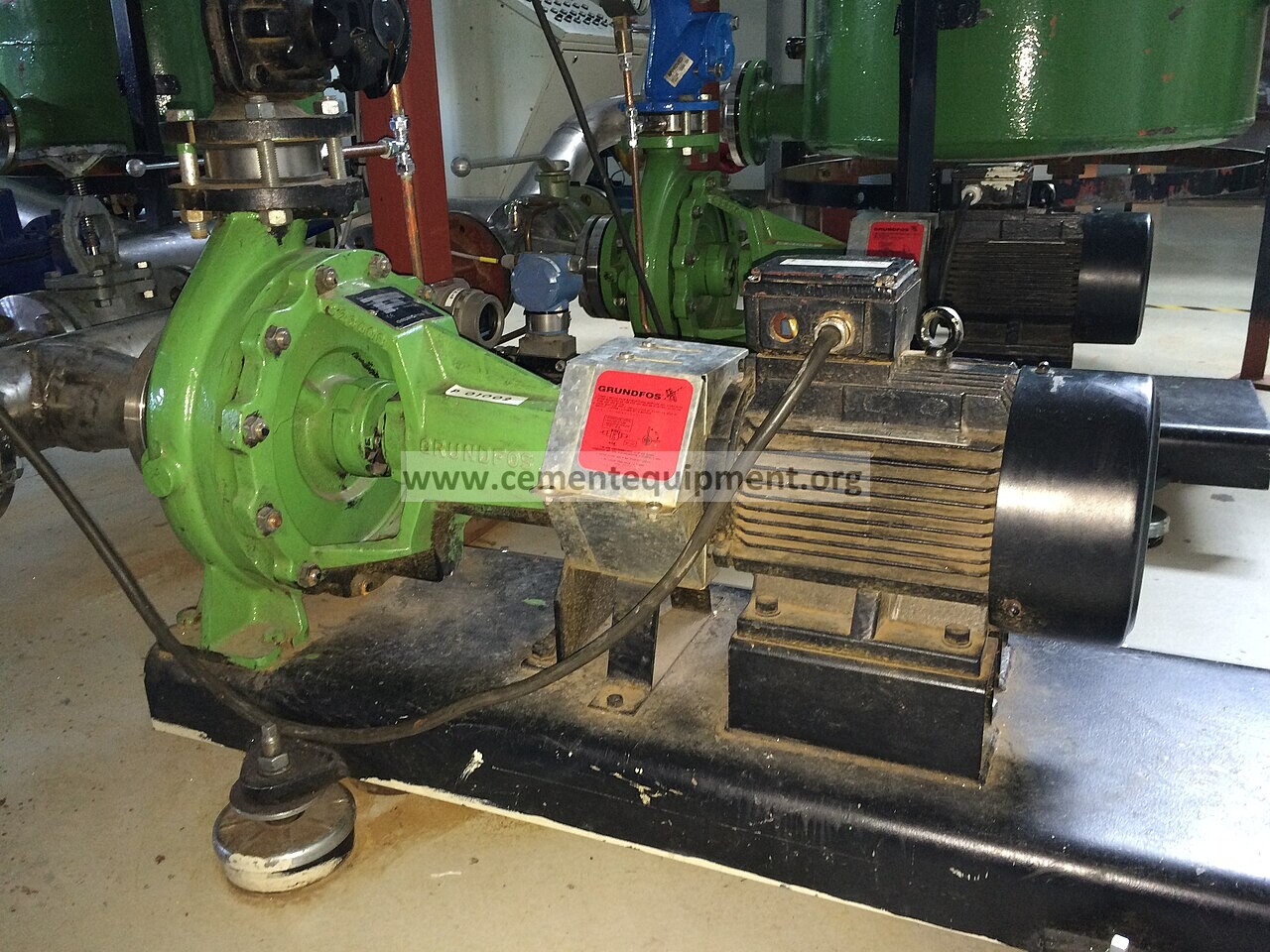

If a cooling-water pump begins cavitating after strainer cleaning, suspect a reassembly or suction-side issue before blaming the pump. Check strainer basket orientation, gasket/seal integrity, isolation-valve position, trapped air, suction pressure, tank level, pump priming and whether debris shifted downstream. Cavitation after maintenance often comes from suction restriction or air ingress introduced during the intervention.
Problem / job
The pump becomes noisy, vibration rises, discharge pressure/flow becomes unstable or the pump sounds like gravel immediately after strainer service.
Evidence
Capture suction and discharge pressure, flow, tank level, pump current, vibration/noise, valve positions and the exact strainer work performed.
Decision
Separate suction restriction and air ingress from low source level, poor priming, incorrect valve lineup and unrelated pump damage.
As-found evidence capture
Record pump suction/discharge pressure and flow before disturbing anything else. Note whether cavitation starts immediately on startup or after several minutes. Check tank/basin level and confirm all valves returned to their intended position after strainer work.
Review the strainer-cleaning steps: basket removal, gasket replacement, drain opening, venting, and whether the pump suction line was allowed to empty. This intervention history often contains the root cause.
Immediate checks after strainer maintenance
- Verify suction isolation and any bypass valves returned to the intended operating position.
- Confirm the strainer basket is correctly oriented, fully seated and not deformed.
- Inspect the cover gasket/O-ring and disturbed flanges for air ingress.
- Vent the pump casing and suction high points using the approved system procedure.
- Record suction pressure at or close to the pump inlet, not only discharge pressure.
- Check basin/tank level, water temperature and whether the pump has adequate submergence.
- Compare the cleaned strainer differential pressure with the normal clean baseline.
- Check whether debris was displaced downstream toward the pump inlet during cleaning.
Stop/go decision: if the symptom began immediately after the intervention, prove the strainer/valve/air path first. Do not dismantle the pump before showing that the suction system can actually supply it.
Seven-step diagnostic workflow
1. Verify suction valve lineup
Confirm suction isolation valves are fully open as intended and no temporary bypass or maintenance valve remains in the wrong position. A partially closed suction valve can cause immediate cavitation.
2. Check strainer reassembly
Inspect basket orientation, seating, gasket condition and cover installation under proper isolation. A displaced basket or gasket can restrict flow or admit air.
3. Remove trapped air and verify priming
If the suction line or pump casing drained during maintenance, restore prime using the pump/system procedure. Trapped air can cause unstable suction and noise even with a clean strainer.
4. Check suction pressure and source level
Low basin/tank level or higher fluid temperature can reduce available NPSH. Compare current source conditions with the healthy baseline.
5. Check for suction-side air ingress
Inspect flanges, covers, seals and instrument connections disturbed during cleaning. Air can enter through a small leak even when no water leaks outward.
6. Check for shifted debris or downstream restriction
Debris dislodged during cleaning can move into the suction line or pump inlet. If suction pressure remains abnormal after correct reassembly, inspect the path according to plant isolation procedures.
7. Prove stable pump operation
After correction, run the pump at representative cooling-water demand. Confirm stable suction/discharge pressure, normal flow, reduced vibration/noise and normal motor current.
Evidence-to-decision table
| Evidence | Likely direction | Next check |
|---|---|---|
| Cavitation began immediately after strainer work | Reassembly/valve/air issue | Basket, gasket, valves, priming |
| Low suction pressure with normal source level | Suction restriction | Strainer, valve and line |
| Unstable suction with bubbles/air evidence | Air ingress | Cover, flange, seals, priming |
| Problem worsens as source level falls | NPSH/source condition | Level and operating envelope |
| Suction normal but vibration remains high | Pump/mechanical issue | Impeller, bearings and alignment |
Differentiate true cavitation from air entrainment
Both conditions can create unstable flow and noise, but the corrective path differs. True cavitation is driven by insufficient pressure margin at the impeller eye relative to the liquid vapor pressure. Air entrainment introduces gas into the suction stream through an unsealed cover, loose flange, vortex, low submergence or incomplete priming. A freshly opened strainer housing is therefore a strong diagnostic clue: a poor cover seal or trapped air can mimic classic cavitation even when the pump curve and source level are otherwise acceptable.
Compare the actual operating point with the pump curve and the manufacturer’s NPSH requirement. If the suction pressure is normal and the system has adequate margin, consider operation far from the preferred flow range, internal recirculation, pump damage or a different mechanical source of noise instead of forcing an NPSH explanation.
Return-to-service acceptance criteria
Verify recovery under representative cooling-water demand:
- Record stable suction and discharge pressures after the system is fully vented.
- Confirm flow meets the process requirement without gravel-like noise or unstable pressure.
- Trend pump vibration and motor current against the healthy baseline.
- Verify basin/tank level and water temperature remain inside the intended operating envelope.
- Recheck the strainer cover, gasket and disturbed suction joints for air ingress.
- Document the final valve lineup, priming/venting condition and clean-strainer differential-pressure baseline.
Final acceptance should also respect the pump manufacturer’s NPSH margin and preferred operating range at the actual water temperature and flow.
Common mistakes and repeat-failure traps
- Throttling the suction valve to change the noise: this reduces available suction head and can make cavitation worse.
- Assuming a cleaned strainer is automatically low restriction: a mis-seated basket, gasket or valve can create a new suction loss.
- Ignoring trapped air: a drained suction line or opened strainer housing may need proper venting/priming before the pump can operate normally.
- Looking only at discharge pressure: suction pressure and source conditions are critical to the diagnosis.
- Opening the pump first: when the symptom begins immediately after strainer service, prove the altered suction system before dismantling the machine.
- Using a generic suction-pressure target: use the actual pump curve, water temperature, NPSH requirement and system geometry.
