Rotary Kiln Burner Alignment Procedure: A Comprehensive Guide

Proper burner alignment ensures a stable, centered flame, uniform heat distribution, and optimal kiln efficiency. Align the burner tip within ±5 mm of the kiln axis, set the flame angle between 0° and 5°, and maintain an axial gap of 20‑30 mm after the kiln reaches operating temperature.

When a kiln flame wanders off‑center, the clinker quality drops, fuel consumption spikes, and the refractory lining endures premature wear. Misalignment is rarely a single‑point failure; it is the cumulative result of thermal growth, foundation settlement, wear of burner mounts, and installation tolerances. Understanding the underlying mechanisms helps engineers diagnose the root cause quickly and apply a systematic alignment method that prevents recurring drift.

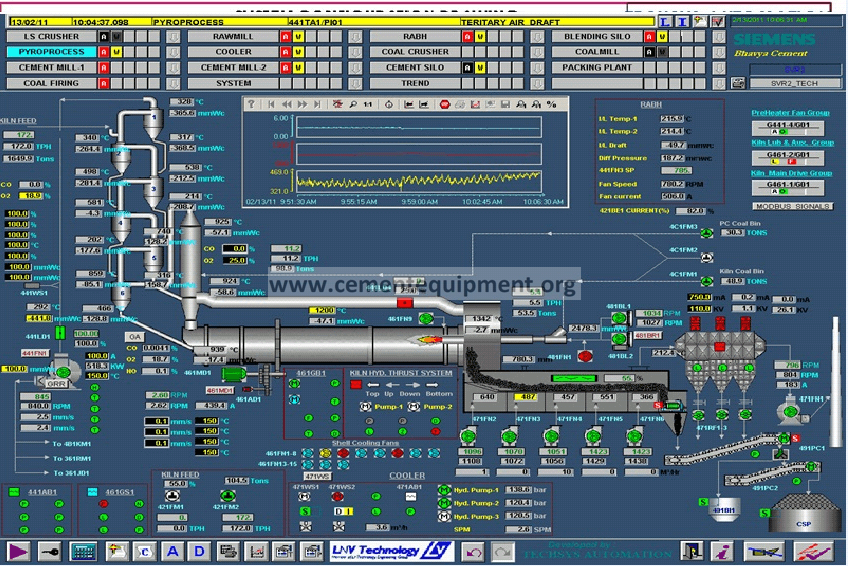

Mechanism and Root Causes of Burner Misalignment

Rotary kiln burners are mounted on a steel housing that expands with temperature. Typical carbon‑steel expands about 0.12 mm per 100 °C, not the 12 mm sometimes quoted. In a 2 m‑long burner housing, a temperature rise from ambient (20 °C) to 800 °C produces roughly 1.5 mm of axial growth. If the mounting brackets are fixed to a concrete foundation that does not expand equally, the burner tip can shift laterally or axially.

Additional contributors include:

• Foundation settlement: Differential settlement of the kiln base can tilt the burner support, creating a systematic offset.
• Wear of adjustment bolts and bushings: Repeated heating‑cooling cycles loosen bolts, allowing micro‑movement.
• Fuel composition changes: Higher calorific value fuels produce hotter flames that expand the burner housing more rapidly.
• Improper initial installation: If the burner is set without reference to the kiln axis, the built‑in error propagates as the kiln warms.

These factors alter three critical geometric parameters that define flame stability:

• Tip offset – lateral distance between the burner tip centreline and the kiln axis.
• Flame angle – deviation of the flame centreline from the kiln axis in the vertical plane.
• Axial gap – distance from the burner tip to the kiln shell measured along the axis.

Typical Alignment Parameter Ranges

Step‑by‑Step Practical Alignment Procedure

Follow this diagnostic loop each time the kiln is taken offline for maintenance or after a significant fuel change.

1. Safety first: Isolate the burner gas supply, lock‑out/tag‑out the electrical controls, and verify that the kiln is at ambient temperature (< 30 °C). Use personal protective equipment (heat‑resistant gloves, safety glasses, hearing protection).
2. Gather tools: Laser alignment system or theodolite, digital dial indicator, calibrated steel ruler, torque wrench (range 10‑30 Nm), and a portable infrared thermometer.
3. Establish the kiln axis reference: Place the laser line on the kiln inlet flange and project it onto the kiln shell. Mark the line on the shell at the burner mounting height; this is the true axis.
4. Measure cold tip offset: With the burner removed from service, use the dial indicator on a fixed stand to read the lateral distance between the burner tip centre and the axis line. Record the value.
5. Adjust lateral position: Loosen the lateral adjustment bolts in increments of 0.5 mm, shift the burner housing until the tip offset is ≤ 5 mm, then retighten bolts to the manufacturer‑specified torque (usually 20 Nm).
6. Set flame angle (cold check): Mount a temporary sight‑glass or use the laser to project a vertical line from the tip. Adjust the tilt bolts so the projected line deviates no more than 5° from the kiln axis.
7. Check axial gap (cold): Measure the distance from the tip face to the inner shell using the steel ruler. Adjust the axial shims or the burner support height to achieve 20‑30 mm.
8. Warm‑up verification: Fire the burner at low load (≈ 30 % of design) and let the kiln reach at least 400 °C. Re‑measure the axial gap with the infrared thermometer to confirm the expected thermal growth (≈ 0.12 mm/100 °C). The hot gap should fall within the 22‑32 mm window.
9. Flame pattern inspection: Observe the flame on the kiln shell. A centered, conical flame with a uniform luminous zone indicates correct alignment. Look for “hot spots” or “cold streaks” that suggest residual offset.
10. Document and lock: Record all measurements, bolt torques, and any shim dimensions used. Apply lock‑wire or safety pins to prevent accidental loosening during operation.
11. Post‑run audit: After a full production run (≥ 8 h), repeat the hot‑gap measurement and flame‑pattern check. If drift exceeds 2 mm, repeat the adjustment cycle.

Frequently Asked Questions

Why does the flame drift after the kiln reaches full temperature?

Thermal expansion of the burner housing and the kiln shell occurs at different rates. Steel expands about 0.12 mm per 100 °C, while the concrete foundation expands far less. If the initial cold alignment does not account for this differential growth, the tip will shift, causing the flame to drift upward or sideways.

Can I use a simple plumb line instead of a laser for axis reference?

A plumb line provides a vertical reference but cannot guarantee lateral alignment with the kiln axis, especially on large diameters. Laser or theodolite systems give a straight line that can be projected onto the shell, ensuring both vertical and horizontal accuracy within a few millimetres.

How often should burner alignment be inspected?

Best practice is to inspect alignment during every major shutdown (typically every 6‑12 months) and after any significant fuel change, burner replacement, or foundation repair. A quick visual check of the flame pattern should be performed weekly; any abnormal pattern warrants a full alignment verification.

What impact does misalignment have on specific heat consumption (SHC)?

When the flame is off‑center, heat transfer to the clinker bed becomes uneven, forcing the kiln to run at higher excess air to maintain temperature. This raises the specific heat consumption, often by 2‑5 % for a 5 mm tip offset, directly affecting fuel costs and CO₂ emissions.

Is it necessary to recalibrate the burner after switching from coal to a high‑calorific gas?

Yes. Gas flames are typically hotter and have a higher flame speed, which increases the thermal growth of the burner housing. Re‑checking the axial gap and flame angle after the first hot‑run with the new fuel ensures the alignment remains within the specified hot‑gap window.

What are the signs of a worn adjustment bolt that could cause misalignment?

Symptoms include difficulty achieving the target offset, persistent drift after tightening, and visible thread wear or elongation. Replacing the bolt and its bushings restores the precise adjustment range and prevents recurring misalignment.
