Quick answer
Uneven load on a reclaimer scraper chain that results in repeated link failure is most often caused by mis‑alignment, improper tension, worn wear plates, or a combination of these factors. Verify chain alignment, tension, and wear‑plate condition against the equipment OEM’s specifications. Replace damaged links, re‑tension the chain to the OEM‑approved value, and correct any mis‑alignment before restarting the unit. Perform a functional test and monitor the chain for at least one full production cycle to confirm that the load is now evenly distributed.

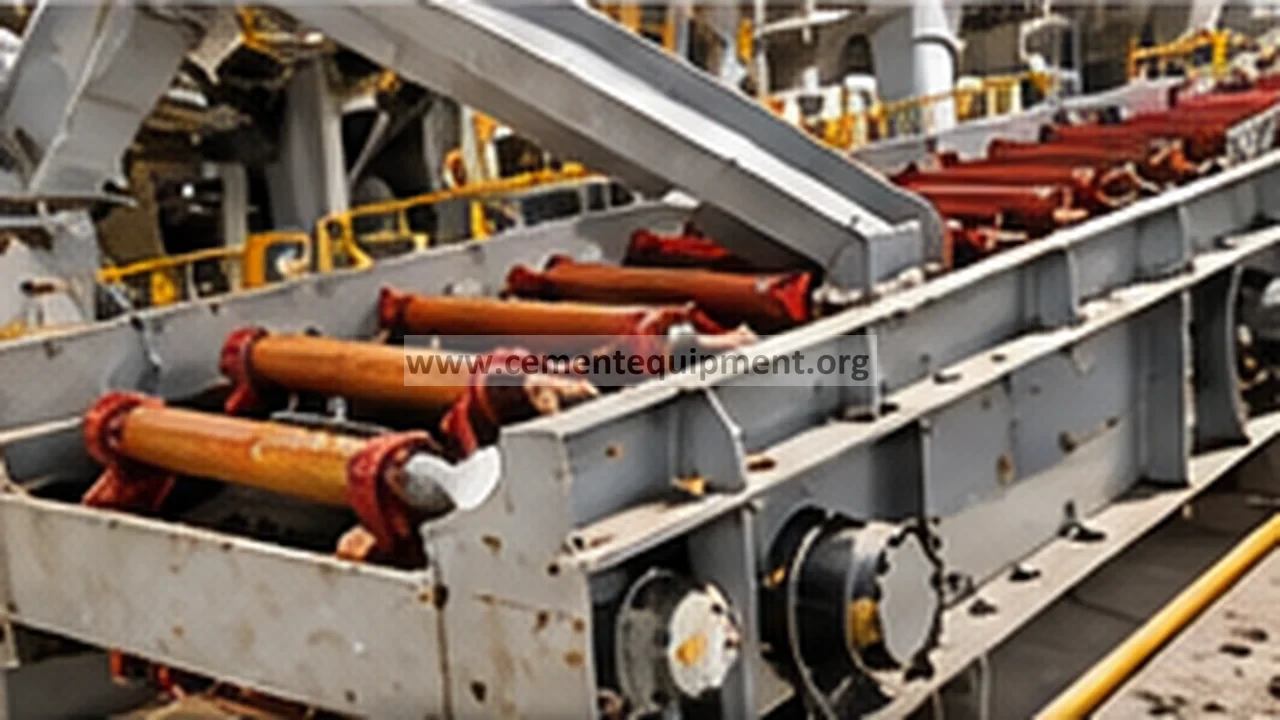

Problem / job
The reclaimer’s scraper chain is experiencing uneven loading across its links, leading to frequent link breakage. The plant requires a systematic diagnostic approach that identifies root causes, prescribes corrective actions, and validates that the chain will operate reliably under normal production loads.
Evidence
- Visual inspection shows a pattern of broken links on the same side of the chain.
- Vibration analysis indicates higher amplitude on the drive side of the chain.
- Chain tension gauge readings vary by more than the OEM‑recommended tolerance.
- Wear plates on the scraper bar exhibit uneven wear depth.
- Lubrication records show irregular application intervals.
Decision
Proceed with a step‑by‑step diagnostic workflow that isolates the chain, checks alignment, tension, wear‑plate condition, and lubrication practice, then implements corrective measures. Acceptance is based on verified alignment, tension within OEM limits, and a successful functional test without further link failure.
Workflow – 7 practical steps
-
Secure the reclaimer and implement LOTO.
Lock out the main power, isolate hydraulic pressure, and verify zero‑energy state before any physical access. Use a written LOTO permit that references the specific circuit breaker and hydraulic valve.
-
Document the current condition.
Photograph the chain, wear plates, tensioning devices, and surrounding structure. Record tension gauge readings at the three OEM‑specified points and note any deviation from the recommended range.
-
Inspect alignment of the chain path.
Use a straight‑edge or laser alignment tool to check that the chain runs parallel to the guide rollers and that the sprocket centers are true. Any lateral offset greater than the OEM tolerance should be corrected.
-
Examine wear plates and scraper bar.
Remove the wear plates and measure wear depth at the leading, middle, and trailing positions. Uneven wear indicates localized overload and should be addressed by resurfacing or replacing the plates.
-
Check tensioning mechanism.
Release the tensioner, clean the contact surfaces, and re‑apply tension according to the OEM’s torque or tension value. Verify the final tension at the prescribed measurement points.
-
Assess lubrication practice.
Confirm that the lubrication schedule matches the OEM recommendation, that the correct lubricant type is used, and that delivery points are free of blockage. Apply a fresh dose if the last application exceeds the recommended interval.
-
Run a controlled functional test.
Remove LOTO, start the reclaimer at low speed, and observe chain behavior for at least one full cycle of loading and unloading. Use vibration sensors and visual observation to confirm even load distribution. If any abnormality appears, stop the unit, re‑apply LOTO, and repeat the relevant step.
Diagnostic matrix
| Evidence observed | Likely direction of root cause | Next check / corrective action |
|---|---|---|
| Broken links on one side of the chain | Mis‑alignment causing side loading | Measure lateral offset of chain path; realign guide rollers and sprockets. |
| Chain tension gauge varies beyond tolerance | Improper tension – either over‑tightened or slack | Reset tensioner to OEM‑specified value; re‑measure at all points. |
| Uneven wear depth on wear plates | Localized overload from worn plate or scraper bar | Resurface or replace wear plates; inspect scraper bar for distortion. |
| Higher vibration amplitude on drive side | Potential imbalance in chain tension or sprocket wear | Inspect drive sprocket teeth for wear; verify tension symmetry. |
| Irregular lubrication intervals | Insufficient lubrication leading to increased friction | Re‑establish lubrication schedule; verify lubricant type and flow. |
| Visible corrosion or damage on chain links | Environmental degradation reducing link strength | Replace corroded links; consider protective coating per OEM guidance. |
| Chain rubbing against housing | Improper chain guide clearance | Adjust guide brackets to meet OEM clearance specifications. |
Acceptance criteria
- Chain alignment is within the OEM‑specified lateral tolerance measured at all guide points.
- Chain tension at each OEM‑designated measurement location falls within the OEM‑approved range after tensioning.
- Wear plates exhibit uniform wear depth not exceeding the OEM‑defined maximum wear limit.
- Lubrication records show that the correct lubricant has been applied within the recommended interval for the operating hours logged.
- During a functional test of at least one full production cycle, no new link failures are observed and vibration levels remain within the baseline established for normal operation.
- All LOTO permits are closed only after confirming that the chain operates without abnormal noise, heat, or visual signs of distress.
Common mistakes and repeat‑failure traps
- Assuming tension is the only issue. Over‑focusing on tension without checking alignment often leads to repeated failures because side loading persists.
- Skipping wear‑plate inspection. Replacing links while ignoring worn plates allows the same overload pattern to re‑emerge.
- Using generic lubricants. Applying a lubricant not approved for the specific chain material can reduce film strength and accelerate wear.
- Neglecting LOTO compliance. Performing adjustments with power still connected creates a high‑risk environment and can cause inadvertent damage to the chain or surrounding components.
- Re‑tightening without cleaning. Dirt or corrosion on tensioner bolts can produce false tension readings, leading to over‑ or under‑tension.
- Ignoring vibration data. Small but consistent vibration spikes are early indicators of mis‑alignment; dismissing them delays corrective action.
- Replacing only the broken link. If the failure pattern is systemic, a single link replacement masks the underlying cause and sets the stage for another break.
