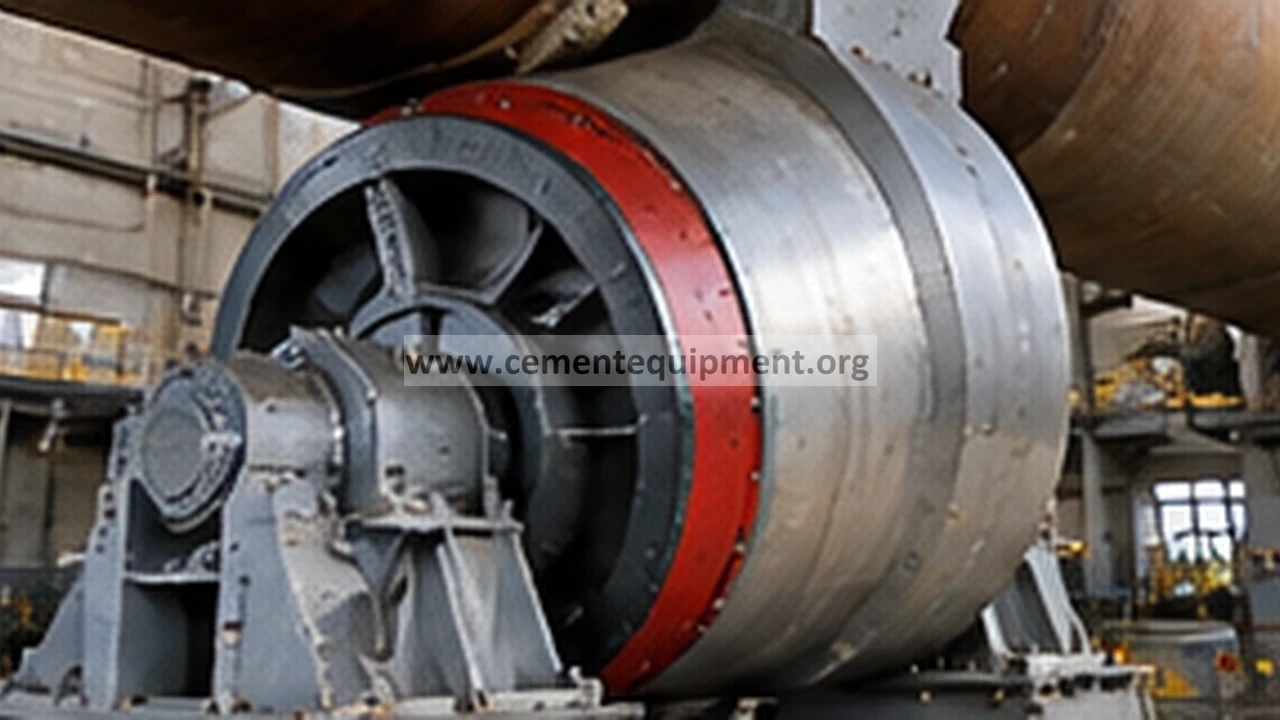

Quick answer
If kiln thrust contact alternates repeatedly from one side to the other, the kiln is moving axially through a changing force balance rather than holding a stable axial position. Diagnose shell/tyre thermal condition, support-roller skew, tyre/roller contact, hydraulic or mechanical thrust device behavior, kiln speed/load and the timing of the reversals. Occasional controlled axial migration may be normal for some designs, but rapid or increasing alternation can indicate unstable roller thrust or alignment.
Problem / job
Thrust contact transfers between uphill and downhill sides more often or more abruptly than the established kiln baseline.
Evidence
Capture kiln axial position, thrust-roller contact, support-roller temperatures/skew indicators, tyre contact, shell temperature, speed and production load.
Decision
Separate normal axial migration from unstable support-roller thrust, thermal geometry change, tyre behavior and thrust-device control faults.
As-found evidence capture
Record when contact changes side and how long the kiln remains against each thrust face. Trend axial position through startup, heating and stable production. Note kiln speed, feed rate and shell/tyre temperatures. Compare the pattern with historical normal operation.
Observe support rollers for signs of changed axial thrust such as contact marks, surface temperature differences or recent skew adjustments. Review any alignment work before the alternating-contact behavior began.
Seven-step diagnostic workflow
1. Confirm the axial movement is real
Verify position switches, displacement transmitters or operator observations. A faulty switch can create apparent alternating contact without real kiln movement.
2. Correlate with the thermal cycle
Tyre, shell and support geometry change as the kiln heats. If alternation occurs only during warm-up and settles later, compare with the established startup baseline before making alignment changes.
3. Assess thrust-roller surfaces and mechanism safely
During authorized kiln operation, assess contact behavior, bearing temperature, lubrication status and hydraulic/mechanical thrust-device response only through approved remote instrumentation, installed cameras and non-intrusive observations from outside moving-equipment exclusion zones. Do not approach, touch, mark, measure or adjust rotating kiln components. Inspect surfaces, bearings, lubrication hardware or thrust-device mechanisms physically only after shutdown, control of stored mechanical, hydraulic and thermal energy, and verified lockout/tagout under plant and OEM procedures. A sticking or poorly controlled thrust device can release and recontact cyclically.
4. Review support-roller skew and recent adjustments
Support rollers generate axial thrust according to their geometry and contact. Unequal or opposing thrust contributions can make the kiln hunt axially. Review actual adjustment records rather than relying on assumed positions.
5. Check tyre/roller contact and shell condition
Uneven tyre contact, runout or shell distortion can change axial force through a revolution or thermal cycle. Compare contact and temperature trends across piers using approved remote or non-intrusive operating observations. Defer hands-on tyre, roller and shell inspections until shutdown, stored-energy control and verified lockout/tagout under plant and OEM procedures.
6. Correlate with production load and speed
If axial reversals coincide with process load changes or speed changes, determine whether the mechanical system is responding to a load-dependent geometry or friction shift.
7. Prove stable axial behavior after correction
After justified mechanical or control correction, trend the kiln through a representative thermal cycle. Confirm axial position remains within the approved operating band and thrust contact behavior matches the kiln/OEM philosophy.
Evidence-to-decision table
| Evidence | Likely direction | Next check |
|---|---|---|
| Alternation only during warm-up | Thermal geometry effect | Compare with normal thermal cycle |
| Alternation began after roller adjustment | Skew/thrust balance issue | Adjustment records and roller contact |
| Position signal alternates but physical contact does not | Instrumentation issue | Switch/transmitter verification |
| Hydraulic thrust pressure cycles with contact | Thrust-device control issue | Hydraulic/control system |
| Axial reversal links to one revolution/tyre condition | Geometry/runout/contact issue | Tyre, shell and roller inspection |
Field inspection checklist before any roller adjustment
- Trend kiln axial position through cold start, warm-up and stable production.
- Record which thrust face is carrying load and whether the contact transfer is abrupt or gradual.
- Compare support-roller and thrust-bearing temperatures across all piers.
- Assess tyre position and visible contact patterns from approved remote cameras, installed instrumentation or existing inspection records while the kiln operates; perform any hands-on tyre/roller inspection only after shutdown, stored-energy control and verified lockout/tagout under site and OEM procedures.
- Review support-roller skew/adjustment history, bearing position and any recent base-plate work.
- Check hydraulic or mechanical thrust-device position, pressure trend and freedom of movement.
- Assess tyre/roller wear, facets, polishing and uneven contact using authorized remote evidence while running; perform any hands-on surface inspection only after shutdown and verified hazardous-energy isolation and lockout/tagout.
- Correlate reversals with kiln speed, feed load, shell temperature and one-revolution geometry effects.
Stop/go decision: do not move a support roller merely to stop alternating contact. First prove whether the axial movement is a normal thermal migration, an instrumentation issue, a thrust-device control problem or a real support-roller thrust imbalance. Kiln inspections typically assess support-roller/tyre profiles, bearing and thrust-bearing temperatures, thrust-device condition and position, bearing position, base-plate geometry and tyre position together because these variables interact.
How to distinguish thermal migration from unstable mechanical thrust
A thermal-cycle pattern usually changes predictably as the shell, tyres and supports heat and then settles toward the plant’s established hot-running position. A mechanical-thrust problem is more suspect when the contact transfer continues after stable temperature is reached, starts after a roller adjustment or resurfacing job, coincides with abnormal bearing-temperature differences, or follows a repeating geometry pattern at one tyre or pier.
If a hydraulic thrust device is fitted, compare its pressure and position trend with the contact transfer. Cycling pressure that consistently precedes the reversal points toward the thrust system or its control logic. If the thrust device reacts only after the kiln has already moved, investigate the support-roller force balance and tyre/roller geometry first. Where resurfacing or grinding has been performed, remember that changed roller/tyre surface geometry can change thrust characteristics and may require controlled readjustment based on measured kiln position rather than visual judgement alone.
Return-to-service acceptance criteria
Do not close the job on one short observation. Verify the repaired or adjusted kiln through a representative thermal and production cycle:
- Record axial position from warm-up into stable production.
- Confirm thrust-contact transfers, if any, match the kiln/OEM operating philosophy rather than occurring as uncontrolled hunting.
- Trend support-roller and thrust-bearing temperatures and confirm no new phase/pier develops abnormal heating.
- Confirm hydraulic/mechanical thrust-device position and load remain stable without repeated corrective cycling.
- After the run, inspect tyre/roller contact and surface condition for new edge loading, polishing or distress only after shutdown, stored-energy control and verified lockout/tagout under plant and OEM procedures.
- Document every roller or thrust-device adjustment so the next inspection has a traceable mechanical baseline.
Final limits for axial travel, bearing temperature, thrust-device load and roller position must come from the installed kiln manufacturer, alignment report and plant-approved procedure rather than generic universal values.
Common mistakes and repeat-failure traps
- Moving support rollers because the thrust face changed: first determine whether the movement is normal thermal migration or a real force-balance problem.
- Ignoring the hot-running baseline: cold and warm-up positions are not directly comparable with stable-production geometry.
- Trusting one limit switch: verify real axial movement from position evidence and physical contact before adjusting hardware.
- Forcing permanent contact: some kiln designs intentionally permit controlled axial migration; follow the OEM thrust philosophy.
- Adjusting several rollers together: multiple simultaneous changes destroy the evidence needed to identify which adjustment changed the axial force balance.
- Skipping post-adjustment trending: record bearing temperature, thrust-device position and axial travel through a full representative thermal cycle after every justified change.
