Quick answer
If cooling-tower approach temperature becomes worse after cleaning, assume something changed in water or air distribution during maintenance until proven otherwise. Compare hot-water temperature, cold-water temperature, ambient wet-bulb, fan status/speed, water flow, nozzle distribution, fill condition, basin level and bypass-valve position. A visibly cleaner tower can still cool worse if nozzles were misaligned, fill was reinstalled poorly, a fan rotates incorrectly, louvers are obstructed or flow bypasses the fill.
Problem / job
Cold-water temperature rises relative to ambient wet-bulb after tower cleaning, reducing cooling performance across the plant.
Evidence
Capture hot/cold water temperatures, wet-bulb, circulation flow, fan current/speed, nozzle pattern, basin level and maintenance changes.
Decision
Separate measurement/ambient effects from poor air flow, poor water distribution, bypassing, fill problems and reduced circulation.
As-found evidence capture
Calculate approach as cold-water temperature minus ambient wet-bulb using reliable instruments. Compare with a healthy period at similar load rather than comparing only cold-water temperature. Record fan status, circulation-pump condition and any nozzle, fill, louver or basin work completed during cleaning.
Post-cleaning evidence checklist
- Confirm cold-water and hot-water temperature instruments against a reliable reference.
- Measure entering-air wet-bulb near the tower intake, not only a distant weather value.
- Compare approach at similar process load and circulation flow.
- Verify fan rotation direction, speed, blade condition and motor current cell by cell.
- Inspect nozzle coverage and look for dry fill zones, channeling or headers/nozzles disturbed during cleaning.
- Check fill packs are seated/oriented correctly with no bypass gaps or collapsed sections.
- Confirm circulation pump condition, valve lineup and that any maintenance bypass is fully returned to service position.
- Check louvers, drift eliminators and air paths for blockage introduced or left after maintenance.
Stop/go decision: if the apparent approach change disappears after measurement verification, do not mechanically adjust the tower. If the approach remains worse with comparable load/flow and accurate wet-bulb, continue into airflow and water-distribution checks before altering fan pitch or speed.
Seven-step diagnostic workflow
1. Verify temperatures and wet-bulb
Incorrect ambient or water temperature measurement can create a false approach change. Verify sensor location and calibration before mechanical adjustment.

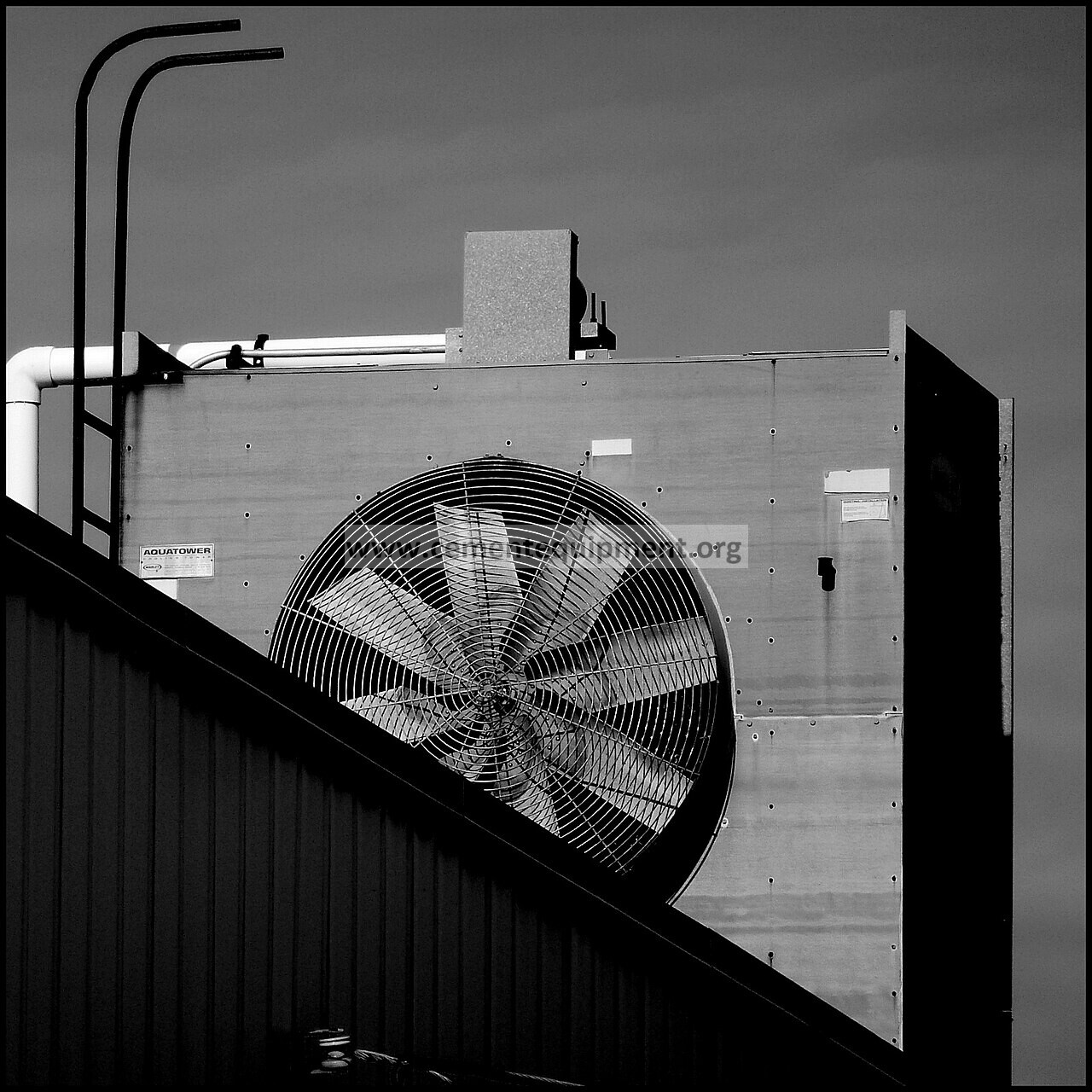

2. Check fan direction and airflow
After electrical or mechanical work, verify each fan runs in the intended direction and at the expected speed. Inspect louvers/screens for blockage and compare fan current.
3. Inspect water distribution
Observe nozzles and distribution headers. Missing, blocked, rotated or incorrectly reinstalled nozzles can create dry zones and water channels through only part of the fill.
4. Check fill placement and condition
Confirm cleaned or replaced fill is seated and oriented correctly with no collapsed sections or bypass gaps. Water bypassing the fill reduces evaporative contact area.
5. Verify circulation flow and valves
Check pump discharge, valve positions and any bypass line. Excessive or insufficient flow can change tower performance, and a maintenance bypass left open can short-circuit the tower.
6. Check basin level and air recirculation
Abnormal basin level can affect pump suction and distribution. Also inspect for hot moist exhaust recirculating into the fan inlet due to wind or damaged partitions.
7. Prove recovery using approach
After correction, trend hot/cold water and wet-bulb at representative plant load. Confirm approach returns toward the tower’s approved baseline.
Evidence-to-decision table
| Evidence | Likely direction | Next check |
|---|---|---|
| Dry fill zones after cleaning | Poor water distribution | Nozzles and headers |
| Fan current/speed changed | Airflow/fan issue | Direction, speed, blade setting |
| Good distribution but poor cooling | Air recirculation or load/ambient issue | Wet-bulb, louvers, exhaust recirculation |
| Cold water worsened with bypass valve open | Water short-circuit | Valve lineup |
| Only one cell underperforms | Cell-specific fan/nozzle/fill issue | Compare cells |
How to distinguish air-side and water-side loss
If all cells show worse approach and fan electrical data changed after maintenance, prioritize common airflow and control issues. If one cell alone underperforms, compare that cell’s fan, nozzle pattern, fill wetting and louvers against a healthy cell. If airflow appears normal but large dry zones are visible on the fill, investigate distribution headers/nozzles and valve lineup. If water distribution is uniform yet performance remains poor, verify actual heat load, circulation rate, wet-bulb and hot-air recirculation before assuming the fill itself is defective.
Use tower range (hot-water minus cold-water temperature) together with approach. A changed range can indicate that process heat load or water flow changed at the same time, making a before/after comparison invalid unless the operating point is normalized.
Return-to-service acceptance criteria
Verify the tower under comparable operating conditions rather than on one cold-water reading:
- Confirm temperature and wet-bulb measurements are reliable.
- Record hot water, cold water, entering-air wet-bulb, circulation flow and representative plant load together.
- Confirm approach and range trend toward the established design/healthy baseline.
- Verify each fan cell runs in the intended direction and speed range without abnormal vibration or current.
- Confirm nozzle coverage is uniform and the fill is fully wetted with no bypass gaps or dry lanes.
- Check valve lineup, pump condition, basin level and maintenance bypasses.
- Repeat the check across more than one stable operating period so wind/recirculation is not mistaken for a permanent tower fault.
Use the tower OEM/design curve for final performance acceptance because expected approach depends on wet-bulb, heat load, water flow and tower selection.
Common mistakes and repeat-failure traps
- Judging by cold-water temperature alone: a warmer day can raise cold-water temperature even when the tower is healthy.
- Ignoring wet-bulb: approach, not absolute outlet temperature, is the more useful performance indicator.
- Assuming cleaning guarantees improvement: disturbed nozzles, fill, fan wiring or valve lineup can make performance worse immediately after maintenance.
- Changing fan pitch/speed too early: first verify water distribution, valve lineup and actual airflow.
- Comparing different loads/flows directly: changes in heat load or circulation flow can change range and approach.
- Ignoring cell-to-cell comparison: one bad cell often reveals whether the fault is local or common to the whole tower.
