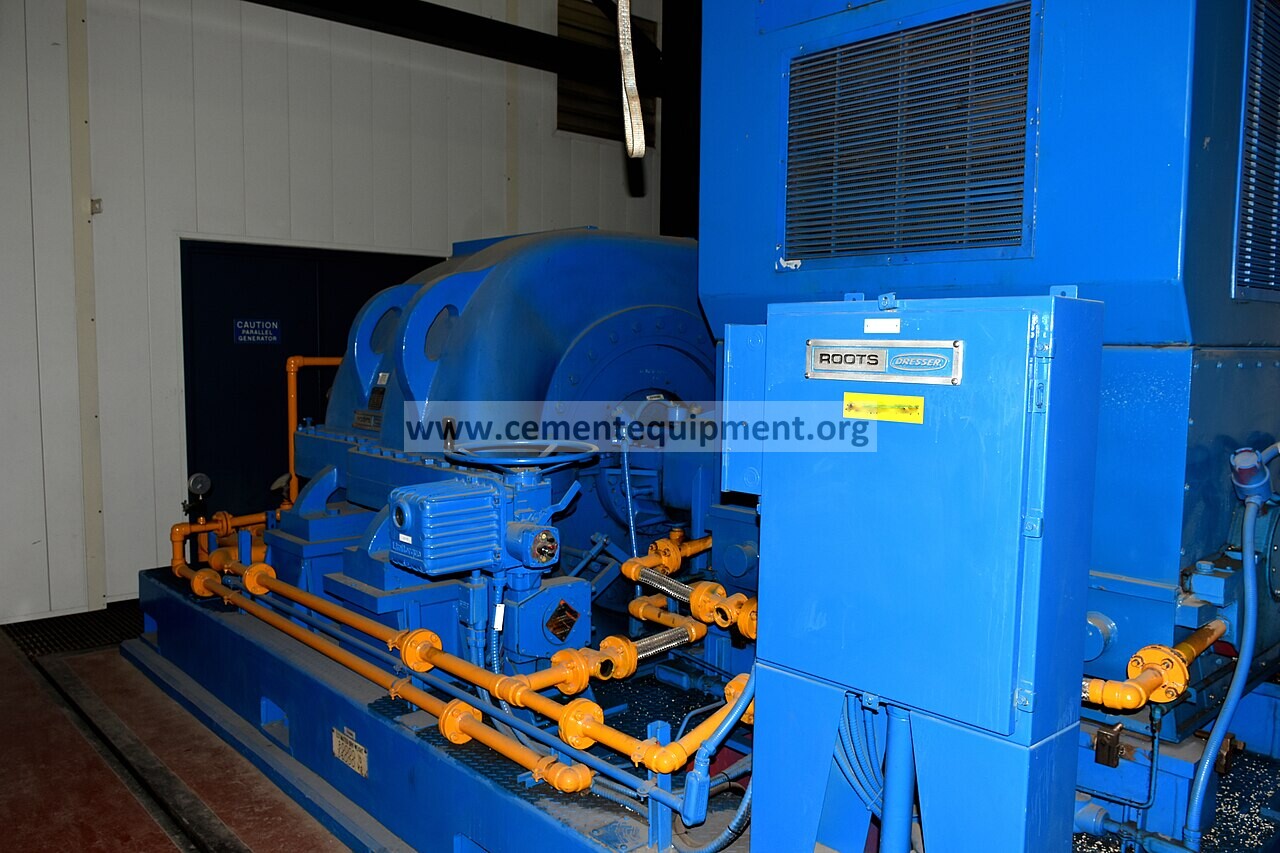

Quick answer
Undergrate pressure oscillation in a clinker cooler compartment is most often caused by restricted airflow, uneven grate loading, or malfunctioning pressure‑control valves. Verify isolation, inspect the affected compartment for blockage or uneven material distribution, confirm valve operation and sensor integrity, and then restore balanced airflow before restarting the cooler.
Problem / Job
The clinker cooler is reporting cyclic pressure spikes on the undergrate sensor of a single compartment. The spikes trigger alarms, cause automatic shutdowns, and reduce overall cooler efficiency. The task is to diagnose the root cause, implement corrective actions, and verify stable operation.
Evidence
Typical evidence includes:
- Pressure‑transmitter read‑outs showing oscillation between low and high values within seconds.
- Alarm logs indicating “Undergrate Pressure High” for the specific compartment.
- Thermocouple trends showing temperature spikes that correlate with pressure peaks.
- Visual inspection of the grate showing uneven clinker buildup or localized blockage.
- Control‑system diagnostics indicating valve chatter or sensor drift.
Decision
Proceed with a systematic, seven‑step workflow that isolates the compartment, validates instrumentation, checks airflow paths, and confirms mechanical integrity before returning the cooler to service. Acceptance is based on stable pressure readings for at least three consecutive production cycles and no repeat alarms.
Step‑by‑Step Diagnostic Workflow (7 steps)
- Secure the area and apply LOTO. Verify that the cooler compartment is isolated from the main gas flow. Lock out the undergrate pressure‑control valve and any associated actuators. Post a “Do Not Operate” tag and confirm that all personnel are aware of the lockout.
- Gather baseline data. Retrieve the last 24‑hour trend logs for pressure, temperature, and flow‑rate sensors for the affected compartment and its adjacent compartments. Note the amplitude, frequency, and duration of the oscillations.
- Inspect instrumentation. Visually examine the pressure transmitter, its wiring, and mounting. Perform a zero‑check and span verification according to the OEM calibration procedure. Replace or recalibrate if the sensor fails verification.
- Check valve operation. Manually actuate the undergrate pressure‑control valve (with LOTO still in place) to confirm smooth opening and closing. Observe for chatter, sticking, or delayed response. If the valve is pneumatic, verify air pressure and regulator settings; if electric, verify drive voltage and feedback signals.
- Examine airflow pathways. Remove the grate (after confirming lockout) and inspect for clinker buildup, foreign material, or damaged grate bars that could restrict flow. Use a calibrated airflow probe to measure velocity on both sides of the grate; compare with design values or OEM recommendations.
- Assess material distribution. Review recent production records for feed rate changes, clinker size distribution, or sudden temperature shifts that could cause uneven loading. If necessary, adjust feed chute alignment or modify the distribution system to achieve a more uniform spread.
- Re‑commission and verify. Remove LOTO only after all corrective actions are completed. Restart the cooler at low load, monitor pressure trends for at least three full cycles, and confirm that the oscillation has ceased. Document the findings and update the maintenance log.
Diagnostic Matrix
| Evidence | Likely Direction | Next Check |
|---|---|---|
| Pressure spikes coincide with temperature spikes | Restricted airflow causing localized overheating | Inspect grate for clinker blockage; measure airflow velocity |
| Pressure sensor fails zero‑check | Instrumentation fault | Calibrate or replace sensor; verify wiring continuity |
| Valve actuator cycles rapidly (chatter) | Control valve malfunction or improper air supply | Manually operate valve; check pneumatic pressure or drive voltage |
| Oscillation only in one compartment, adjacent compartments stable | Compartment‑specific blockage or mechanical defect | Remove grate for visual inspection; look for damaged bars or foreign objects |
| Recent increase in clinker feed rate or size | Uneven material loading causing pressure surge | Review feed distribution settings; adjust chute alignment |
| Control system logs show sensor signal loss | Intermittent wiring or connector issue | Inspect cable terminations; perform continuity test |
| Pressure oscillation persists after sensor replacement | Root cause external to sensor (e.g., airflow restriction) | Proceed to airflow and grate inspection steps |
Verification & Acceptance Criteria
Acceptance is achieved when all of the following conditions are met for the affected compartment and the overall cooler:
- Undergrate pressure readings remain within the normal operating band for at least three consecutive production cycles (duration defined by the plant’s standard cycle time).
- No “Undergrate Pressure High” or “Pressure Sensor Fault” alarms are logged during a minimum 4‑hour continuous run at normal load.
- Airflow velocity measured upstream and downstream of the grate matches the OEM‑specified range (verify against the OEM or site‑specific design data).
- All instrumentation (pressure transmitter, temperature sensors, valve position feedback) passes a functional test per the OEM calibration procedure.
- Physical inspection confirms that the grate is free of blockage, the bars are intact, and the material distribution system is operating as intended.
Document the final readings, calibration certificates, and any adjustments made. Sign‑off must be recorded by the responsible maintenance engineer and the process control supervisor.
Common Mistakes & Repeat‑Failure Traps
- Skipping LOTO. Attempting to adjust the valve or remove the grate while the system is energized can cause sudden pressure release and damage to equipment or personnel.
- Replacing the pressure sensor without confirming airflow. A new sensor will report the same oscillation if the underlying airflow restriction remains.
- Focusing only on the alarmed compartment. Pressure disturbances can propagate; failing to check adjacent compartments may miss a systemic issue.
- Ignoring recent process changes. Adjustments to feed rate, clinker size, or burner output are frequent triggers; overlooking them leads to repeated diagnostics.
- Over‑tightening valve actuators. Excessive spring preload can cause valve chatter, which mimics pressure oscillation.
- Inadequate documentation. Without clear records of sensor calibrations, valve settings, and inspection findings, the same fault can reappear after a shift change.
- Re‑starting the cooler before confirming stable airflow. Early restart can re‑induce pressure spikes, eroding confidence in the corrective action.
To break the cycle, follow the full workflow, verify each hypothesis with measurable data, and ensure that corrective actions are recorded and communicated to all shift personnel.
