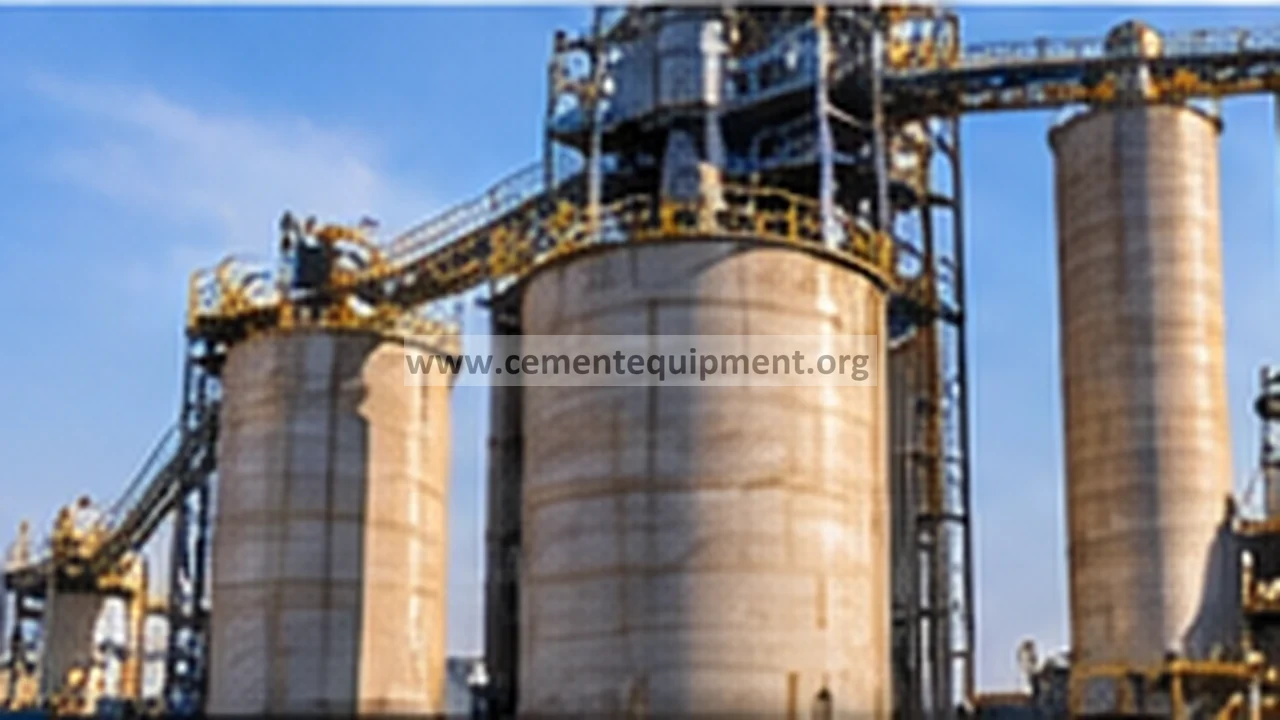

Raw meal silos and pneumatic conveying system in a cement plant

Cement Rotary Airlock Rotor Tip Wear Causing Air Leakage and Capacity Loss: Diagnostic Guide

Previous Post
Next Post

Cement Rotary Airlock Rotor Tip Wear Causing Air Leakage and Capacity Loss: Diagnostic Guide
Rotary airlock rotor wear and leakage diagnosis.

Quick answer

When a cement rotary airlock loses capacity while conveying air leakage rises, rotor-tip wear is a prime suspect, but it should not be blamed until housing wear, end clearance, rotor speed, product buildup, feeder differential pressure and upstream/downstream restrictions are checked. The useful diagnosis is based on measured leakage, clearances, throughput and pressure behavior before and after correction.

Problem / job

Reduced solids throughput, unstable pneumatic conveying, higher blower load or dust blowback around a rotary airlock.

Evidence

Capture feed rate, airlock speed, upstream and downstream pressure, motor current, temperature, rotor-tip clearance and visible wear pattern.

Decision

Separate normal wear from housing damage, product buildup, excessive differential pressure, incorrect speed or downstream restriction before replacing components.

What rotor-tip wear looks like in operation

Rotor-tip wear increases the leakage path between the rotating pockets and the stationary housing. In a cement plant this can reduce volumetric efficiency and allow more process air to migrate through the valve. Typical field observations include lower material transfer at the same rotor speed, increased air leakage, dust blowback toward the inlet, higher pneumatic-conveying instability, unusual temperature rise or more frequent plugging downstream. These symptoms are not exclusive to tip wear, so the diagnosis must be evidence based.

Before opening the valve, record a stable operating snapshot. Note product type, feed rate, rotor speed, motor current, upstream pressure, downstream pressure, conveying-air flow or blower load, and whether the problem changes with material moisture or fineness. Compare with a known-good historical condition where possible.

Seven-step diagnostic workflow

1. Confirm the capacity loss is real

Compare actual mass throughput over a fixed period with the historical rate at the same rotor speed and similar product condition. Do not diagnose from operator perception alone. If capacity is normal but conveying pressure has changed, the dominant problem may be elsewhere.

2. Measure the pressure differential across the airlock

Record pressure on both sides during steady operation. Higher differential pressure increases leakage demand through worn clearances and can magnify a wear problem that previously caused little disturbance. If the differential pressure has increased because of a downstream blockage, filter restriction or line problem, correct that cause first.

3. Inspect rotor tips and housing condition

After safe isolation and lockout, inspect rotor-tip edges, side plates, end clearances and the internal housing surface. Look for polished tracks, grooves, asymmetric wear, erosion, embedded foreign material and evidence that the rotor has contacted the housing. Measure clearances at several angular positions rather than one convenient point.

4. Check whether wear is uniform

Uniform clearance growth normally points toward long-term abrasive wear. Localized wear can indicate rotor eccentricity, bearing condition, shaft deflection, housing distortion, foreign-object damage or assembly error. A one-sided wear pattern should trigger alignment and bearing checks before new tips are installed.

5. Verify rotor speed and pocket filling

An airlock that runs too fast may not fill its pockets efficiently, while very low speed can allow excessive leakage per unit of material handled. Confirm the actual shaft speed, not only the drive command. Inspect the inlet for bridging, restricted feed or uneven material presentation that can imitate capacity loss.

6. Separate air leakage from downstream restriction

Check the conveying line, elbows, diverters, receiving vessel and filter. A restricted destination can raise backpressure and make a worn airlock appear to be the sole cause. Trend blower load and downstream pressure while changing feed in a controlled manner if the process permits.

7. Prove the repair with before-and-after data

After replacing or adjusting wear components according to the OEM procedure, repeat the same measurements taken before maintenance. Confirm improved throughput, lower unwanted leakage, stable pressure differential and acceptable motor current. One quiet test is not enough; observe a representative production period.

Evidence-to-decision table

EvidenceLikely directionNext check
Large, uniform rotor-tip clearance with normal bearingsAbrasive wearRepair or replace wear components to OEM limits
Clearance large on one side onlyAlignment, shaft, bearing or housing issueCheck runout, bearing condition and housing geometry
Normal clearance but poor throughputFeed restriction or incorrect speedInspect inlet flow and verify actual rotor rpm
High downstream pressure with rising blower loadConveying restrictionInspect line, elbows, diverter and receiver/filter
Capacity drops mainly with damp materialProduct buildup or poor pocket releaseInspect rotor pockets and inlet condition

Return-to-service acceptance criteria

Accept the repair only when rotor clearances are within the approved equipment limits, the rotor turns freely without contact, bearings and drive condition are satisfactory, throughput returns to the expected range, and pressure behavior is stable at representative load. Document the measured clearances and operating values so future wear can be trended rather than rediscovered after failure.

Common mistakes

Do not increase rotor speed automatically to compensate for lost capacity. Do not fit new tips without checking asymmetric wear. Do not ignore increased system backpressure. Do not judge clearance by eye when a measurement can be taken. Finally, do not use universal clearance numbers from another valve model; allowable dimensions are equipment specific and must come from the manufacturer documentation.
