Cement mill audits

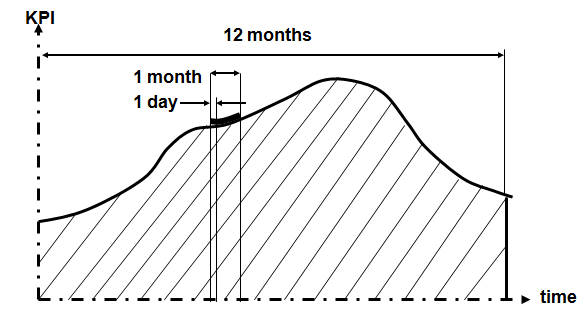

Long & short term data analysis

  • Production
  • Operation
  • Quality
  • Evaluation & Potential estimation based on:-Comparison with other grinding systems-Theoretical calculations

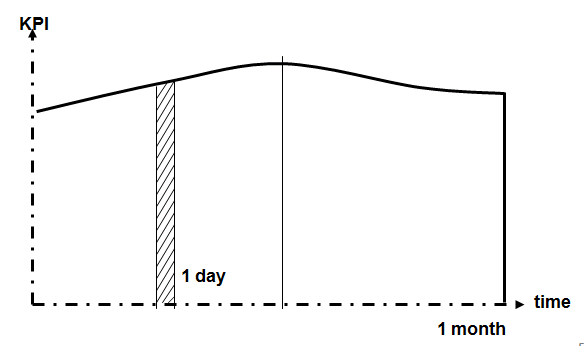

Short Term Data Analysis

  • Operation
  • Quality

Targets of a “B” Level Audit

Get to know well each of the circuit components

Measuring is the base



Requirements for the “B” level audit

  • Quality parameters to be known:

-Composition

-Fineness:

-Blaine

-[%] residue on a screen-

-A given PSD

-Early strength

-Late strength

-Cement target temperature

-LOI

  • Cement type choice (depends on targets)

The one with the highest throughput

-The most produced

-The finest one

– A chosen composition

– Stable operation for 6 – 8 hours

– Previous checking of:

-Feeders

-Instruments

-Etc.

Logical realisation order

  • Define the cement type (s) for the audit
  • Gather the main machines design data
  • Central Control Room visit
  • Circuit visual inspection
  • Field activities:

-Counters reading

-Sampling

-Measuring

-Mill, separator and auxiliaries internal visual inspection

  • Data compilation and analysis
  • Conclusions & report

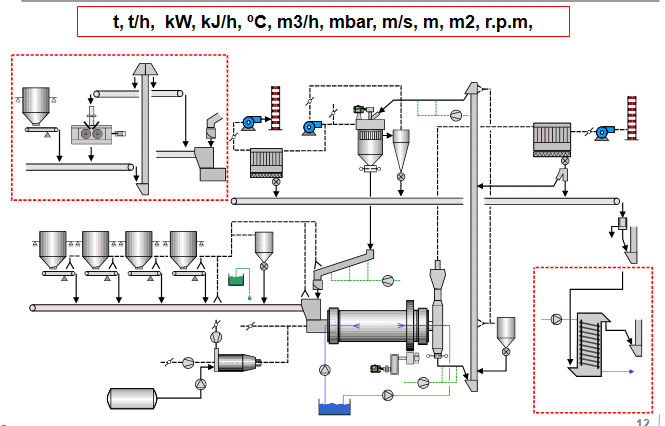

Main machines design data

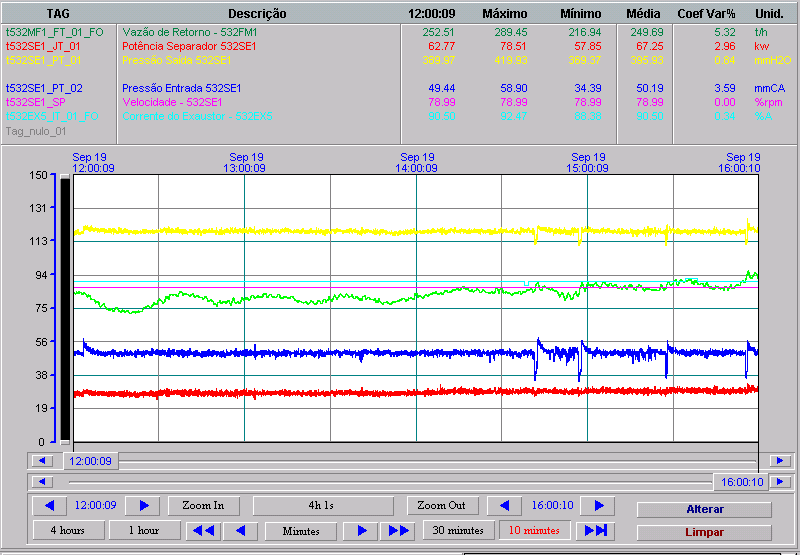

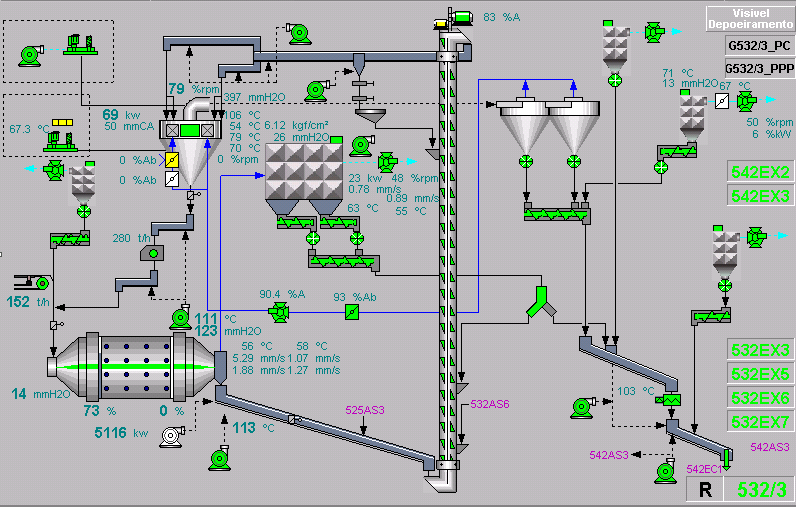

Mill Control System, Strategy & Trends

  • Information on:

-Available information at the CCR

-First contact with circuit layout

-Control system

-Control strategy

-First impression on operation

-Circuit stability

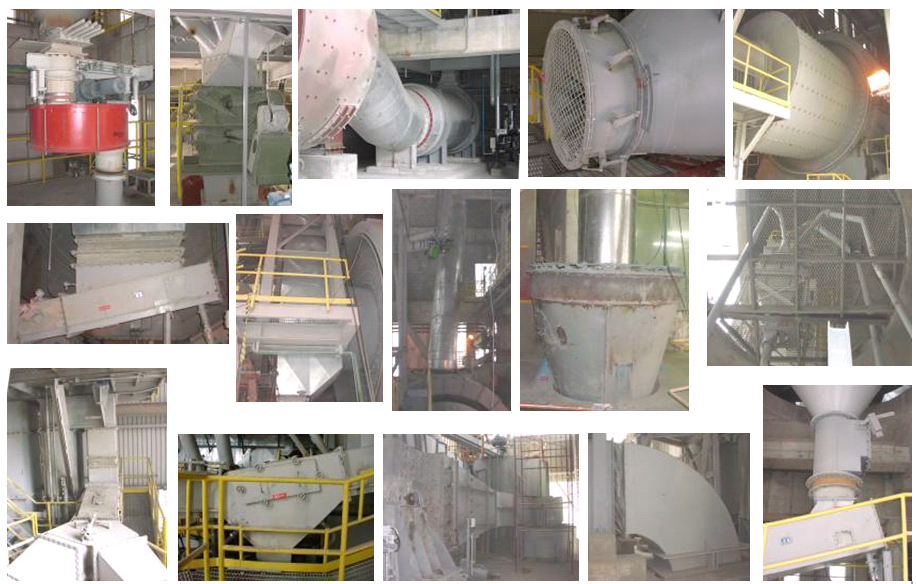

Circuit / Visual inspection during operation

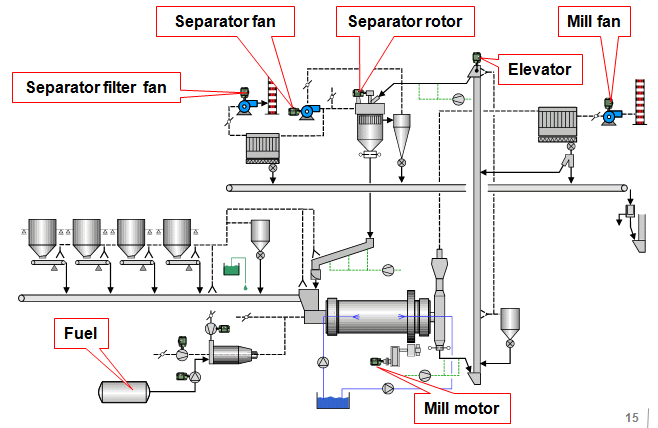

Power measurement

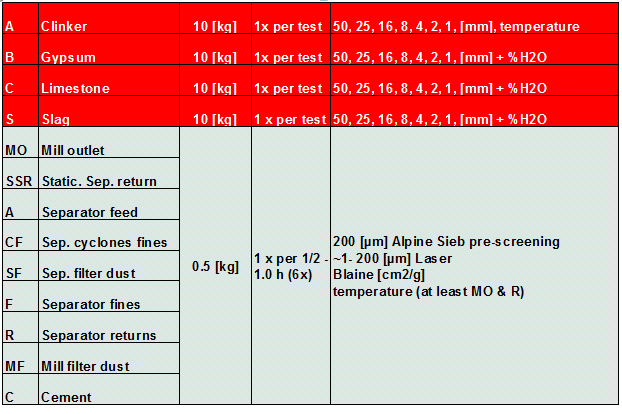

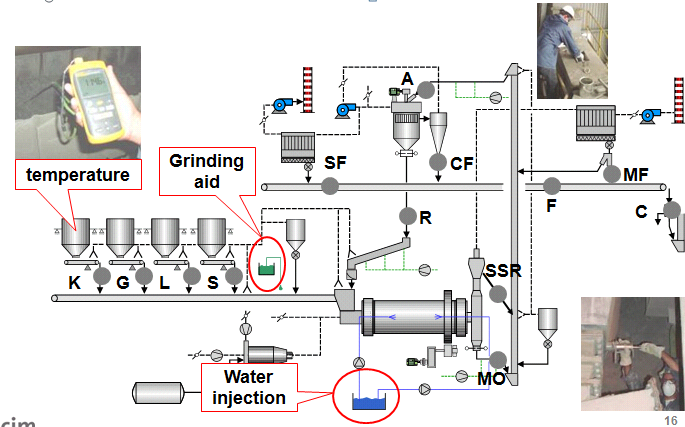

Material and liquids sampling and measurements

Material sample analysis

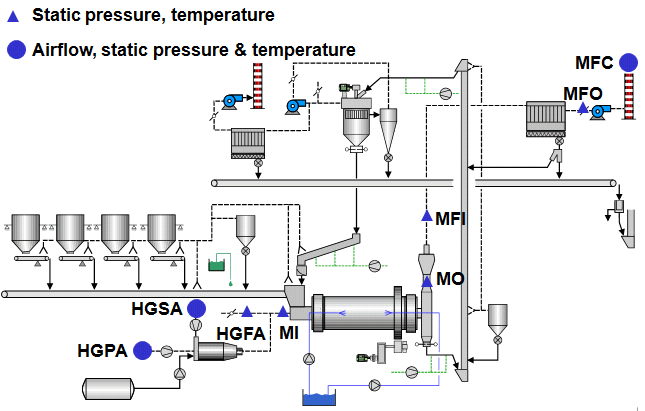

Mill air measurements

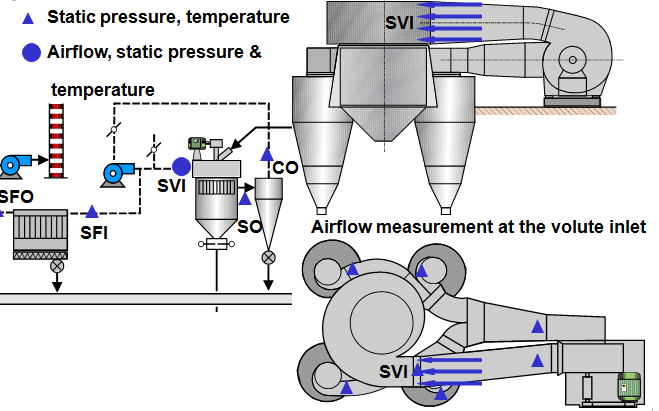

Separator air measurements

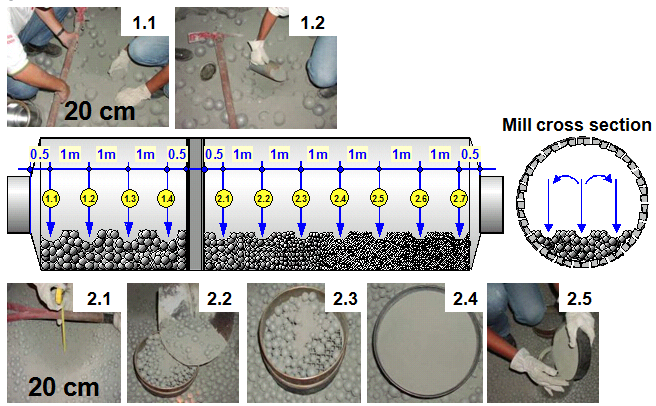

Mill Material Sampling

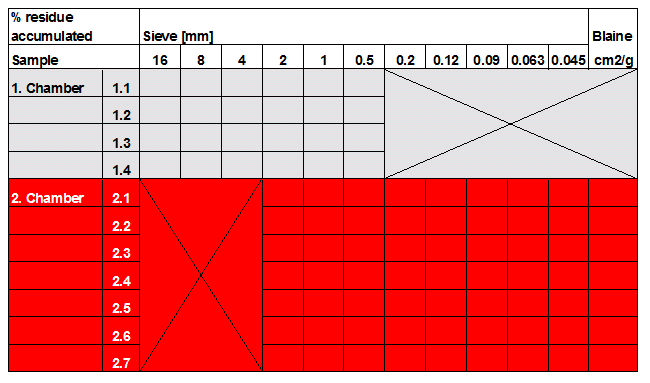

Mill material samples analysis

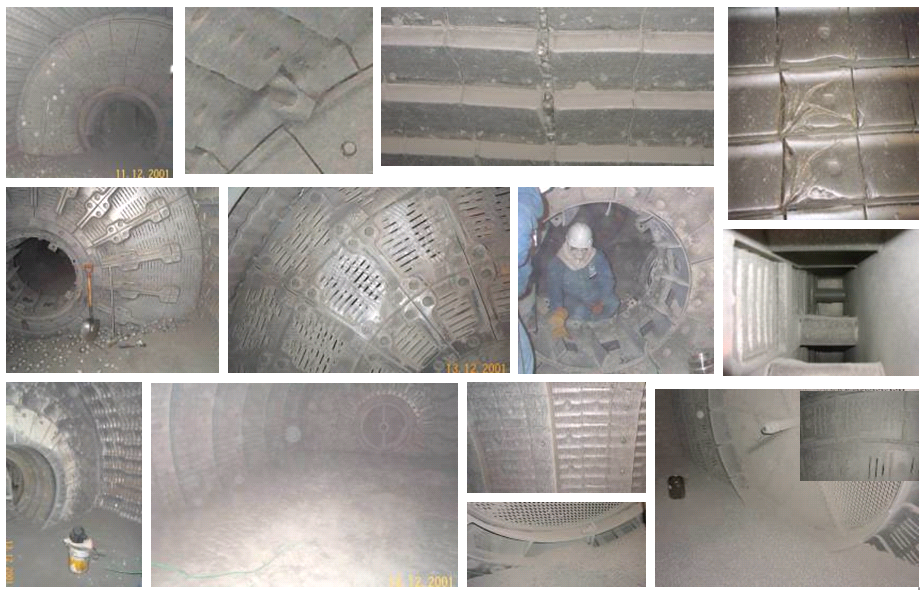

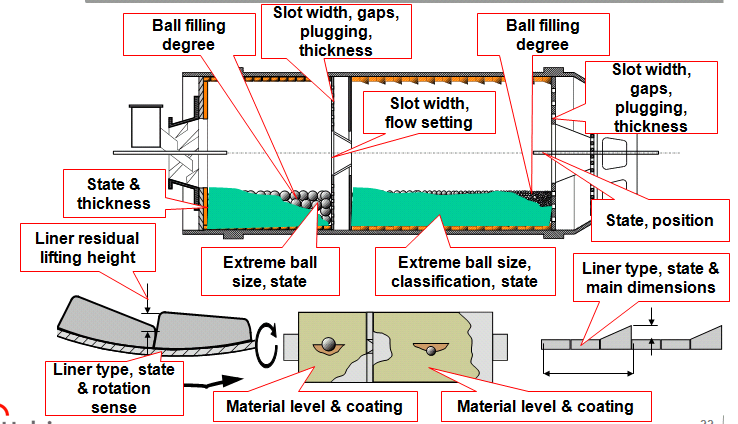

Mill Visual Inspection

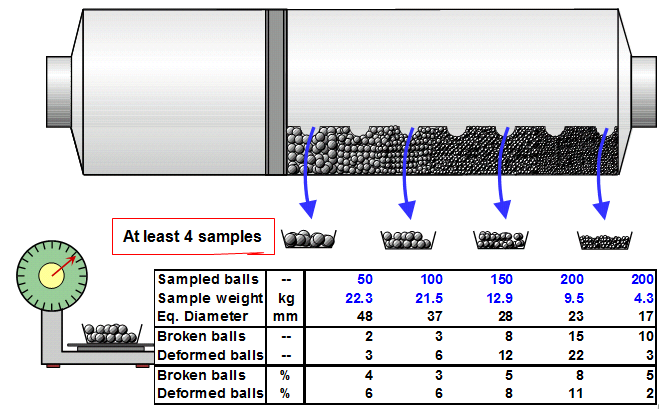

Mill / Balls sampling

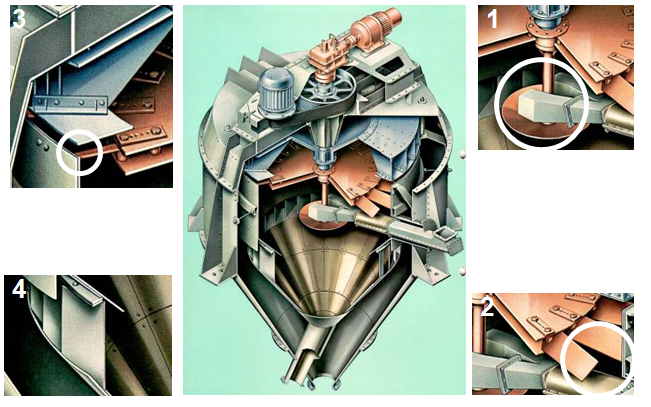

Separator / Visual inspection / 1st Generation

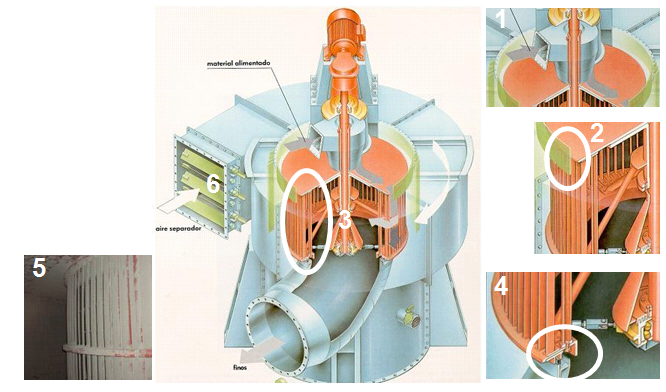

Separator / Visual inspection / 3rd Generation

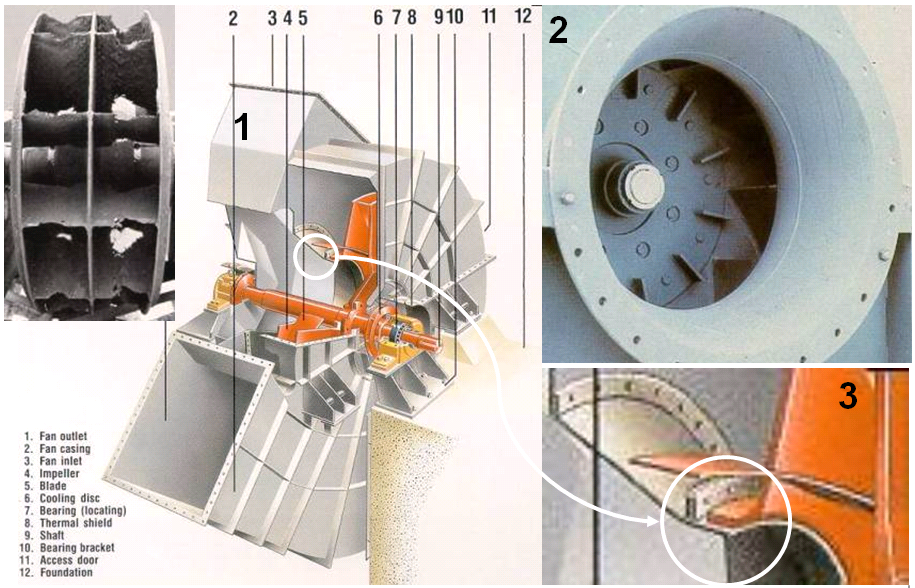

Fans / Visual inspection

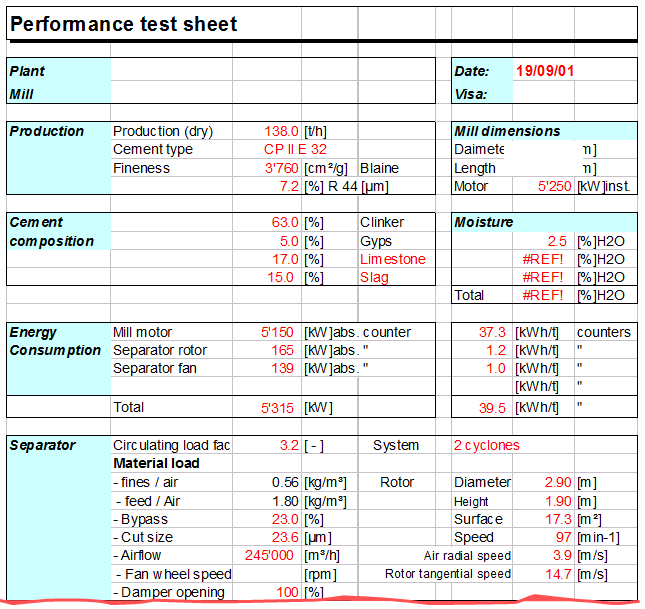

Cement mill Performance test data sheet
