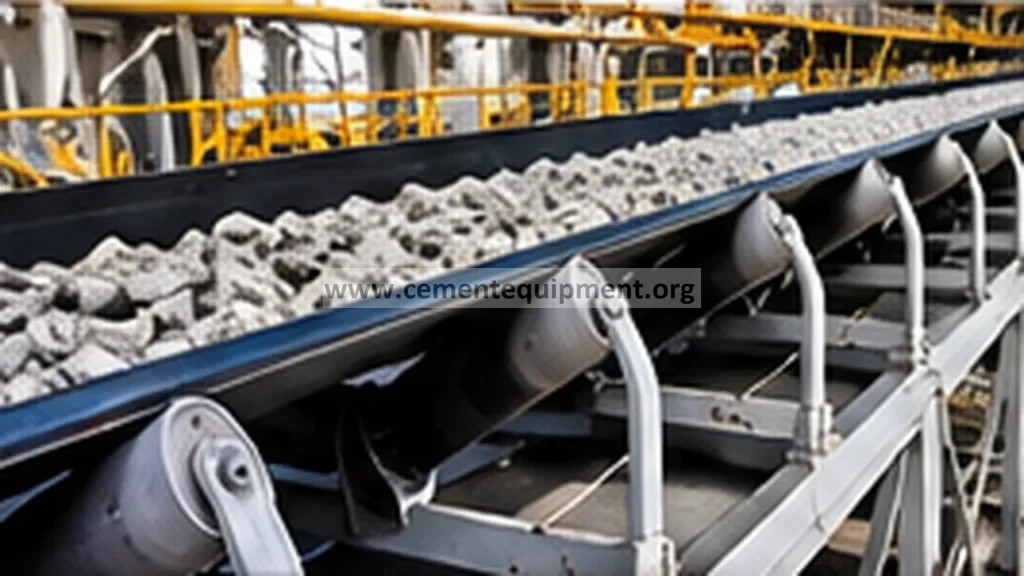

A pull-cord switch that trips without a real emergency should be treated as a safety-device fault until proven otherwise, not bypassed. Inspect cord tension and routing, switch reset/latching mechanism, mounting rigidity, cable supports, corrosion, dust buildup and field wiring, then verify the trip circuit from switch to PLC or safety relay. The objective is to eliminate false activation while preserving the emergency-stop function exactly as designed.
Stop nuisance conveyor shutdowns without defeating or weakening the pull-cord emergency-stop system.
Use trip history, cord position/tension, switch latch state, mounting condition, dust/corrosion, wiring continuity, safety-relay status and environmental triggers.
Separate mechanical cord activation, switch failure, wiring fault and safety-circuit logic before replacing components or changing settings.
Fast diagnostic order
- Freeze the as-found evidence: identify the exact switch/zone, latch state and PLC or safety-relay indication before reset.
- Inspect the mechanical path: cord routing, supports, sag/tension, obstructions, mounting rigidity and vibration.
- Prove the electrical path: switch contacts, terminals, field cable, junction boxes and safety input channels.
- Match the trip to a trigger: startup vibration, wind, rain, washdown, temperature movement or dust ingress.
- Repair, then function-test: confirm the conveyor stops, annunciates, resets and restarts only as the approved safety logic permits.
Capture the exact trip state before resetting
Record: which switch or zone tripped; whether the local switch is physically latched; cord position and visible sag; weather or washdown condition; conveyor vibration at the location; recent maintenance; safety-relay/PLC input state; and whether the trip occurred during startup, steady running or while the conveyor was stopped.
A nuisance trip that always follows the same environmental or mechanical event is easier to diagnose than a trip that is reset before the as-found state is documented.
1. Inspect cord routing, supports and tension
Walk the protected conveyor length under the site’s safe-access procedure. Look for excess sag, overtension, missing supports, sharp changes in direction, rubbing against structure, trapped material and cord movement caused by wind or vibration. Temperature changes and structural movement can also alter effective tension. Restore the pull-cord geometry according to the switch/system manufacturer rather than improvising a tighter setting.
2. Verify the switch latching and reset mechanism
Inspect the local switch for damage, corrosion, cement ingress and free mechanical movement. Confirm that the actuator reaches its normal rest position and that the reset mechanism operates positively. A worn spring, sticky cam or damaged enclosure can cause intermittent trips. Do not lubricate internal mechanisms unless the manufacturer specifies it because inappropriate lubricant can attract cement dust.
3. Check mounting rigidity and conveyor vibration
A switch mounted on a flexible or vibrating bracket can experience repeated mechanical input even when the cord is untouched. Inspect fasteners, supports and nearby structural cracking. Compare nuisance events with conveyor startup or impact loading. If vibration is the trigger, correct the mounting or underlying conveyor vibration while maintaining the required switch accessibility and cable geometry.
4. Inspect field wiring and junction boxes
Check cable glands, terminals, junction boxes and flexible conduit for moisture, dust ingress, loose connections, crushed cable or insulation damage. Intermittent open circuits can mimic a pulled switch in fail-safe designs. Use the approved electrical test method and drawings to identify whether the switch contact, field cable or downstream input is changing state. Never bridge the safety contact to keep production running.
5. Verify the safety relay or PLC input chain
Review the safety-relay or safety-PLC diagnostics where available. Confirm channel agreement for dual-channel circuits, input status and reset logic. If the local switch remains normal but the control system shows a trip, test the wiring path and input hardware. If several switches share a series circuit, isolate the fault systematically using drawings and approved test points rather than disconnecting protection zones.
6. Correlate trips with weather, washdown and dust
Outdoor conveyors can be affected by rain, wind and temperature movement. Cement dust can pack around external mechanisms or enter damaged enclosures. Washdown can drive moisture into poorly sealed glands. Record the environmental pattern and repair sealing or cable support problems. Repeated cleaning without fixing an enclosure or gland defect only resets the clock on the next nuisance trip.
7. Prove the emergency function after repair
After the cause is corrected, test each repaired switch according to the plant’s functional-test procedure. Verify the conveyor stops as designed, the trip is annunciated correctly, reset is controlled, and restart cannot occur until the safety circuit is restored. A nuisance-trip repair is not complete until the actual emergency-stop function is demonstrated.
Pull-cord nuisance-trip diagnostic matrix
| Pattern | Likely direction | Priority check |
|---|---|---|
| Trip follows startup vibration | Mounting/cord movement | Bracket rigidity, cord supports, conveyor vibration |
| Local switch visibly latched with no operator action | Mechanical cord or switch fault | Cord tension, obstruction, actuator/reset mechanism |
| Switch normal but PLC input drops | Wiring/input fault | Terminals, cable, junctions, safety relay/PLC channel |
| Trips during rain/washdown | Moisture ingress | Enclosure, glands, junction boxes, cable damage |
| Multiple switches trip in one zone | Common circuit/supply issue | Shared wiring, safety relay, field supply and drawings |
Common mistakes
- Bypassing the switch because the trip appears false.
- Overtightening the cord to stop sag without following the system design.
- Resetting before documenting which device actually tripped.
- Replacing the switch while leaving damaged field wiring unchanged.
- Skipping the final functional emergency-stop test after repair.
Return-to-service verification
Acceptance requires stable normal-state indication during representative conveyor operation, no nuisance trip during the previously problematic condition, correct local and control-room annunciation, positive manual trip from the repaired switch, controlled reset and successful safety-circuit functional testing. Record the repaired location and cause in the conveyor safety-device inspection history.
Frequently asked troubleshooting questions
What usually causes nuisance trips on conveyor pull-cord switches?
Common causes include poor cord tension/routing, vibration, a sticky or damaged switch, moisture or dust ingress, loose wiring and safety-relay/input faults.
Can the pull-cord switch be bypassed if the trip is clearly false?
No. Treat the device as a safety-system fault until the cause is proven and repaired. The emergency-stop function must remain intact.
How do you separate a switch fault from a wiring fault?
Compare the local mechanical latch/contact state with the safety-relay or PLC input. A normal local switch with a dropped input points toward the field wiring or downstream safety circuit.
Related Infinity technical guides
References
Follow the installed pull-cord switch, safety relay and conveyor OEM manuals plus the plant’s electrical safety and functional-test procedures. Safety devices must never be bypassed to resolve nuisance trips.
