Modern cement plants contain two furnaces, not one. The famous one is the rotary kiln — a slowly turning tube that fuses raw meal into clinker at about 1,450°C. The second one is quieter and largely unknown outside the industry: a refractory-lined reaction chamber hanging vertically in the preheater tower, where most of the plant’s fuel is actually burned and where nearly all of the limestone’s carbon dioxide is set free before the raw material ever touches the kiln. That chamber is the calciner, and since its industrial introduction in the 1960s it has been the single biggest reason a given size of kiln tube can produce more than twice the clinker it once could.
The short answer to “what is a calciner?” is: a calciner (also called a precalciner) is a vertical, refractory-lined combustion and reaction vessel installed between the suspension preheater and the rotary kiln in a modern cement plant. Pulverized fuel is fired into it along with hot air drawn from the clinker cooler through the tertiary air duct; the gas stream is held at roughly 850–900°C, and the raw meal suspended in that stream releases 90–95% of its carbon dioxide there — completing the calcination reaction CaCO₃ → CaO + CO₂ — before dropping into the bottom cyclone and flowing on to the kiln. Because 55–65% of the plant’s total fuel can be burned in this vessel, the calciner acts as a second firing point, offloading heat duty from the kiln and roughly doubling the output a given kiln tube can deliver.
1. What is a calciner? Calciner meaning and definition
The word gives the game away. “Calciner” comes from calcination, the thermal decomposition of calcium carbonate (limestone) into lime — a term rooted in the Latin calx, meaning lime. A calciner is any vessel whose job is to calcine; in the cement industry the word almost always means the specific flash-calcination vessel of a preheater–precalciner kiln system.
Calciner definition in one sentence: a vertical, refractory-lined tower vessel in which pulverized fuel is combusted in a rising stream of hot gas while finely divided raw meal is entrained in that same stream, so that fuel burning and limestone decarbonation happen simultaneously, in suspension, within seconds of contact.
Two features distinguish it from every other furnace in the plant:
- It works in suspension, not in a bed. The meal is carried by the gas as a dilute cloud (seconds of contact), whereas the rotary kiln processes a compacted granular bed over tens of minutes. Suspension contact is what makes the calciner fast: the same heat-transfer logic that made cyclone preheaters dominant since the 1960s.
- It is a chemical reactor, not just a heater. Its product specification is a degree of calcination — how much CO₂ has been driven out of the carbonate — not a temperature. Everything else (fuel split, air supply, geometry) exists to hit a target calcination degree stably.
Basic calciner numbers (typical modern precalciner system):
| Parameter | Typical value | Source |
|---|---|---|
| Gas temperature at calciner outlet | 870–900°C (design window); 860–890°C cited for 90–97% calcination | Innovations in Portland Cement Manufacturing, p.276; KHD/Int. Cement Review |
| Degree of calcination at kiln inlet | 90–95% (design basis ≥85%) | Package training deck p.26; Innovations, p.278 |
| Share of total fuel burned in calciner | 55–65% (in-line) / 55–60% (separate line); ~60% rule of thumb | Package training deck pp.26–27; Innovations, p.279 |
| Gas residence time in calciner | ~1.4–1.7 s (separate vessel) to 4–5 s (extended duct); ≥5.5 s for alternative-fuel designs | Innovations, p.278; KHD/ICR |
| Normal capacity range | 1,500–5,000 tpd per string; >10,000 tpd with multiple strings | Package training deck pp.26–27 |
| Combustion air source | Tertiary air duct from clinker cooler (or through-kiln in air-through designs) | Package training deck; KHD |
When people say “calciner kiln” or “calciner kiln system,” they mean this entire arrangement — preheater tower + calciner + shortened rotary kiln + cooler — as one integrated machine. That system context matters: the calciner cannot be understood (or operated) in isolation from the preheater above it and the kiln below it.
2. Where the calciner sits in a cement plant
A calciner in a cement plant lives inside the preheater tower — the tallest structure on the site, typically 60–110 m tall when the preheater string has four to six cyclone stages. One preheater string normally serves production up to about 6,000 tonnes of clinker per day; two strings take a line to roughly 10,000 tpd or more, and for outputs beyond about 12,000 t/d three strings of cyclones for preheating and calcination may be considered. In single-string preheaters, each stage is a single cyclone except the uppermost stage(s), which are usually twin cyclones for better heat exchange and separation efficiency.
The meal and gas dance through the tower in counterflow:
- Raw meal enters the riser duct of the lowest stage through a feed pipe and strikes a splash plate (splash box), which disperses the powder into the ascending gas stream. Dispersion multiplies the particle surface area exposed to hot gas, which is why most of the heat exchange happens immediately after each dispersion event.
- Gas and meal rise together through the riser duct into the cyclone above, where centrifugal separation dumps the solids down the dip chute (fitted with tipping/flap valves to stop false air leaking in) while the gas exits through the central thimble pipe to the stage above.
- Each stage lifts the material temperature by roughly 150–250°C with a corresponding drop in gas temperature, so by the last preheating stage the meal approaches calcination temperature — around 800°C in classical descriptions of the process.
- From the second-lowest cyclone, the preheated meal drops directly into the calciner zone, where fuel burners (and often additional meal feeds) raise the suspension through the calcination window.
- The gas-solids suspension leaves the calciner and enters the bottom cyclone — the lowest-stage cyclone — which collects the now mostly calcined “hot meal” and drops it through a flap gate into the kiln inlet, while the gas continues upward through the remaining preheater stages.
- Combustion air arrives separately. Hot air recovered from the clinker cooler travels to the calciner through the tertiary air duct (typical temperatures 850–1050°C, duct velocities around 18–25 m/s), supplying both the oxygen and much of the sensible heat for calciner combustion without passing through the kiln.
The standard component inventory of such a tower — cyclone vessels, gas ducts (riser ducts), expansion joints, flap gates, splash plates and inner pipes — reads like a parts list of the calciner’s immediate family. Separation efficiency of the cyclones is typically above 95%, and their outlet velocities are engineered downward from about 13–15 m/s in the lower stages to 8–10 m/s at the top stage, trading separation sharpness against pressure drop as the gas cools.
The full flow (raw material → raw mill → blending silo → preheater → calciner → kiln → cooler → finish mill) is covered step by step in the companion manufacturing of cement article; this page stays focused on the calciner itself.
3. The chemistry inside the calciner: CaCO₃ → CaO + CO₂
The reaction the whole vessel exists for is simple to write and expensive to run:
CaCO₃ → CaO + CO₂ (limestone → lime + carbon dioxide, endothermic)
Decomposition of calcite absorbs about 166 kJ per mole of CaCO₃ at reaction temperature — roughly 1,660 kJ per kilogram of limestone decomposed — which is why calcination dominates the theoretical heat demand of clinker making (theoretical minimum energy for clinker formation is about 1.60–1.76 MJ/kg, versus ~2.95–3.11 MJ/kg practical minimum with today’s losses). Carbonates begin releasing CO₂ from around 600°C, but industrially useful rates require 800–900°C — precisely the window the calciner holds.
Three facts govern the reaction engineering:
- Rate rises steeply with temperature. Researchers have found the calcination rate increasing almost linearly across 800–880°C for typical raw mixes (Kupper et al., 1983).
- CO₂ fights back. Calcination is reversible in principle: raising the CO₂ partial pressure around the particle suppresses decomposition. At 900°C, increasing the CO₂ partial pressure from 0.3 to 0.5 atmospheres cuts the calcination rate by nearly half (Kupper et al., 1985). This matters because in an in-line calciner the meal is calcining in a gas already loaded with combustion CO₂ and kiln-exit CO₂.
- Time is the other lever. Since temperature is capped (see Section 4), designers buy calcination with residence volume instead — swirl, extended ducts, larger vessels.
The industry’s design language for “how calcined is the meal” is loss on ignition (LOI). The kiln/precalciner system is normally designed for at least 85% calcination, computed with the standard formula reproduced from Innovations in Portland Cement Manufacturing (p.278):
C = 100 × [1 − (LOI_sample × (100 − LOI_raw meal)) ÷ (LOI_raw meal × (100 − LOI_sample))]
Worked example (illustrative arithmetic, not measured data): raw meal LOI 35.5%, hot-meal sample LOI 4.0% → numerator 4.0 × 64.5 = 258; denominator 35.5 × 96 = 3,408 → C = 100 × (1 − 0.076) ≈ 92.4% calcined. In practice, well-run plants hold hot-meal calcination at kiln inlet at 90–95%; the package’s training material notes the design ceiling deliberately sits at “not more than 95%” because chasing higher degrees buys trouble rather than tonnage (more on that in Section 4).

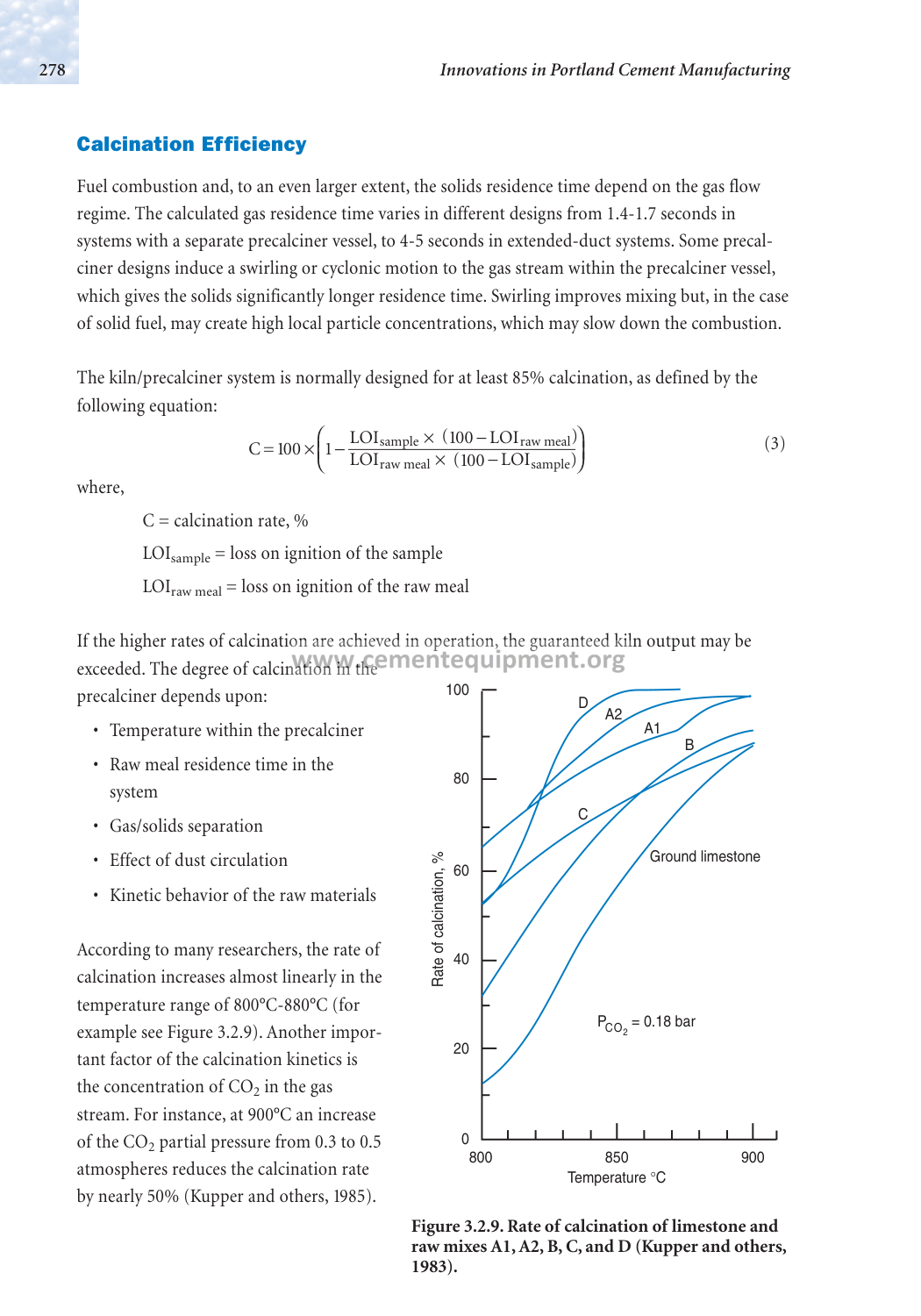

This page from the Cement Technical Package (Pre-heater & Pre-calciner.pdf, “Calcination Efficiency,” book p.278) carries the two most quoted artifacts in calciner engineering. On the right is Figure 3.2.9, the classic Kupper (1983) plot of rate of calcination (%) versus temperature (800–900°C) for ground limestone and five different raw mixes (curves A1, A2, B, C, D) at a CO₂ partial pressure of 0.18 bar — the experimental basis for the “rate climbs almost linearly from 800 to 880°C” statement used throughout the industry. On the left is the calcination-rate equation itself, defining C from the loss on ignition of the sample and of the raw meal, with the explicit note that systems are designed for at least 85% calcination. The surrounding text also fixes the gas-residence-time benchmarks quoted later in this article: 1.4–1.7 seconds for designs with a separate calciner vessel versus 4–5 seconds for extended-duct systems, and warns that swirling improves mixing but can locally concentrate solid fuel particles enough to slow combustion. Anyone who wants to audit their own plant’s hot-meal samples against design intent can do it with exactly these tools — no simulation software required.
CO₂ released in the calciner versus the rotary kiln
Because the calciner finishes 90–95% of the decarbonation before the meal enters the kiln, the great majority of the process CO₂ is released in the preheater/calciner circuit, not in the rotary kiln — on the order of nine-tenths of it. The accounting behind that statement: clinker production releases roughly 0.507 t CO₂ per tonne of clinker from calcination alone (IPCC default: 64.6% CaO fraction × 0.785 mass ratio), commonly rounded to ~520–540 kg CO₂/t clinker in industry protocols (the GHG Protocol cement standard uses a 525 kg/t default). Across the whole kiln system, limestone decomposition accounts for about 60% of direct cement CO₂ and fuel combustion for about 40% (WBCSD CSI). So the split readers usually ask about — CO₂ release percentage in the calciner vs kiln — resolves as: ~90% of the ~60% process CO₂ (i.e., over half of total direct CO₂) evolves in the calciner/bottom-cyclone circuit, with the residual decarbonation finishing in the kiln alongside all of the fuel-CO₂ from the main burner.
4. Calciner temperature: why ~850–900°C is the operating window
Ask what temperature a calciner runs at and you will get one number with surprising consensus: about 850–900°C at the gas outlet. The reference literature keeps the exit of all precalciner types in the range 870–900°C — “required for calcination of limestone and yet low enough to avoid forming build-ups and blockages.” KHD states the same physics from the supplier side: feeding 55–60% of total fuel to the calciner yields a hot-meal calcination of 90–97%, “which corresponds to a temperature of 860–890°C at the calciner outlet.”
The window is a compromise, and the upper edge is hard:
- Higher temperature does buy faster calcination (Section 3) — so why not run hotter? Because beyond the window, the marginal gain collapses and the failure modes multiply. KHD again: higher precalcination rates cause “a considerable rise in temperature in the calciner, which causes increasingly severe coating in the calciner, bottom cyclone and inlet chamber.”
- Build-ups are the tax on running hot. The mechanism is mechanical, not mysterious: centrifugal force presses sticky, partially calcined particles onto vessel walls, and material cohesiveness rises with temperature. Wall deposits grow into rings and blockages that can shut the whole preheater/precalciner system down.
- Fuel economy points the same way. Every degree above need is fuel burned for no chemistry. The operating doctrine in the reference literature is blunt: run the precalciner as low as possible without losing the desired calcination rate, and prefer longer residence time over higher temperature level when more calcination is needed.
- Stability follows temperature discipline too. Calcination is strongly endothermic, and controlling that reaction controls kiln stability: with ~90% of it finished before the kiln, the risk of kiln “flushes” (surges of cold, under-burned material) falls sharply. But the degree must be constant — systems with short solids residence times demonstrably swing wider in calcination degree than long-residence designs, and those swings propagate straight into the kiln.
The operator’s proxy for all of this is the gas temperature at the bottom (lowest-stage) cyclone, tracked continuously against the target hot-meal calcination of 90–95%. Feeding that control loop is the tertiary air: hotter tertiary air is both more economical and more stabilizing, which ties calciner behavior directly to clinker-cooler performance — a coupling explored further in our tertiary air duct optimization article.
Residence-time benchmarks worth memorizing: gas residence in a separate calciner vessel runs about 1.4–1.7 s, extended-duct systems reach 4–5 s, the target calcination (90–97%) is achieved in under 3 s at normal meal fineness, and alternative-fuel-fired calcs are sized to at least 5.5 s — numbers that explain why two calcs at the same temperature can still behave completely differently.
5. Inline vs separate line calciner: ILC vs SLC explained
Strip away trademarks and every precalciner belongs to one of three combustion families, classified by where the calciner’s combustion air comes from (Turnell, 2001):
- Total flow calciner — fuel burns in a mixture of kiln exit gases and tertiary air; combustion starts at about 10–14% O₂ and ends at about 1–3% O₂.
- Tertiary air flow calciner — fuel burns in pure hot air from the cooler (21% O₂ at start), again ending at 1–3% O₂; needs less calciner volume for the same duty and burns hard-to-fire fuels better.
- Hybrid calciner — combustion starts in tertiary air (21% O₂) and finishes in a kiln-gas/tertiary-air mixture; combines the reducing-zone NOx advantage of total-flow with the ignition advantage of pure-air start.
The layout question — where that vessel hangs relative to the kiln’s own gas path — produces the two families every buyer compares: the inline calciner (ILC) and the separate line calciner (SLC). In an in-line calciner, the calciner vessel is built into the kiln’s own riser duct: all kiln exhaust gas must pass through the calciner before the combined stream enters the bottom cyclone. In a separate-line calciner, the calciner sits on its own gas/meal string with its own bottom cyclone; kiln exhaust gas and calciner gas are not mixed, and the tower effectively becomes a two-string preheater where both strings receive meal but only the calciner string feeds hot meal to the kiln.
This page from the Cement Technical Package (Pre-heater & Pre-calciner.pdf, book p.276) is the best single-page orientation to calciner families. The text block defines the three combustion classes — total flow (combustion beginning in 10–14% oxygen and ending at 1–3%), tertiary air flow (starting at 21% oxygen in clean hot air), and hybrid — then pins the exit-gas window at 870–900°C and assigns the canonical examples: F. L. Smidth’s In-Line Calciner (Figure 3.2.6) for the total-flow class and the Separate-Line Calciner (Figure 3.2.7, SLC-D variant) for tertiary-air-flow class. The two color cutaways show exactly what the labels mean physically: in the ILC drawing you can trace preheated raw meal entering at the vessel top, fuel injected near the base, and green-highlighted “air from cooler” joining the red kiln-gas column inside the same vessel; the SLC-D drawing shows the taller, narrower separate vessel with its own meal curtain and burner arrangement. Note the trade-offs listed beside the drawings: total-flow and hybrid calcs can create a reducing zone that destroys nitrogen oxides, while tertiary-air-flow and hybrid designs offer the oxygen-rich atmosphere favored for hard-to-burn fuels — advantages we return to in Sections 6 and 8.
The feature sheets for the two FLS system families make the comparison concrete (package training deck, pp.26–27):
| Feature | In-Line Calciner (ILC) | Separate Line Calciner (SLC) |
|---|---|---|
| Position | In the kiln riser string; kiln gas passes through calciner | Own string/vessel; kiln gas not mixed with calciner gas |
| Fuel share in calciner | 55–65% of total fuel | 55–60% of total fuel |
| Kiln-gas bypass (normal / max) | 0–30% / 0–100% | 0–60% / regulation range max 30% |
| Calcination at kiln inlet | 90–95% | 90–95% |
| Capacity range | 1,500–5,000 tpd normal; >10,000 tpd multi-string | 1,500–5,000 tpd normal; >10,000 tpd multi-string |
| Standout strengths | High material/gas retention from large volume + moderate swirl; suited to low-grade fuels; longest refractory life (low thermal kiln load, stable coating); lowest NOx among traditional calciner kilns; built-in low-NOx capability | Suited to all fuel types, especially low-volatile fuels (combustion in hot atmospheric air, temperature controllable independently of meal temperature); smallest possible tower dimensions (vessel installed separately from the cyclone tower); low-NOx operation possible |
Both deliver the same headline chemistry (90–95% calcination at kiln inlet); they differ in how much kiln interaction and tower geometry you trade against fuel flexibility and emissions behavior.
Here the Cement Technical Package lays out the three canonical system arrangements side by side (Figure 3.2.8, book p.277), each drawn as the complete chain cyclone preheaters → calciner → rotary kiln → clinker cooler. The top diagram (ILC) shows a single tower in which the calciner vessel is simply the enlarged lower segment of the kiln’s riser duct — one gas path, one string, the simplest possible flow sheet. The middle diagram (SLC-D, downdraft) adds a discrete calciner vessel beside the tower with its own connection geometry, so calciner gases and kiln gases join only downstream; the calciner is visibly a separate piece of equipment hanging off the preheater. The bottom diagram (SLC-I) shows the fully developed two-string version: two complete cyclone columns, with the calciner vessels in the second string and hot meal taken from that string’s bottom stage. Reading the three drawings in sequence is the fastest way to internalize what “inline versus separate line” actually changes — not the chemistry (all three hold 870–900°C and 90–95% calcination) but the gas routing, the tower footprint, and how independently the calciner fire can be managed from the kiln fire. For a buyer, that routing choice cascades into capital cost (tower dimensions), fan power (pressure drop), fuel flexibility, and emissions behavior.
6. Calciner design types by supplier: FLSmidth, KHD PYROCLON, Polysius PREPOL
Suppliers brand their versions, and the names matter when reading datasheets or spare-parts catalogs:
FLSmidth (Fuller). The Fuller In-Line Calciner dates to 1976 and remains the reference ILC brand; FLS’s current flagship is its Low NOx Calciner, developed through CFD modeling and five decades of field data. The FLS kiln-systems catalog arranges the options as SP (suspension preheater, no calciner), ILC-E (in-line calciner using excess air — combustion air drawn through the kiln), ILC, SLC, SLC-I (separate-line calciner with in-line calciner in the kiln string), and SLC-D (downdraft, with a separate combustion chamber). FLS also pairs ILC systems with the HOTDISC combustion device for lumpy alternative waste up to 1.2 m in size. A recent academic review makes a point buyers should heed: despite dozens of commercial names, most designs collapse back into ILC, SLC, or “ILC with combustion chamber” (ILC-CC) categories — and some nominally separate-line offerings (including the SLC-D) are functionally ILC-CC layouts.
KHD Humboldt Wedag — PYROCLON series. KHD introduced the first modern precalciner in 1965, applying fuel and material in an extended riser duct connecting the kiln inlet with the lowest cyclone — and the company still leads with the claim of having pioneered flash calcination. Its PYROCLON family maps cleanly onto the concepts above:
| PYROCLON type | Arrangement | Precalcination achieved | Fuel to calciner | Air route / notes |
|---|---|---|---|---|
| Without calciner (SP kiln) | Riser duct only | ~40–45% in riser duct | 0% | Gas residence ~1 s; long kiln with calcination zone required |
| PYROCLON S | Extended riser duct | Up to 60% | Up to 20% | Combustion air drawn from cooler through the kiln (air-through); gas residence up to 5 s |
| PYROCLON R | Extended riser duct | ~90–95% | Up to 60% | Separate tertiary air duct; lower excess air at kiln inlet; the platform for all KHD variants |
| PYROCLON RP | Crossflow | High | High | Total meal passes through both kiln-gas and calciner-gas streams; combustion on pure tertiary air (a separate-line style solution) |
| PYROCLON R-LowNOx AF | Strand calciner, staged combustion | 90%+ | Up to 60% | Sub-stoichiometric zone (λ<1, CO-rich) then oxidizing zone (λ>1); NOx significantly below 500 mg/Nm³ @ 10% O₂; >30 references; classified Best Available Technique |
| PYROCLON R with CC (combustion chamber) | Chamber upstream of calciner | 90%+ | High AF shares | Combustion starts in pure hot tertiary air at ~1,200°C; total fuel retention >6 s (overall gas retention often >7 s); accepts lumpy fuels up to 800 mm |
KHD’s PYROTOP compact mixing chamber — fitted atop its calciners — forces intensive CO/O₂ mixing at the gas turn so combustion completes before the bottom cyclone, at only slightly higher pressure drop than a plain 180° bend. For extreme alternative-fuel cases, KHD’s Pyrorotor adds a rotary reactor with ~10 minutes of material residence, and thyssenkrupp Polysius takes the same idea furthest with its PREPOL system add-ons: the prepol® SC step combustor gives coarse waste over 1,000 seconds on a refractory grate (its short version 150–300 s), against “up to seven seconds” in an ordinary calciner loop. Polysius plants pair DOPOL preheaters with PREPOL-MSC/SC calcining systems — same physics, house naming convention, exactly as with FLS and KHD brands.
This overview slide from the Cement Technical Package (KHD pyro process.pdf, p.16) is the family portrait of modern calciner design. Seven schematics read left to right as an evolutionary tree, each drawn with the same legend — dashed arrows for meal, solid black arrows for fuel — so the differences pop visually. Top row: a preheater without PYROCLON (note the bare riser duct from kiln to bottom cyclone), the PYROCLON S with its elongated red-hot extended duct and no separate air route, and the PYROCLON R, where the red tertiary-air duct from the cooler injects at the base of the calcining zone. Bottom row: the crossflow RP with its twin gas streams, the R-LowNOx with fuel fed at two levels to create the reducing/oxidizing staircase, the R-US LowNOx with its top air duct, and the R with CC showing the bulbous blue combustion chamber hanging ahead of the calciner. Studying the arrow patterns teaches the core design lesson of this whole article: every calciner variant is a different answer to just three questions — where does the fuel go, where does the combustion air come from, and where does the meal enter — asked again and again as fuels, emission limits, and capacity demands evolved from 1965 to today.
The defining operating parameter of a precalciner system is the fuel split — what percentage of the plant’s total thermal input burns in the calciner versus the kiln main burner. The numbers cluster tightly:
- ~60% of total fuel goes to the calciner in systems with a separate tertiary air duct — the industry rule of thumb confirmed by both the reference textbook and KHD (“60% of the fuel used at modern cement plants is required in the calciners”).
- ILC: 55–65%; SLC: 55–60% per the FLS-family feature sheets; PYROCLON R “up to 60%”.
- Air-through systems are capped far lower — only about 35% classically (PYROCLON S: up to 20%) — because their combustion air must travel through the kiln, and the resulting high excess air would depress kiln flame and gas temperatures. The textbook sets the guardrail: kiln control becomes problematic if kiln exit oxygen exceeds about 7%.
Why give the calciner the majority share at all? Because calcination consumes roughly twice the heat of sintering, and the calciner burns its fuel in ideal conditions: a turbulent suspension at ~870°C with enormous exchange surface. Pushing that heat duty through the kiln’s burning zone instead would demand a bigger kiln diameter — output was historically limited by the fuel that could be burned safely in the burning zone, essentially a function of kiln diameter. The calciner broke that constraint by adding a second firing point tuned to the biggest heat consumer.
The excess air story differs by family. Total-flow calcs start with 10–14% O₂ (the kiln exhaust contributes inert CO₂/N₂) and finish at 1–3%; tertiary-air-flow calcs start at 21% O₂ and likewise end at 1–3%. A representative FLS ILC operating target is ~20% excess air at the calciner top, corresponding to about 3% O₂ in the outlet duct — enough oxygen for burnout without wasting fan power. Mixing quality is the hidden variable: blending tertiary air into kiln exhaust reduces oxygen partial pressure (a stated disadvantage of conventional in-line calcs), which is why PYROCLON R injects tertiary air at high velocity right into the top of the turbulence zone, and why low-volatile fuels (petcoke) favor separate-line or combustion-chamber layouts where the flame sees pure, hot air. Burnout engineering is otherwise brute-force and elegant: calciner length calculated case-by-case for complete burnout (>5 s), restricted orifices preventing coarse fuel fall-through into the kiln inlet, PYROBOX-style injectors pre-mixing solid fuel with hot meal to dry and ignite it earlier.
8. What the calciner does for the plant: output, stability, and the NOx benefit
Output. Before the precalciner era, a kiln tube produced at most about 80 kg of clinker per m³ of tube volume per hour; the same tube with a preheater and precalciner delivers about 170 kg/m³/h. Designers express it as volumetric loading, and the FLS system table shows the step change plainly:
| Kiln system | Volumetric load (tpd/m³) | Burning-zone load (10⁶ kcal/h·m²) |
|---|---|---|
| SP (preheater only) | 1.8 – 2.3 | 2.8 – 5.5 |
| ILC-E (air-through) | 1.8 – 2.5 | 2.8 – 6.0 |
| ILC / SLC / SLC-I / SLC-D | 3.6 – 5.0 | 2.4 – 4.8 |
(FLSmidth kiln-systems reference; prerequisite is normal-burning raw meal.) Note the burning-zone load falls on calciner kilns even as throughput rises — the kiln is relieved of the calcination duty and only has to finish it and sinter, which is why calciner-era kilns run shorter (lower L/D) at far higher output. The kiln-side consequences (zones, coating, refractories) are covered in depth in our rotary kiln guide and the companion piece on reaction zones of the rotary kiln.
Stability. With calcination ~90% complete before kiln entry, the kiln sees a light, uniform, pre-reacted charge: fewer flushes, steadier burning-zone temperature, longer refractory life (the ILC sheet explicitly credits “long refractory life due to low thermal kiln load and stable kiln coating”). The calciner’s independent fuel valve also gives the operator a fast second actuator for pyro-control — adjust calcination degree without touching the kiln flame.
The NOx benefit. Calciners transformed NOx control as a side effect of their geometry. Thermal NOx forms by oxidation of atmospheric nitrogen above ~1,300°C; fuel NOx below that. A calciner never exceeds ~900°C bulk gas temperature, so it generates little thermal NOx itself — and, better, it can destroy the NOx arriving from the kiln. Staged combustion creates a sub-stoichiometric, CO-rich reducing zone in which kiln-off-gas NOx is chemically reduced back to nitrogen (2NO + CO → N₂ + CO₂), followed by a strong oxidizing zone that finishes combustion without CO slip. Implementations range from diverting part of the calciner fuel into the riser duct ahead of the tertiary air (“gradual combustion”), through alternating fuel/air staging along the ductwork, to dedicated small “pot” calcs on a quaternary air duct running deep reduction. This became the basis of the whole low-NOx calciner generation: KHD’s PYROCLON R-LowNOx achieves NOx significantly below 500 mg/Nm³ (dry, at 10% O₂) without additives, and FLS’s Low NOx ILC formalizes the staircase as a reduction zone (~1,100°C), high-temperature oxidation zone (~1,100°C), then calcination zone (~900°C) ahead of an ~880°C discharge cyclone. Among traditional calciner kiln systems, the in-line family carries the “lowest NOx” label outright — one reason the ILC remains the default recommendation for new high-substitution lines. Operators also exploit kiln-inlet NOx (ideally held around 1,000–1,500 ppm) as an early warning of burning-zone change, since it responds minutes faster than kiln torque in short-retention calciner kilns.
9. Operating the calciner: control parameters, build-ups and troubleshooting
Daily calciner supervision revolves around a handful of instruments, and every upset in the list below maps to one of them:
- Bottom-cyclone (lowest-stage) gas temperature — the master calciner signal, paired with hot-meal calcination at kiln inlet (~90–95% target). Rising trend = more fuel or hotter tertiary air reaching the stage; the controller trims calciner fuel accordingly.
- Calciner outlet temperature and O₂/CO — burnout health check (~3% O₂, minimal CO at outlet).
- Tertiary air temperature and flow — the calciner’s free heat source; sagging values point at the cooler, not the calciner.
- Hot-meal LOI (lab, shift basis) — the direct read of calcination degree via the Section-3 equation.
- Kiln inlet O₂, CO, NOx — early-warning trio for flame-side disturbances propagating backward.
The chronic disease of calciner service is build-up (coating/rings) in the calciner cone, bottom cyclone and kiln inlet chamber. Causes stack: centrifugal deposition of sticky particles, cohesion climbing with temperature, and above all the volatile circulation loop — chlorine, alkalis and sulfur circulating between kiln and preheater. Their balance is judged by the molar ratio Cl/(SO₃ + Na₂O + K₂O); when chlorides win, coatings grow aggressively and an alkali bypass may be justified — remembering its price: roughly 4–5 kcal/kg clinker of extra heat per each 1% of bypass extracted, before counting power, dust losses and capital. Tertiary-air-flow calcs, burning fuel in a relatively dust-free hot-air atmosphere, are structurally less build-up-prone than total-flow designs.
Configuration economics belong in every operator’s head, because stage-count decisions made decades ago still set today’s constraints. From the package’s operational-parameter table (relative values, 4-stage baseline):
| Parameter (relative) | 4-stage | 5-stage | 6-stage |
|---|---|---|---|
| Pressure drop across preheater and calciner | 100% | 114% | 127% |
| Fuel consumption | 100% | 97% | 95% |
| ID-fan specific power consumption | 100% | 104% | 111% |
| Installed cost of pyroprocessing system | 100% | 111% | 122% |
Five stages dominate modern practice; six pays where raw-moisture drying demand is low (<3%). And the practical playbook for the failures everyone eventually meets:
| Symptom | Likely cause | First actions |
|---|---|---|
| Calciner outlet temp climbing; heavy coating growing in bottom cyclone/inlet chamber | Calcination degree chased too high (>95%); running hot end of window | Hold outlet ~860–890°C; accept 90–95% calcination; trim calciner fuel; inspect coating thickness |
| Swinging hot-meal calcination; periodic kiln flushes | Short solids residence time amplifying feed/fuel disturbances | Stabilize meal feed split and calciner fuel; resist reactive fuel moves; compare against long-residence design behavior |
| High CO at calciner outlet; CO spikes at preheater exit | Poor fuel/gas mixing or insufficient retention; late burnout | Check tertiary-air injection velocity and mixing-chamber condition; verify fuel fineness; extend retention if persistent |
| Lumps/coarse fuel accumulating in kiln inlet chamber | Missing or worn restricted orifice between kilin inlet and riser | Inspect/restore orifice geometry designed to block fall-through |
| Rapid ring growth around calciner and lower cyclones | Volatile imbalance (Cl/(SO₃+Na₂O+K₂O)); wall overtemperature zones | Track molar ratio on inputs; evaluate bypass (price it at 4–5 kcal/kg per 1%); consider dust-free-combustion calciner retrofit options |
| Tertiary air temperature well below 850°C | Cooler recovery degraded (thick bed faults, excess cooling air) | Fix cooler operation first; calciner stability follows tertiary air quality |
| Kiln exit O₂ drifting >7% (air-through systems) | Excess air pulled through kiln to feed calciner | Rebalance air paths; respect the ~35%-of-fuel ceiling for air-through calciners |
| Unexplained burning-zone upsets traced backward | Under-burned meal slugs from calciner misbehavior | Use kiln-inlet NOx (target band ~1,000–1,500 ppm) as the fast indicator; correct calciner before touching the kiln |
If your daily work involves this kind of decision-making, the master documents behind this article — including the complete Preheaters and Precalciners chapter, the KHD pyro-process course and the FLS kiln-systems reference — ship inside the cement technical package alongside the working spreadsheets.
FAQ — calciner questions answered
1. What does “calciner” mean?
A calciner is a vessel that performs calcination — the thermal decomposition of calcium carbonate into calcium oxide with release of CO₂. In a cement plant the word refers to the vertical, refractory-lined flash-reaction chamber between the suspension preheater and the rotary kiln, where ~90–95% of the raw meal’s limestone is decarbonated at about 850–900°C.
2. What is a calciner in a cement plant?
It is the second firing point of the pyroprocessing line: a tower vessel fed with pulverized fuel and hot tertiary air from the clinker cooler, in which entrained raw meal releases most of its CO₂ in suspension before dropping through the bottom cyclone into the kiln. It lets the kiln concentrate on sintering at ~1,450°C instead of doing all the heating work.
3. Is a precalciner the same as a calciner?
Yes — “precalciner” emphasizes that calcination happens before the kiln. Both terms describe the same vessel; suppliers add brand names (FLSmidth ILC/SLC, KHD PYROCLON, Polysius PREPOL) for their design families.
4. What temperature does a calciner operate at?
About 850–900°C at the gas outlet — the reference literature specifies 870–900°C for all precalciner types, and suppliers quote 860–890°C for 90–97% calcination. Running hotter accelerates coating and build-up in the calciner, bottom cyclone and inlet chamber, so the window is capped deliberately.
5. What is the chemical reaction inside the calciner?
Limestone decomposition: CaCO₃ → CaO + CO₂, strongly endothermic (~166 kJ/mol at reaction temperature). The reaction starts around 600°C but proceeds at industrial rates only at 800–900°C, with rate rising almost linearly from 800 to 880°C and suppressed by higher CO₂ partial pressure around the particles.
6. How much of the plant’s fuel is burned in the calciner?
Typically 55–65% (in-line) or 55–60% (separate line) of total fuel — about 60% overall for tertiary-air designs. Air-through systems are limited to roughly a third (classically ~35%; PYROCLON S up to 20%) because pushing that much air through the kiln would cool the main flame.
7. What percentage of the CO₂ is released in the calciner versus the kiln?
Since calcination is 90–95% complete at kiln entry, roughly nine-tenths of the process CO₂ (~520–540 kg per tonne of clinker — about 60% of the plant’s direct CO₂, the rest being fuel CO₂) is already released in the calciner/preheater circuit; the kiln finishes the last few percent of decarbonation and emits the fuel-derived CO₂ from its main burner.
8. What is the difference between an inline and a separate line calciner?
An inline calciner (ILC) is built into the kiln’s own riser duct, so kiln exhaust passes through it — simpler tower, natural reducing zone for NOx destruction, 55–65% fuel share. A separate line calciner (SLC) hangs on its own gas/meal string with its own bottom cyclone; kiln gas and calciner gas stay unmixed, combustion happens in pure hot tertiary air (good for low-volatile fuels), and the tower can be more compact — with 55–60% fuel share and wider kiln-gas bypass provision (up to 60%).
9. What is the tertiary air duct and why does it matter?
It is the refractory-lined duct carrying hot air (typically 850–1050°C, 18–25 m/s) from the clinker cooler directly to the calciner, supplying the oxygen and much of the sensible heat for calciner combustion. Its temperature is a bellwether: hotter tertiary air means more economical, more stable calcination — which is why calciner problems are sometimes cooler problems in disguise.
10. Why do calciners reduce NOx emissions?
Three ways: they burn at ≤900°C (little thermal NOx forms above ~1,300°C), they can host staged combustion with a CO-rich reducing zone that chemically strips oxygen from the NOx coming out of the kiln (2NO + CO → N₂ + CO₂), and they provide the oxidizing tail-off zone that prevents CO slip. Low-NOx designs achieve well under 500 mg/Nm³ NO₂ (at 10% O₂) without additive systems.
11. How long does gas and material stay inside a calciner?
Gas residence is seconds-scale: ~1.4–1.7 s in separate-vessel designs and 4–5 s in extended-duct systems, with ≥5.5–7 s specified for alternative-fuel or combustion-chamber layouts. Material residence is somewhat longer (swirl recirculation), but the design intent is the same: complete 90–97% calcination in under ~3 seconds of gas contact at normal meal fineness.
12. What is the calciner’s role in clinker quality?
Indirect but critical: a steady 90–95% calcination degree gives the kiln a uniform, easily sintered feed, so free-lime and liter-weight stabilize. Swinging calcination (short-residence designs, unstable fuel) shows up hours later as kiln flushes and quality excursions — which is why hot-meal LOI is a routine lab control.
13. Who invented the precalciner and when?
Conceptual ancestors date to 1896 (de Navarro’s patent for an autonomously fired pre-calcining cylinder), but the first modern precalciner — fuel and raw meal applied in an extended riser duct connecting kiln inlet to the lowest cyclone — was introduced by KHD (Germany) in 1965. FLSmidth’s Fuller In-Line Calciner followed commercially in 1976, and the technology spread worldwide through the 1970s–80s.
14. Does the calciner replace the rotary kiln?
No. The kiln remains irreplaceable for sintering — forming the clinker minerals C₃S/C₂S/C₃A/C₄AF needs ~1,450°C, a melt phase and tens of minutes, none of which a suspension calciner can provide. The division of labor is precise: calciner = decarbonation at 850–900°C in seconds; kiln = sintering at 1,450°C in minutes.
