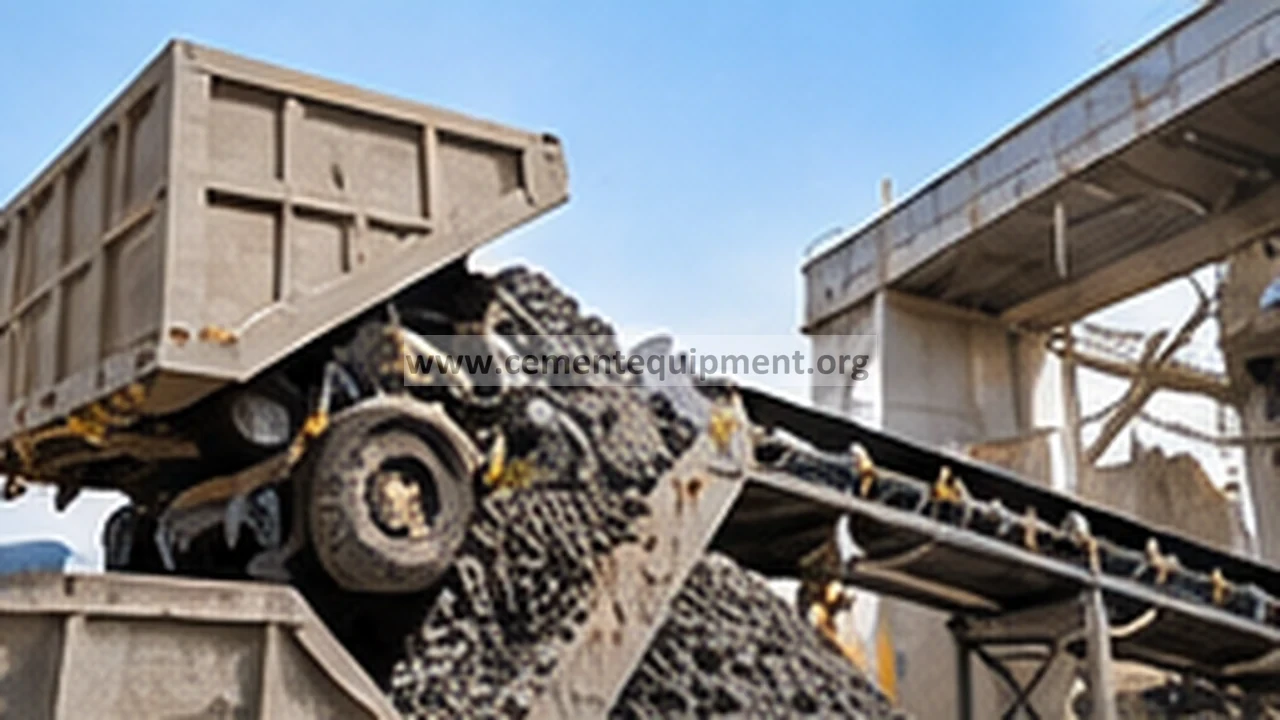

Dump truck feeding limestone and raw material onto a conveyor in a cement plant crushing section

Belt Conveyor Take-Up Travel Near Limit Under Stable Load: Diagnostic Guide

Previous Post
Next Post
Belt Conveyor Take-Up Travel Near Limit Under Stable Load: Diagnostic Guide
Belt Conveyor Take-Up Travel Near Limit Under Stable Load: Diagnostic Guide — technical visual from the Infinity media library. Image serial IMG-WP-022435.

Quick answer

When conveyor take-up travel approaches its permitted end position despite stable loading, measure the remaining stroke against the OEM minimum reserve and establish the travel trend before making any adjustment. Verify the take-up type, free movement, belt/splice condition and tension using an approved method. Stable motor current or the absence of audible slip does not establish safe belt tension. If remaining stroke or tension is outside the approved limit, follow the site’s shutdown and isolation procedure and correct the verified cause; do not increase take-up force, add counterweight or shorten the belt merely to recover travel.

Problem / Job

A belt conveyor operating under a steady load shows take‑up travel that is nearing the maximum travel limit indicated on the take‑up device. The belt is not slipping, the drive motor current is normal, and no abnormal noises are reported. The maintenance team must determine whether the condition is a normal, acceptable progression of belt stretch or an early sign of a developing fault that requires corrective action.

Evidence

Observed data include:

  • Take‑up travel reading near the maximum travel mark (record the measured reserve and compare with the OEM limit).
  • Identify the installed take-up type and establish whether an approved tension measurement or calculation is available; compare the resulting value with the relevant OEM design limits.
  • Drive-pulley slip is not established by the absence of current spikes or audible squeal. Check suitable drive and belt speed/slip monitoring data under approved operating conditions before ruling slip in or out.
  • Visual inspection shows no visible belt damage, no missing or damaged idler rollers, and the alignment of the belt path is within tolerance.
  • Where temperature data are available, compare drive and bearing temperatures against the documented baseline at comparable operating conditions; do not presume readings are normal without evidence.

Decision

Based on the evidence, decide whether to:

  1. Continue operation only when the measured remaining travel and belt tension meet documented OEM/site limits, the trend is stable, and an authorized risk assessment permits continued service; schedule a defined recheck rather than assuming routine re-tension is appropriate, or
  2. Keep the conveyor out of service if remaining travel or verified belt tension is outside the approved limit. After isolation and an engineering assessment, correct the confirmed cause using the OEM procedure; do not adjust the take-up solely to create apparent travel margin, or
  3. Investigate deeper for hidden causes such as gradual belt elongation, idler wear, or misalignment that could accelerate travel consumption.

The decision should be documented, and any corrective action must be verified against the acceptance criteria in Section 5.

Practical 7‑step workflow

  1. Secure the conveyor. Follow the site-approved isolation and lockout/tagout procedure, including drive and brake isolation. Identify and positively restrain or safely release stored gravitational, hydraulic, spring and belt-tension energy as applicable before approaching or adjusting the take-up; verify zero-energy state and prevent unintended belt or counterweight movement.
  2. Record baseline data. Document the measured take-up position and remaining stroke against the approved reference marks; record motor current, loading, speed and temperature only where reliable readings are available. Record belt-tension values only when obtained from calibrated instrumentation or an OEM-approved method appropriate to the installed take-up design; do not imply that tension can be directly measured at both pulleys. Photograph the take-up and record the date, operating condition and measurement uncertainty for comparison.
  3. Inspect the belt and path. Perform a visual walk‑around. Look for belt wear, splices, tracking issues, missing or damaged idlers, and any signs of contamination that could affect friction.
  4. Verify belt tension using the installed design. Identify whether the conveyor has a gravity, screw, hydraulic or winch take-up. Use an installed, calibrated load cell or an OEM-approved measurement or calculation method; do not assume belt tension can be measured directly at both pulleys with a handheld gauge. For a gravity take-up, check counterweight mass, reeving, friction and free travel against the design before interpreting tension. Record the measurement method, operating condition and OEM acceptance limits.
  5. Check take‑up device condition. Examine springs, hydraulic cylinders, or screw mechanisms for signs of fatigue, corrosion, or loss of preload. Verify that the adjustment mechanism moves freely and that any limit stops are not engaged.
  6. Correct the identified cause using the OEM procedure. Do not simply tighten the belt to create apparent travel reserve. For screw or hydraulic take-ups, make only authorized adjustments after controlling stored energy and confirm the specified tension and available stroke. For gravity take-ups, diagnose counterweight travel restrictions and belt/splice elongation; do not arbitrarily add weight or reposition a counterweight. Belt shortening, resplicing or replacement requires an engineered assessment and an approved maintenance plan.
  7. Validate and restore operation. After authorized inspection, reinstall all guards and restore protective devices; release LOTO only under the site’s approved procedure. Start the conveyor using its approved commissioning mode (do not assume variable-speed capability). Monitor belt tracking, motor current and take-up travel remotely or from protected observation points for the OEM/site-required representative operating period. Record measurements and confirm the acceptance criteria below before unrestricted service.

Diagnostic matrix

EvidenceLikely directionNext check
Take-up travel approaching the OEM minimum reserve, with independently verified tension within specificationProgressive elongation, splice movement, take-up geometry or restricted counterweight travel may be involved. Near-limit travel is not automatically acceptable even when tension is within specification.Measure remaining travel against the OEM minimum reserve and check the trend, belt/splice condition and take-up freedom. If reserve is below the approved limit, do not defer corrective action to routine maintenance.
Take‑up travel near max, tension below OEM specificationPossible insufficient take-up force, restricted take-up travel, belt/splice elongation, or incorrect tension measurement. Belt slip is a separate symptom to verify, not an automatic diagnosis.Validate the tension measurement method and operating condition; inspect counterweight/actuator force, take-up freedom, belt/splice condition and pulley traction. Correct the verified cause under the OEM procedure before considering belt replacement.
Take‑up travel near max, tension above OEM specificationPossible excessive take-up force, incorrect adjustment or counterweight configuration, restricted motion, or measurement/configuration error. High measured tension does not by itself prove component wear.Recheck the calibrated tension method and design operating condition; verify take-up settings, counterweight/actuator force, belt path and freedom of movement. Make only OEM-approved corrections after isolation and stored-energy control; replace components only when inspection establishes a defect.
Take‑up travel stable, but motor current spikesTransient loading, material accumulation, idler drag, drive-control changes or intermittent traction loss are possible; current spikes alone do not identify a cause.Time-align current, belt speed, feed rate and drive-control alarms; inspect idlers, pulley traction and tracking under the site-approved isolation and monitoring procedures.
Take‑up travel fluctuates during operationLoad variation, counterweight or take-up mechanism binding, measurement instability and thermal effects are competing hypotheses.Trend travel against load and temperature; inspect guideways, sheaves, actuator pressure and instrument calibration as applicable. Compare changes with the OEM’s allowed dynamic stroke.

Verification and acceptance criteria

All corrective actions must be verified against the following measurable criteria before the conveyor is returned to service:

  • The remaining take-up travel must meet the OEM-specified minimum reserve from the applicable end stop. Record the actual measured margin, measurement reference and OEM acceptance limit before returning the conveyor to service.
  • Verify belt tension using the installed take-up design, calibrated instrumentation or the OEM-approved calculation method. Record the measurement basis, relevant loading and operating state, and applicable design limits; do not assume direct tension measurement is possible at both pulleys.
  • Compare motor current with a documented baseline at comparable belt speed, load and operating conditions; investigate unexplained changes using the OEM and site-approved acceptance criteria rather than an assumed universal percentage.
  • During a site-approved representative operating trial, verify tracking, drive slip protection, vibration and abnormal noise against the conveyor’s baseline and OEM/site criteria. Set the trial duration from the approved commissioning procedure; do not assume a universal number of belt passes.
  • All LOTO devices must be removed only after a final visual confirmation that the take‑up adjustment mechanism is locked in its final position and that no tools or personnel remain in the hazard zone.

Document each measurement, the date, the personnel performing the verification, and sign‑off by the responsible maintenance supervisor.

Common mistakes and repeat‑failure traps

  • Adjusting without tension verification. Changing the take‑up position without first confirming belt tension can mask an underlying stretch problem and lead to premature belt failure.
  • Ignoring gradual travel trends. Treating a single near‑limit reading as an isolated event may miss a slow‑building belt elongation that will exceed limits within a few operating cycles.
  • Over‑tightening the belt. Adding excessive preload to gain travel margin can increase bearing loads, generate heat, and accelerate belt wear.
  • Skipping LOTO. Performing adjustments while the drive is energized creates a high‑risk environment for sudden belt movement or take‑up device release.
  • Failing to inspect the take-up mechanism. Do not assume springs, hydraulic actuators, guideways or counterweight travel are sound from motor-current trends alone. Inspect applicable components only under the approved isolation and stored-energy control procedure; never touch, loosen or dismantle a tensioned mechanism merely to check its condition.
  • Neglecting documentation. Not recording baseline measurements makes trend analysis impossible, reducing the ability to predict when the belt will reach its end‑of‑life stretch.

Addressing these pitfalls proactively reduces repeat‑failure cycles and extends the service life of the conveyor system.
