Quick answer
When a rotary kiln’s shell ovality exceeds the OEM‑specified tolerance, the resulting uneven support can concentrate loads on the refractory lining, accelerating wear, cracking, and eventual failure. Verify ovality with calibrated laser or mechanical gauges, compare the reading to the kiln‑specific limit, and, if out‑of‑tolerance, follow a systematic isolation, inspection, and corrective‑action workflow before resuming operation.

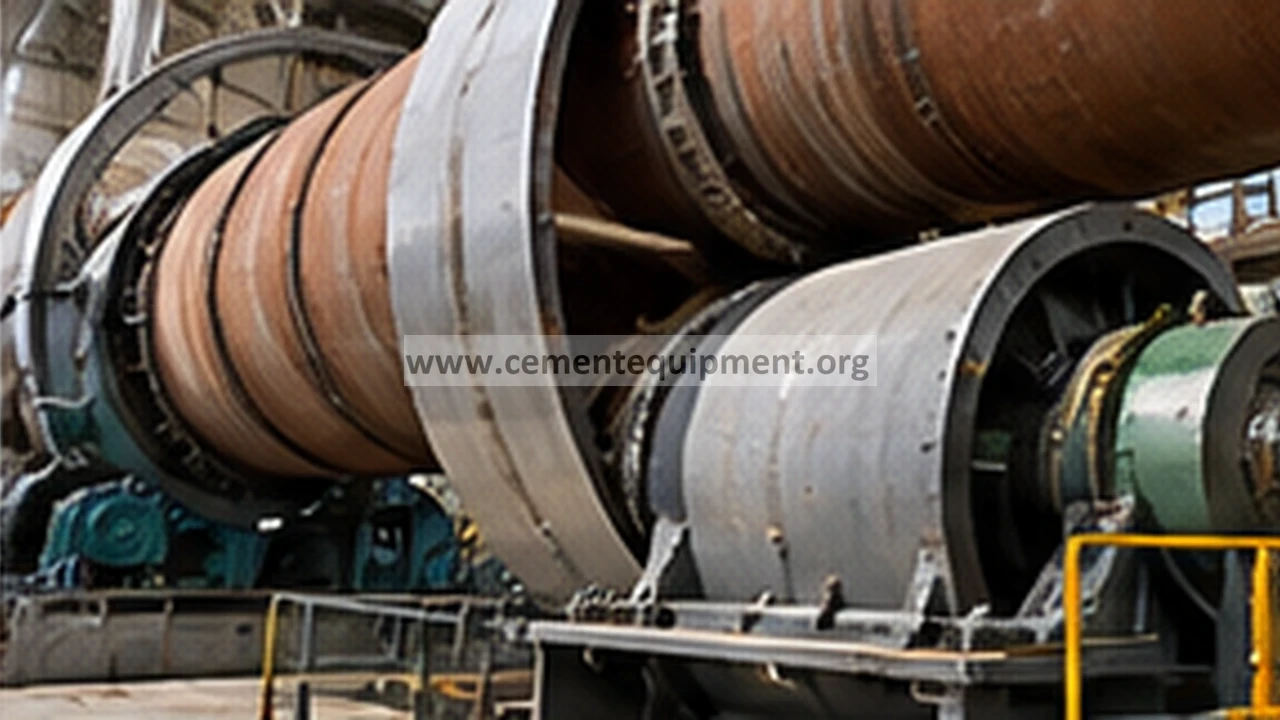

Problem / Job
During routine maintenance a field engineer recorded an elevated ovality reading on a 4‑meter‑diameter rotary kiln. The concern is whether the measured deviation threatens the integrity of the refractory lining and could lead to unplanned downtime.
Evidence
Field data: laser‑based ovality measurement of 3 mm at the 12‑o’clock position, 2 mm at 6 o’clock, and a nominal 0.5 mm at 3 o’clock. Visual inspection shows minor spalling near the high‑oval region, but no active cracks. Historical logs indicate the kiln has operated for 18 months since the last refractory rebuild.
Decision
Determine if the measured ovality is beyond the OEM‑approved tolerance, assess the risk to the refractory, and decide whether immediate corrective action, monitoring, or a full refractory repair is required.
7‑Step Diagnostic & Mitigation Workflow
- Secure the kiln. Initiate a full shutdown, confirm that the kiln is at ambient temperature, and apply LOTO per plant lockout‑tagout procedures. Verify that all drive, feed, and exhaust systems are isolated and tagged.
- Gather baseline data. Retrieve the OEM’s ovality tolerance chart and the most recent internal inspection reports. Record the current operating parameters (speed, load, temperature) for later comparison.
- Perform calibrated ovality measurement. Use a laser scanner or a calibrated mechanical gauge to measure the shell at four quadrants (12, 3, 6, 9 o’clock). Document each reading, the measurement method, and the instrument calibration status.
- Compare to OEM limits. If the measured deviation exceeds the OEM‑specified maximum (or the site‑specific limit if documented), flag the condition as “out‑of‑tolerance.” If the reading is within tolerance, proceed to monitoring (step 7).
- Inspect refractory condition. With the kiln isolated under the plant’s approved procedure, inspect accessible evidence of shell and refractory condition using the site/OEM-approved inspection method. Do not remove structural shell components solely for this diagnostic. Record observed spalling, cracking, hot-shell evidence, and measurement locations with photographs and notes.
-
Determine corrective action. Based on the refractory condition:
- If inspection shows localized superficial spalling and ovality is only marginally outside the documented limit, have the condition assessed against the refractory design and OEM/site criteria before selecting a localized repair or shell-correction plan.
- If inspection shows deep cracking, loss of support, or extensive spalling, escalate for engineering assessment and select the repair scope from the refractory design, shell condition, and OEM/site criteria.
- Validate and release. After corrective work, repeat the ovality measurement to confirm compliance. Conduct a non‑destructive refractory integrity test (e.g., ultrasonic or infrared thermography) if available. Remove LOTO only after documented verification and sign‑off by the maintenance supervisor and the process engineer.
Diagnostic Matrix
| Evidence | Likely Direction | Next Check |
|---|---|---|
| Ovality ≤ OEM limit, no visual refractory damage | Low risk – continue operation, schedule periodic monitoring | Re-measure ovality at the site-approved monitoring interval and inspect again at the next planned shutdown |
| Ovality marginally exceeds OEM limit (≤ 1 mm over), minor spalling | Moderate risk – localized support loss, potential for accelerated wear | Perform localized refractory patch; re‑measure ovality after patch; monitor temperature profile |
| Ovality exceeds the OEM or site-approved limit, or inspection finds significant cracking or spalling | High risk – structural support compromised, imminent refractory failure | Plan full‑section refractory rebuild; consider shell straightening; conduct engineering stress analysis |
| Ovality within limit but temperature hotspots detected in the same quadrant | Potential thermal distortion not yet reflected in geometry | Investigate cooling water flow, burner alignment; repeat ovality measurement after thermal stabilization |
| Inconsistent measurements between laser and mechanical gauge | Measurement error or instrument calibration issue | Re‑calibrate instruments; repeat measurement with a third method if available |
Verification & Acceptance Criteria
All corrective actions must be verified against the following measurable criteria before the kiln is returned to service:
- Ovality compliance: Measured deviation at each quadrant must be equal to or less than the OEM‑specified maximum (or the site‑specific limit documented in the maintenance plan).
- Refractory integrity: No visible cracks deeper than the thickness of the refractory backing material; spalling depth shall not exceed the repair‑patch thickness.
- Temperature uniformity: Infrared or thermocouple trends should return to the kiln’s established healthy baseline and remain within the OEM or site-approved operating envelope during a controlled test run.
- Mechanical stability: Vibration monitoring during the first 30 minutes of operation shall remain within the baseline RMS vibration envelope recorded for the kiln when in good condition.
- Documentation: All measurement logs, inspection photos, corrective‑action work orders, and sign‑offs must be filed in the equipment history system.
Common Mistakes & Repeat‑Failure Traps
- Skipping LOTO: Performing measurements or refractory removal while the kiln is still energized can lead to personal injury and inaccurate data due to thermal expansion.
- Relying on a single measurement method: Laser scanners can be affected by surface emissivity; mechanical gauges can miss localized bulges. Use at least two independent methods.
- Ignoring OEM‑specific tolerances: Applying generic “5 mm” limits without confirming the kiln’s design parameters can result in unnecessary shutdowns or missed failures.
- Delaying corrective action: Minor spalling combined with out‑of‑tolerance ovality often progresses rapidly; postponing repairs increases the likelihood of full‑section failure.
- Inadequate post‑repair verification: Returning to service without re‑measuring ovality or confirming refractory patch integrity leads to recurring hot spots and repeat shutdowns.
- Over‑tightening shell clamps during re‑rounding: Excessive clamping can introduce new stresses, creating additional ovality in adjacent quadrants.
- Failing to update the maintenance database: Future diagnostics rely on accurate historical data; missing entries obscure trend analysis and can cause repeat misdiagnosis.
