Quick answer

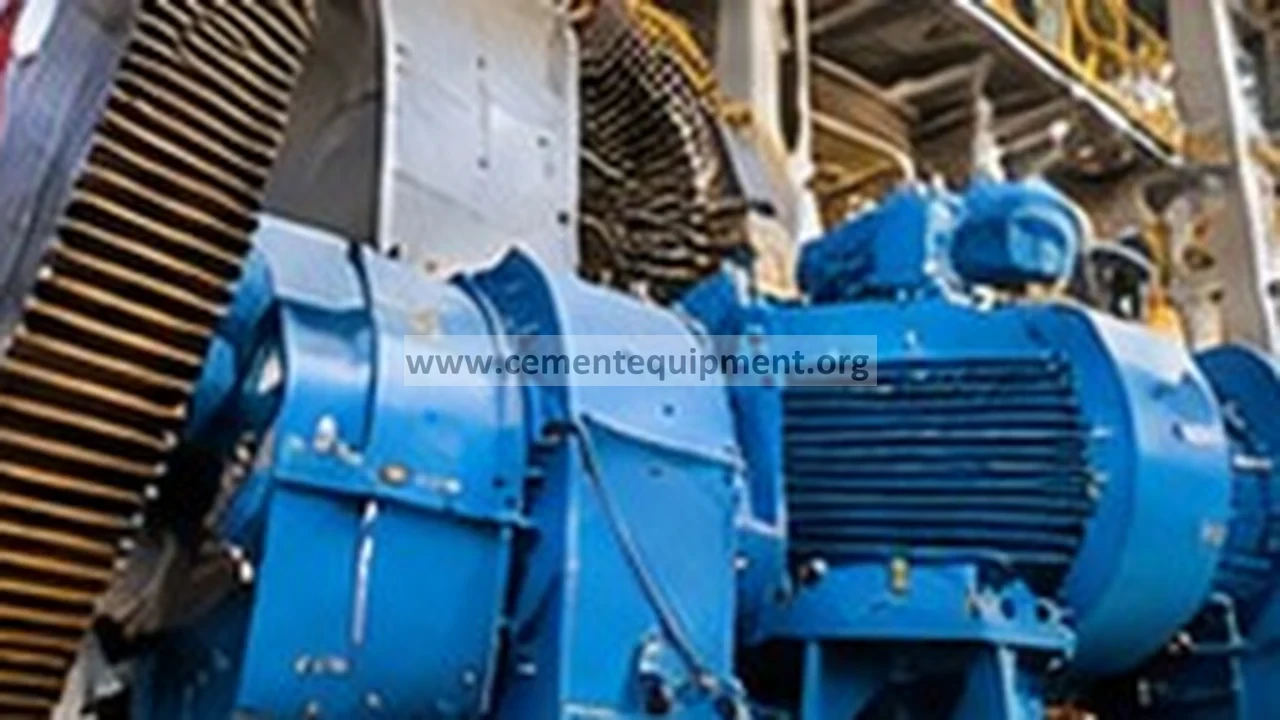

Kiln main-drive current that rises and falls once per kiln revolution is strong evidence of a repeating mechanical or load condition tied to angular position. Correlate motor current with kiln revolution marker, shell position, girth-gear mesh, tyre/roller behavior, coating/material movement and axial position. Typical causes include gear eccentricity/runout, tyre or support-roller load variation, shell ovality, localized internal coating or mechanical interference.
Problem / job
Main-drive current repeats a distinct peak and valley at approximately one cycle per kiln revolution.
Evidence
Capture current/torque, kiln rpm, a once-per-revolution position reference, vibration, girth-gear condition, roller loads/temperatures and process stability.
Decision
Separate angular mechanical load from process surging, electrical/VFD behavior and measurement error.
As-found evidence capture
Trend drive current over multiple revolutions and add a reliable angular reference if the plant has one. Confirm that the peak returns at the same kiln position rather than merely at a similar time interval. Record kiln speed, feed, fuel and process stability so process-driven torque changes can be excluded.
Note whether the current peak corresponds with gear vibration/noise, a support-roller event, shell movement or visible tyre/roller behavior. Repeated angular correlation is a powerful localization tool.
Field sequence before changing drive or alignment settings
- Trend motor current or drive torque for at least several complete kiln revolutions at stable production.
- Add one reliable once-per-revolution angular reference and prove the current peak returns at the same shell position.
- Compare phase currents, drive torque and speed feedback so an electrical measurement/control problem is not mistaken for mechanical load.
- Record the angular position of the current peak using approved non-intrusive measurements during authorized operation. Perform hands-on girth-gear, backlash, tooth-contact and lubrication inspections only after shutdown, verified hazardous-energy isolation and lockout/tagout, following OEM and plant procedures.
- Compare support-roller temperature/contact and kiln axial position over the same revolutions.
- Review kiln feed, speed, coating/ring indications and material movement so process torque is separated from rotating geometry.
- Correct only the evidence-supported mechanism, then repeat the synchronized trace under the same load.
Go/no-go rule: do not alter VFD tuning or kiln alignment simply because current oscillates. First prove whether the waveform is locked to kiln angular position and identify the mechanical or process feature at that position.
Seven-step diagnostic workflow
1. Verify the once-per-revolution relationship
Calculate the expected revolution period from kiln rpm and compare it with the current waveform. If the oscillation frequency follows changes in kiln speed, a mechanical angular cause becomes more likely.
2. Verify the electrical signal
Compare phase currents, VFD torque and motor current. Review drive alarms and speed feedback. An electrical-control oscillation may not remain locked to kiln angular position.
3. Inspect girth gear and pinion
Review approved non-intrusive gear-condition observations during authorized operation. Conduct physical runout, contact-pattern, backlash, tooth-condition and lubrication inspections only after shutdown and verified hazardous-energy isolation and lockout/tagout, following OEM and plant procedures. A mesh condition that changes around the circumference can create repeating torque demand.
4. Correlate with support rollers and tyres
Observe roller contact, temperatures and axial behavior. Tyre eccentricity, shell deformation or load redistribution can create a periodic rolling resistance change.
5. Review shell ovality and localized mechanical interference
Use established kiln inspection methods to evaluate ovality/runout where indicated. Check seals, guards and nearby equipment for signs of periodic contact.
6. Separate internal process load
Localized heavy coating, rings or material movement can also vary torque. Compare current peaks with process indicators and known internal condition. Do not diagnose internal coating solely from motor current without supporting evidence.
7. Verify after corrective work
Trend multiple revolutions after alignment, gear, roller or process correction. Confirm the once-per-revolution current component reduces while kiln speed and process remain stable.
Evidence-to-decision table
| Evidence | Likely direction | Next check |
|---|---|---|
| Current peak locked to same angular position | Mechanical/localized load | Gear, tyre, roller, shell and internal condition |
| Frequency follows kiln rpm exactly | Rotational mechanical source | Runout and once-per-rev inspections |
| Current oscillates independently of position | Process or drive-control issue | VFD, feed/fuel/process trends |
| Peak coincides with gear vibration/noise | Gear mesh/runout issue | Backlash, contact, runout |
| Peak coincides with roller load/temperature change | Tyre/roller/shell load variation | Alignment and shell geometry |
Build a synchronized once-per-revolution trace
The most useful test is not a single current value but a synchronized trace over several complete kiln revolutions. Record motor current or drive torque together with kiln speed and one reliable angular reference. Mark where the peak occurs on every revolution. A repeatable peak at the same shell position strongly supports a rotating mechanical source; a peak that drifts relative to shell position points more toward process variation, drive-control behavior or an unreliable position reference.
Overlay vibration, gear noise observations, support-roller temperatures and kiln axial-position data where available. If the torque peak occurs with a gear-mesh vibration increase, investigate girth-gear runout, backlash variation and tooth/contact condition around the full circumference. If it aligns instead with a roller-load or tyre-contact change, focus on support geometry and shell/tyre behavior.
Distinguish gear eccentricity from process torque variation
Gear eccentricity or runout normally creates a repeatable angular pattern even when production conditions are steady. Process torque variation is more likely to correlate with feed, coating fall, ring interaction or material movement and may not stay locked to exactly the same angular position. Review kiln feed, speed, fuel and relevant process trends during the same window before assigning the cause.
During shutdown, inspect more than one convenient gear position. Check contact pattern, lubrication distribution, visible tooth condition and backlash/runout according to the installed drive procedure. Preserve the measured angular position of any abnormality so it can be compared with the operating current peak after restart.
Return-to-service acceptance criteria
Accept the correction when drive current is stable through repeated revolutions at representative production, gear and roller condition are satisfactory, vibration and temperatures remain controlled and no abnormal axial or shell movement is observed. Use OEM and plant limits for drive loading and gear/roller acceptance.
For final verification, compare at least several consecutive revolutions at a stable production condition and retain the synchronized trend as a maintenance baseline. The correction is stronger when the repeating torque component decreases without creating new vibration, gear-contact, bearing-temperature or kiln-axial-position problems. If the current peak remains locked to the same angular position after one suspected defect is corrected, continue the angular-correlation method rather than changing unrelated drive settings.
Common mistakes
Do not average away a repeating once-per-revolution signal. Do not blame the VFD before checking angular correlation. Do not adjust kiln alignment from motor current alone. Do not assume one gear inspection point represents the full circumference. Finally, preserve synchronized current and position data before shutdown because it can locate the fault.
