Kiln Inlet section casting procedure

our Page always share practical advice and tasks , where you can finish reading the post and begin instantly to apply what you have learned from this post , if you want to download all the practical manuals and notes from most successful companies in the world click here now

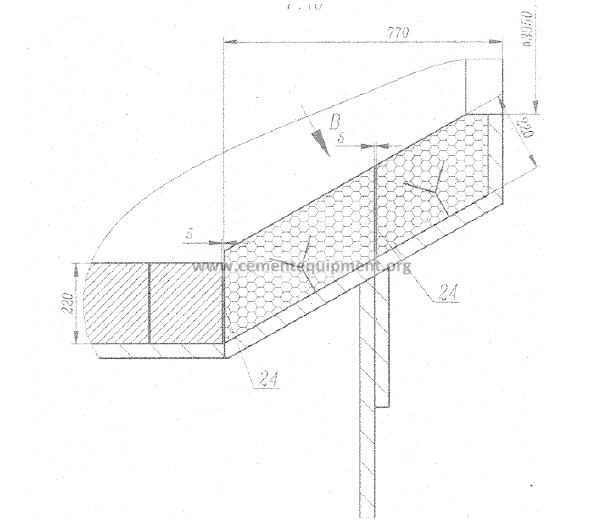

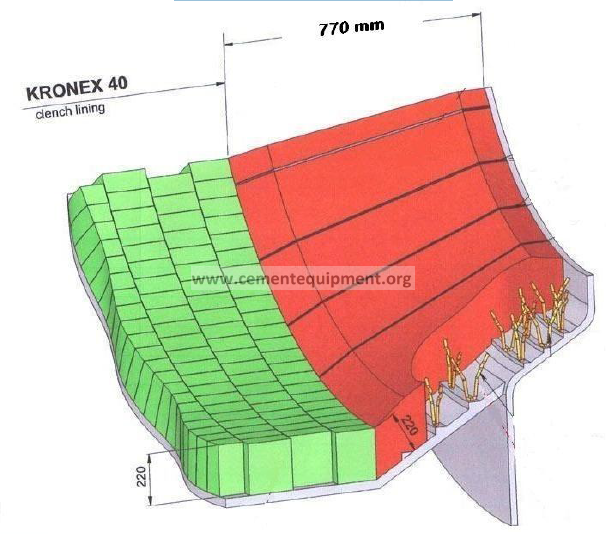

LEC kiln Inlet section

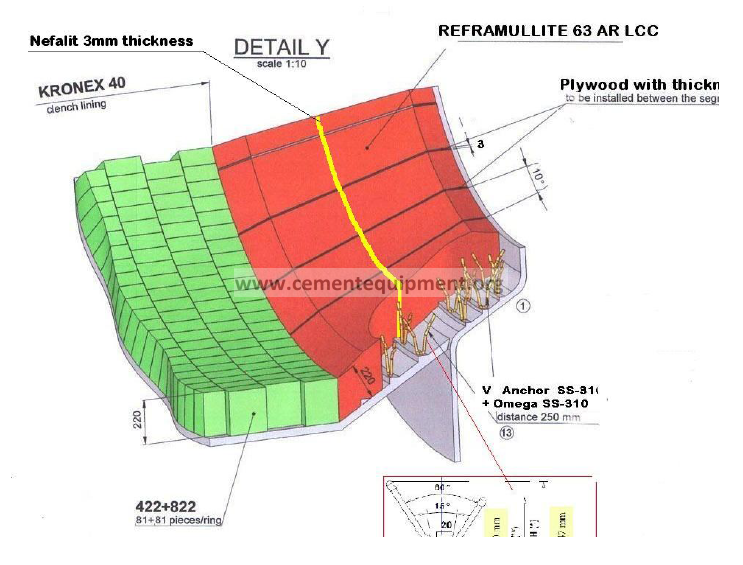

Design Description

1) Kiln Inlet Plates:
Nose-ring plates casting area = 80 mm
Expansion Joint = On Radial 3.0 mm Rigid Board (Nefalit)
On Axial 3.0 mm ply wood
Type of Castable = REFRAMULLITE 63 AR LCC

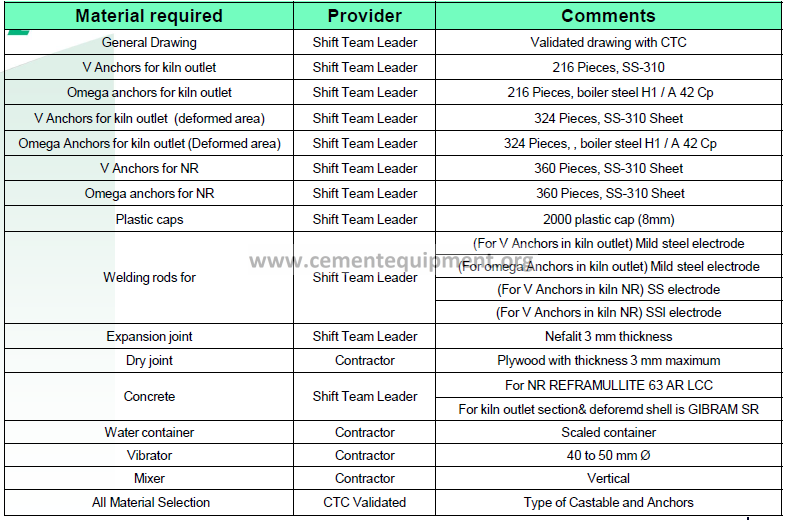

Material

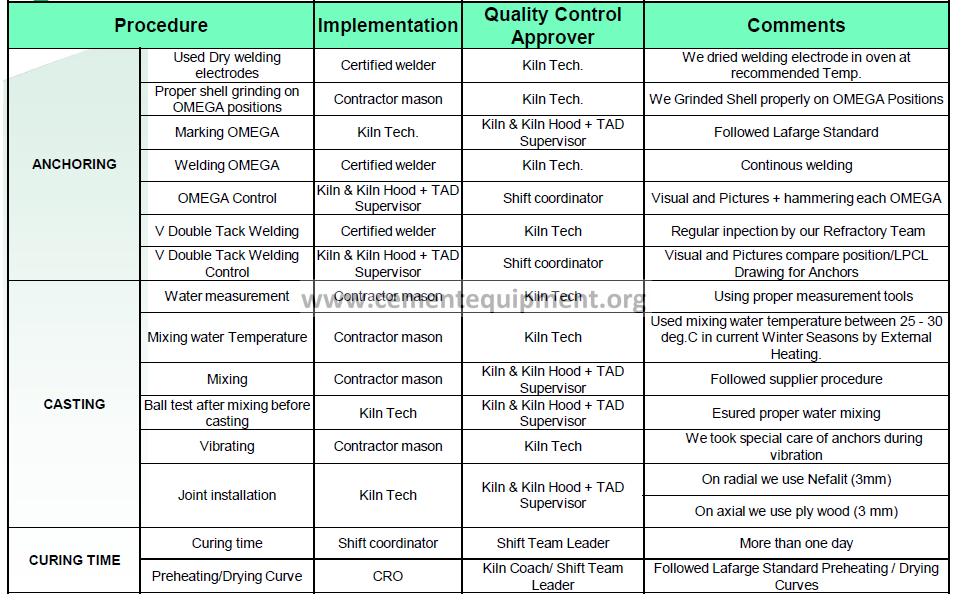

Procedure and Quality Control

LEC kiln outlet section

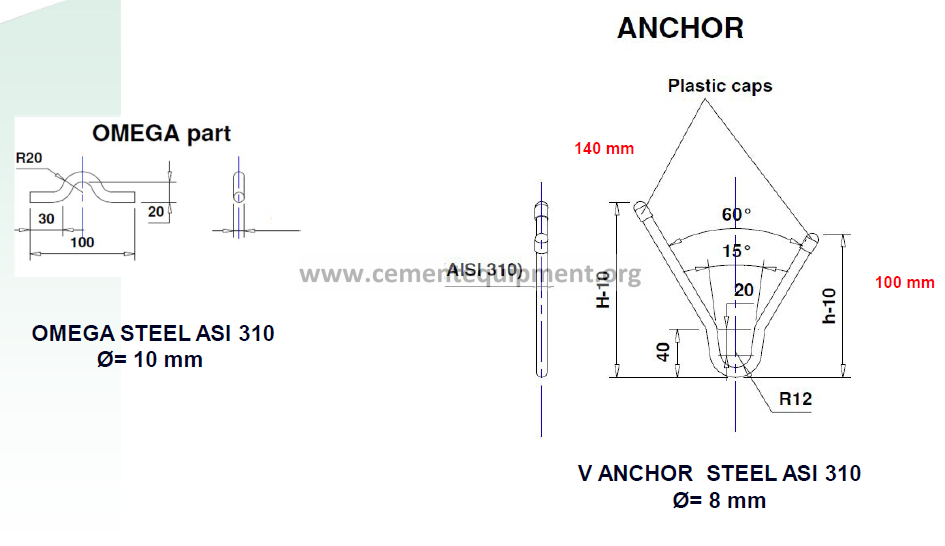

Anchors dimensions of kiln inlet sector
