Heat Balance of Kiln







I worked in more than 100 cement plant

the Below Figures is the average values , you can use it for bench-marking in your plant , please share in the Comments the figures in your plant even if you will keep the name of the plant as a secret



let’s begin

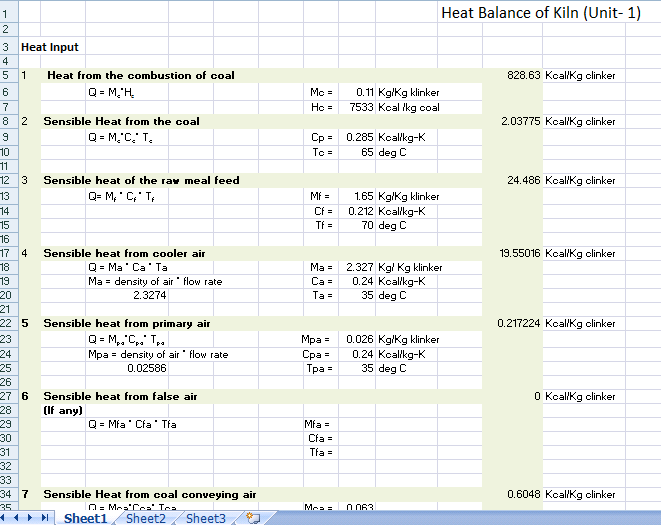

Heat Input

Heat from the combustion of coal



Sensible Heat from the coal



Sensible heat of the raw meal feed

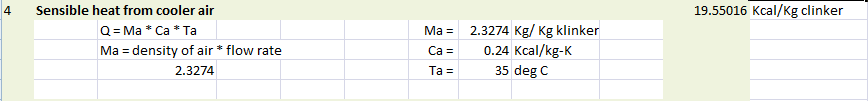

Sensible heat from cooler air

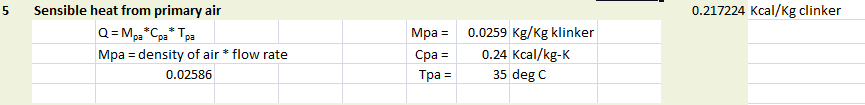

Sensible heat from primary air

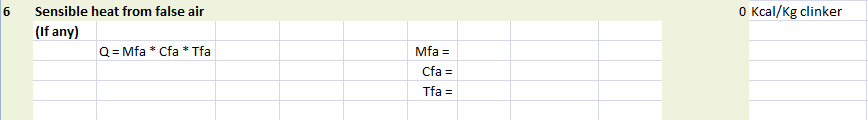

Sensible heat from false air

Sensible Heat from coal conveying air

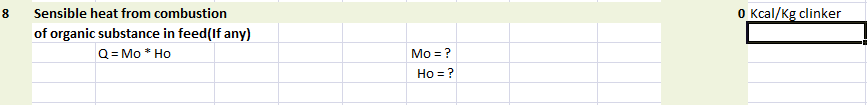

Sensible heat from combustion

Sensible Heat from the moisture in the feed



TOTAL INPUT HEAT = 876 KCAL/KGCLINKER



Heat Output

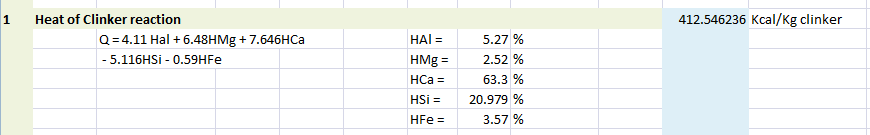

Heat of Clinker reaction

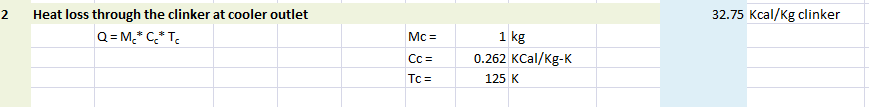

Heat loss through the clinker at cooler outlet

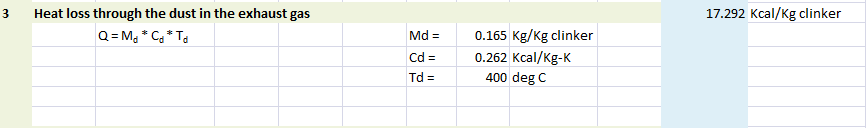

Heat loss through the dust in the exhaust gas

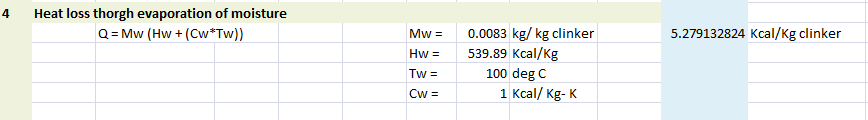

Heat loss through evaporation of moisture



Heat loss from exhaust gases

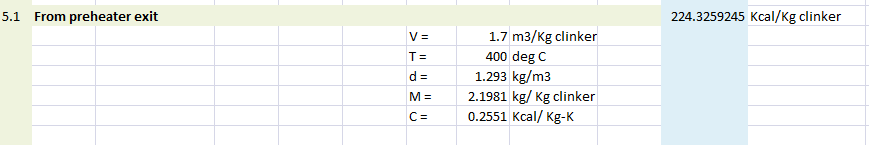

From preheater exit

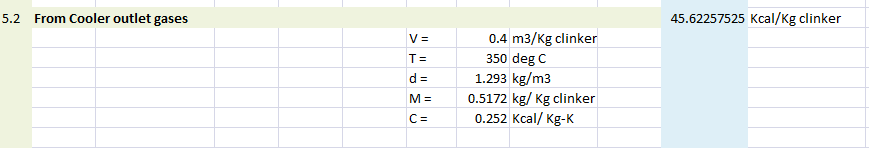

From Cooler outlet gases

Unaccounted losses



TOTAL OUTPUT = 876.103434 Kcal/Kg clinker



PLEASE SHARE YOUR RESULTS
