Quick answer
If fan vibration increases after impeller cleaning, treat the maintenance intervention as the first clue. Uneven residual deposits, damaged blades, removed balance weights, water trapped in hollow sections, disturbed coupling/alignment, loose hardware or a shifted sensor can all raise vibration. Compare vibration spectrum/phase before and after cleaning, inspect the full impeller circumference, verify balance-weight condition and confirm the fan was reassembled exactly as designed.
Problem / job

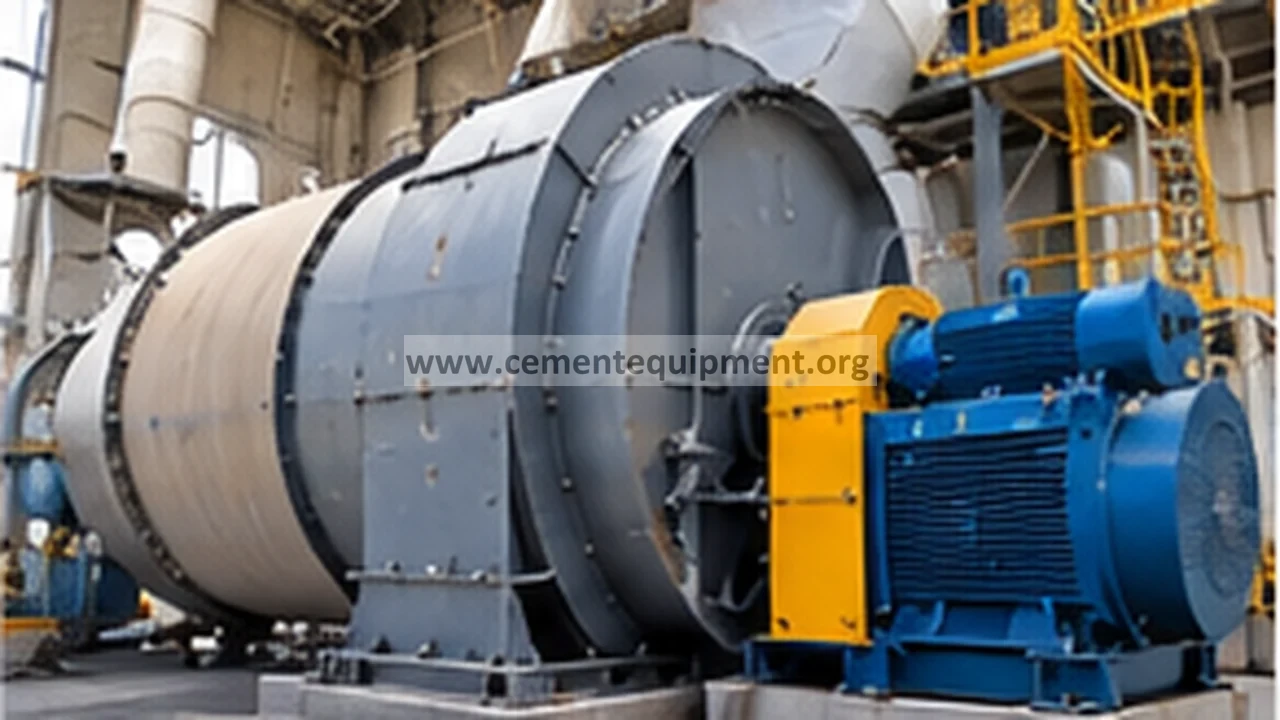

A cement-process fan that ran acceptably before shutdown shows higher 1× or broadband vibration immediately after impeller cleaning.
Evidence
Capture vibration amplitude/spectrum/phase, fan speed, bearing temperatures, motor current, cleaning method, blade condition, balance weights and coupling/alignment records.
Decision
Separate new imbalance or assembly error from bearing damage, looseness, alignment change and sensor/mounting issues.
As-found evidence capture
Preserve the vibration condition before another cleaning, rebalance or alignment change. Record overall vibration, spectrum, phase, speed, load, bearing temperatures and motor current using the same measurement points/directions used before shutdown. Document the cleaning method, areas accessed, any fan/motor movement and whether balance weights or blade repairs were disturbed.
Before inspecting the impeller, stop the fan, isolate and lock out all relevant electrical and mechanical energy sources, control stored or residual energy (including rotor movement), and verify a safe zero-energy state. Then inspect the full impeller circumference. Uneven residual deposits, missing balance weights, trapped wash water, blade damage or one newly clean sector beside still-coated sectors can create a larger unbalance than existed before cleaning.
Post-cleaning balance checklist
- Compare vibration at the same speed, load, points and directions as the pre-cleaning baseline.
- Inspect all blades and backplate areas for uneven residual buildup.
- Confirm balance clips, welded plates or correction weights remain intact.
- Check blades for erosion, cracks, bends, holes or trapped liquid/material.
- Verify coupling alignment and soft-foot/hold-down condition if access work moved the fan or motor.
- Check bearing temperature, lubrication and pedestal/foundation tightness.
- Verify sensor orientation, mounting and cable condition after maintenance.
- Use spectrum and phase evidence before adding any new correction weight.
Go/no-go rule: do not field-balance until cleaning completeness, existing balance weights, structural tightness, sensor validity and alignment are proven.
Seven-step diagnostic workflow
1. Confirm the vibration change is real
Compare the same measurement points, direction, speed and operating load with the pre-cleaning baseline. Review sensor signals and mounting records first; before touching a sensor, cable, guard or rotating assembly, stop the equipment, apply the approved lockout/tagout procedure and verify a safe zero-energy state. Check sensor mounting and cable condition before mechanical conclusions.
2. Identify the dominant vibration component
A strong 1× component often points toward imbalance, while looseness, misalignment or bearing faults create different spectral/phase patterns. Use the plant’s vibration-analysis standard.
3. Inspect for uneven residual buildup
Cleaning can remove deposits from only part of the wheel, leaving a more unbalanced rotor than before. Inspect all blades and backplate surfaces only after the fan is stopped, all relevant hazardous-energy sources are locked out, residual energy is controlled and a safe zero-energy state is verified.
4. Check balance weights and blade damage
Verify no balance weight, clip or weld was removed/damaged during cleaning. Look for bent blades, erosion holes, cracks and material trapped in cavities.
5. Review coupling and alignment disturbance
If the motor, fan casing or coupling was moved for access, verify alignment and soft-foot/hold-down condition. A fan can leave shutdown with both cleaner blades and worse alignment.
6. Check bearing and structural condition
Inspect bearing temperatures, lubrication, foundation bolts, pedestal looseness and casing supports. High-pressure cleaning or maintenance activity can disturb sensors and hardware.
7. Verify balance after correction
After cleaning/reassembly corrections, trend vibration at representative speed/load. If imbalance remains, use the plant/OEM balancing procedure rather than adding trial weights without analysis.
Evidence-to-decision table
| Evidence | Likely direction | Next check |
|---|---|---|
| 1× vibration rises immediately after cleaning | Residual buildup or balance change | Impeller inspection and balance weights |
| Axial vibration rises after access work | Alignment/coupling issue | Alignment and coupling |
| Vibration plus loose pedestal evidence | Structural looseness | Bolts, base and supports |
| Sensor reading changes but independent measurement normal | Sensor/mounting problem | Transducer and mount |
| Vibration continues increasing with bearing temperature | Bearing/mechanical damage | Condition-monitoring/OEM review |
Return-to-service acceptance criteria
Verify the fan under representative process load:
- Record horizontal, vertical and axial vibration at the same points used for the baseline.
- Confirm the dominant 1× component and overall vibration have returned toward the accepted machine/OEM baseline.
- Verify bearing temperatures remain stable and no new axial or broadband component appears.
- Confirm coupling/alignment, foundation/hold-down hardware and sensor mounts remain secure.
- Run long enough to prove the vibration trend is stable rather than temporarily low after startup.
- Save the final spectrum/phase data and any balance correction as the new maintenance baseline.
Use the fan/OEM and plant vibration standard for numerical acceptance limits; do not apply a generic value across different fan sizes and support arrangements.
Common mistakes and repeat-failure traps
- Assuming a clean wheel is balanced: partial cleaning can increase unbalance.
- Adding trial weights without phase analysis: correction weights must be based on proper balancing evidence.
- Removing an existing balance weight during cleaning: preserve and inspect all correction weights before restart.
- Ignoring trapped water or material: retained mass in a hollow or pocket can create a new 1× fault.
- Comparing different speeds or sensor points: use matched conditions and measurement locations.
- Blaming imbalance for every vibration increase: cleaning access can also disturb alignment, bases, bearings and sensors.
