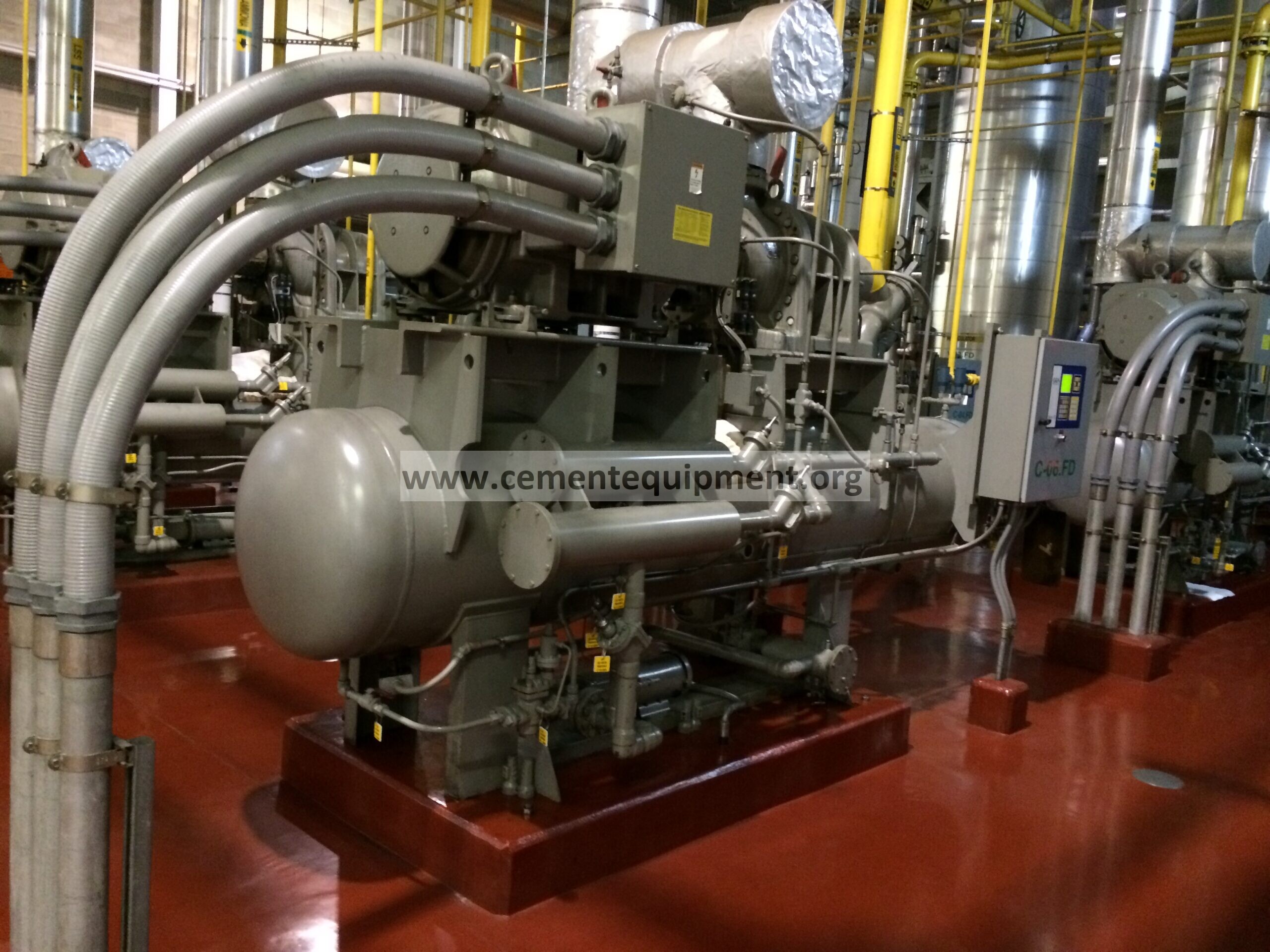

If oil carry‑over rises after a separator element change, the first suspicion should be the new element and its associated scavenge path, not internal compressor wear. Typical root causes include installing an element that does not match the OEM‑specified media or geometry, damaged or missing seals that permit oil‑laden air to bypass the media, a scavenge tube that is blocked, mis‑routed, or incorrectly sized, an oil level that exceeds the OEM‑approved limit, abnormal differential pressure across the separator, or operating conditions (high temperature, foaming oil, excessive load) that overwhelm the separator’s capacity. The most reliable diagnostic data are oil consumption trends and separator differential pressure, not just visual oil in downstream filters.
Problem / job
After a routine separator element replacement, downstream compressed‑air lines exhibit increased oil mist, filter housings foul more quickly, and the plant records a rise in oil consumption. The maintenance team must determine whether the new element, its installation, or ancillary systems are responsible before scheduling costly compressor overhauls.
Evidence
Collect the exact part number and revision of the installed element, the service date, and any immediate change in oil consumption. Record separator differential pressure (DP) at normal operating load, oil level as measured under the OEM‑specified shutdown condition, oil temperature, compressor load profile, and the condition of the scavenge line (tube, orifice, check valve). Capture downstream filter condition, condensate drain observations, and any recent oil‑change records.
Decision
Separate faults that are directly attributable to the separator installation (wrong element, seal failure, scavenge blockage, over‑fill) from broader issues such as oil foaming, excessive compressor loading, or internal wear. Use the evidence hierarchy to prioritize corrective actions that can be verified quickly and safely.
Seven‑step diagnostic workflow
1. Isolate and secure the compressor
Before any physical inspection, follow plant lock‑out/tag‑out (LOTO) procedures: shut down the compressor, depressurize the air receiver, isolate power and control circuits, apply lockout devices, and post tags indicating “Do not restart – separator inspection in progress.” Verify zero pressure with a calibrated gauge before proceeding.
2. Verify separator element specification
Compare the installed element’s part number, media type, and geometry against the OEM‑approved list for the specific compressor model. An element that physically fits may have a different pore size, surface area, or coating that reduces separation efficiency. If the part does not match, replace it with the correct OEM‑specified element before any further testing.
3. Inspect element seating and sealing surfaces
Remove the separator housing only after confirming isolation. Examine the gasket, O‑rings, and any grounding plates for cuts, compression set, or foreign material. Re‑install the element using the torque values and sequence recommended by the OEM. Improper seating creates a bypass path that allows oil‑laden air to exit the separator unfiltered.
4. Examine the scavenge line and return path
With the housing open, trace the scavenge tube from the separator outlet to the oil sump. Look for blockages (solidified oil, debris), kinks, or incorrect routing that could prevent oil from returning. Verify that the scavenge orifice size matches the OEM drawing; an oversized or undersized orifice changes the flow balance and can cause re‑entrainment of oil into the discharge stream.
5. Confirm oil level and oil‑temperature conditions
Measure the oil level with the compressor at the OEM‑specified shutdown temperature (often the “cold‑fill” condition). Over‑filling adds a larger oil head that the separator must handle, increasing carry‑over. Likewise, oil that is too hot reduces viscosity and can promote foaming. Adjust the level if it exceeds the recommended maximum and allow the oil to cool to normal operating temperature before restarting.
6. Record separator differential pressure and compare to baseline
After completing the isolated work, reassemble and secure all housings and guards. Authorized personnel must release lockout/tagout under the site’s procedure before a controlled restart. At a comparable operating load and temperature, record separator differential pressure from the approved installed measurement points. Elevated DP may indicate excessive resistance across the separator element; low DP with high oil carryover may suggest an element bypass, but neither reading alone proves a specific cause. Investigate scavenge return separately using the OEM diagnostic procedure. Compare readings with the OEM limits and a valid operating baseline.
7. Validate oil consumption and downstream oil evidence
Under approved operating conditions, trend oil consumption over a representative interval consistent with the OEM and site monitoring method; compare like-for-like load, temperature and measurement conditions. Inspect downstream filters, condensate drains and oil-mist monitoring evidence through safe approved inspection points. Verify separator differential pressure and oil temperature remain within the applicable OEM limits. Stop and investigate persistent abnormal oil carryover rather than declaring the equipment fit for service on the basis of a single reading.
Evidence‑to‑decision matrix
| Evidence | Likely direction | Next check |
|---|---|---|
| Carry‑over spikes immediately after element change | Element specification or installation error | Verify part number, seating, and seals |
| High DP with normal carry‑over | Restricted media or clogged scavenge | Inspect element condition and scavenge line |
| Low DP but high carry‑over | Bypass due to poor seal or wrong element geometry | Re‑examine seals, gasket compression, element fit |
| Oil level above OEM limit + increased carry‑over | Over‑fill causing excess oil burden | Drain to correct level, verify fill procedure |
| Scavenge line visibly blocked or mis‑routed | Oil return failure leading to re‑entrainment | Clear blockage, confirm correct routing and orifice size |
| Foamy oil observed in sump or after oil change | Foaming reduces separation efficiency | Check oil type, temperature, and possible contamination |
| Compressor operating at unusually high load or temperature | Load exceeds separator capacity | Review process demand, consider staging or load reduction |
Return-to-service acceptance and verification
Before energizing: While the compressor is isolated, confirm the replacement separator element matches the OEM-approved part number and geometry; seals and grounding provisions are correctly installed; the scavenge return line, check valve and orifice conform to the service manual; guards and housings are secured; and oil level is checked under the OEM-specified shutdown condition. Resolve defects before proceeding.
Controlled restart: Following the site’s permit and lockout/tagout release procedure, authorized personnel remove their own locks as required, clear the area, and restart using the OEM procedure. Never attempt energized or pressurized inspections of an open separator housing.
After restart, at comparable load and temperature: Check separator differential pressure, oil temperature, downstream oil evidence and scavenge performance using approved external measurement points. Record oil consumption over a representative operating period and compare it with the OEM-approved limit or a reliable baseline under comparable conditions. Investigate persistent carryover, abnormal differential pressure, excessive oil use or renewed contamination before accepting the compressor for normal production.
Record the measured values, operating conditions, corrective actions and authorization for release. No universal fixed-duration or percentage tolerance should replace the compressor OEM’s acceptance criteria.
Common mistakes and repeat‑failure traps
- Assuming visual similarity equals functional equivalence. A separator element that looks identical may have a different pore‑size distribution or coating, dramatically altering performance.
- Skipping LOTO or depressurization. Working on a pressurized separator can damage seals, introduce contaminants, or cause personal injury.
- Neglecting to verify oil level under the correct condition. Measuring oil while the compressor is hot or under load can give a false reading, leading to over‑fill or under‑fill.
- Modifying scavenge orifice size without OEM approval. Scavenge-orifice dimensions affect the intended oil-return and air-bleed balance. A restricted return path can impair oil recovery; an oversized orifice can waste compressed air. Verify the specified OEM orifice and an unobstructed return path rather than drilling or altering the component.
- Ignoring oil foaming or contamination. Foamy oil behaves like a gas‑oil mixture, overwhelming the separator even when the element is correct.
- Relying on a single short‑run observation. Oil carry‑over can fluctuate; a one‑hour test may miss intermittent re‑entrainment caused by load spikes.
- Failing to document baseline data. Without historical DP and consumption records, it is difficult to assess whether a change is truly abnormal.
Addressing these traps early prevents repeated service calls and unnecessary compressor overhauls.
