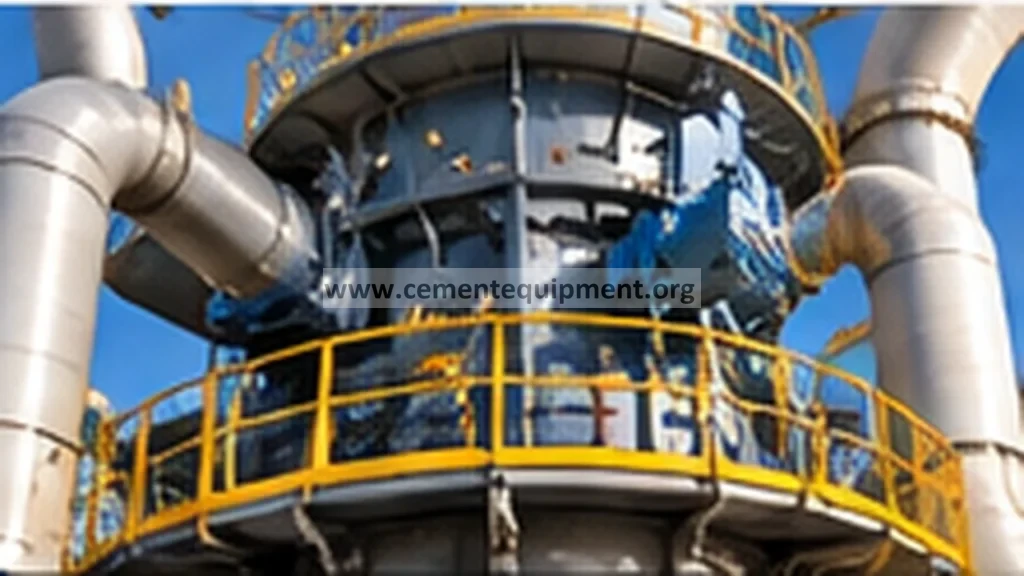

Quick answer
Separator-drive current oscillation with otherwise stable cement throughput should be diagnosed as a rotating-load or drive-control problem before the process setpoint is changed. Correlate motor current with rotor speed, vibration, separator differential pressure, reject flow, lubrication condition, VFD output and product fineness. Common causes include rotor buildup, rubbing, bearing drag, belt/coupling irregularity, VFD hunting, unstable torque from internal airflow or periodic material accumulation.
Problem / job
Separator motor current rises and falls cyclically while feed and total throughput appear comparatively stable.
Evidence
Capture motor current, rotor rpm, VFD frequency/torque, vibration, bearing temperature, separator DP, reject load and product-quality trend on the same time base.
Decision
Separate mechanical periodic load from VFD/control hunting, airflow-driven torque variation, buildup and instrumentation error.
As-found evidence capture
Record the oscillation period and amplitude before intervention. Determine whether current cycles at the same frequency as rotor rotation, a slower repeating interval, a VFD-control cycle or another process event. Add rotor speed, vibration and separator DP to the trend so electrical and mechanical causes can be separated.
Check whether the oscillation changes when separator speed is adjusted slightly within the approved operating range. A frequency that follows rotor speed strongly suggests a mechanical or rotating-load relationship.
Seven-step diagnostic workflow
1. Verify the electrical measurement
Compare drive current from the VFD or MCC with another trusted measurement if available. Review phase currents and VFD alarms/events. An unstable displayed signal without corresponding torque or vibration change can be an instrumentation issue.
2. Correlate current with rotor speed
If current peaks repeat once or several times per revolution, inspect for rotor buildup, rubbing, imbalance or geometric eccentricity. If the period is independent of rotor rpm, investigate control and process interactions.
3. Check vibration and bearing condition
Trend vibration and bearing temperature with current. Periodic drag from a bearing, seal or rubbing component may create matching current pulses. Inspect lubrication and bearing condition according to the separator manufacturer procedure.
4. Inspect rotor and internal buildup
After safe isolation, inspect rotor surfaces, cages/blades, guide vanes and internal clearances for uneven coating, foreign material or witness marks. Local buildup can change aerodynamic and mechanical torque once per revolution.
5. Review VFD control behavior
Check speed feedback, torque/current limits, acceleration settings and any speed-controller hunting. A stable speed command with oscillating VFD output can indicate control compensation for a varying load; oscillating speed command points toward control logic or feedback.
6. Compare process indicators
Separator DP, airflow, reject rate and product fineness should be checked even if total throughput is stable. Internal airflow pulsation or reject surging can vary rotor torque without immediately changing plant output.
7. Prove the correction over a full production period
After cleaning, mechanical repair or control correction, trend current, speed, vibration and separator DP again. Confirm that current becomes stable and product quality remains within the required window.
Evidence-to-decision table
| Evidence | Likely direction | Next check |
|---|---|---|
| Current pulse frequency follows rotor rpm | Rotating mechanical load | Buildup, rubbing, imbalance, eccentricity |
| Current oscillates with vibration | Mechanical/bearing issue | Bearings, coupling, rotor condition |
| Current oscillates but rotor speed also hunts | VFD/control issue | Speed feedback and controller settings |
| Current follows separator DP/reject surges | Process aerodynamic/material load | Airflow and reject path |
| Displayed current changes without other evidence | Measurement issue | MCC/VFD signal verification |
Return-to-service acceptance criteria
Accept the separator when drive current, rotor speed and vibration are stable at representative production load, bearing temperatures remain normal, separator DP and reject behavior are consistent and the required product fineness is maintained. Record the healthy current signature as a baseline.
Common mistakes
Do not change separator speed simply to hide a current oscillation. Do not assume stable throughput proves the rotor is mechanically healthy. Do not ignore VFD torque and speed feedback. Do not clean buildup without checking why it formed unevenly. Finally, do not diagnose from current alone when vibration and process trends can identify the source.
