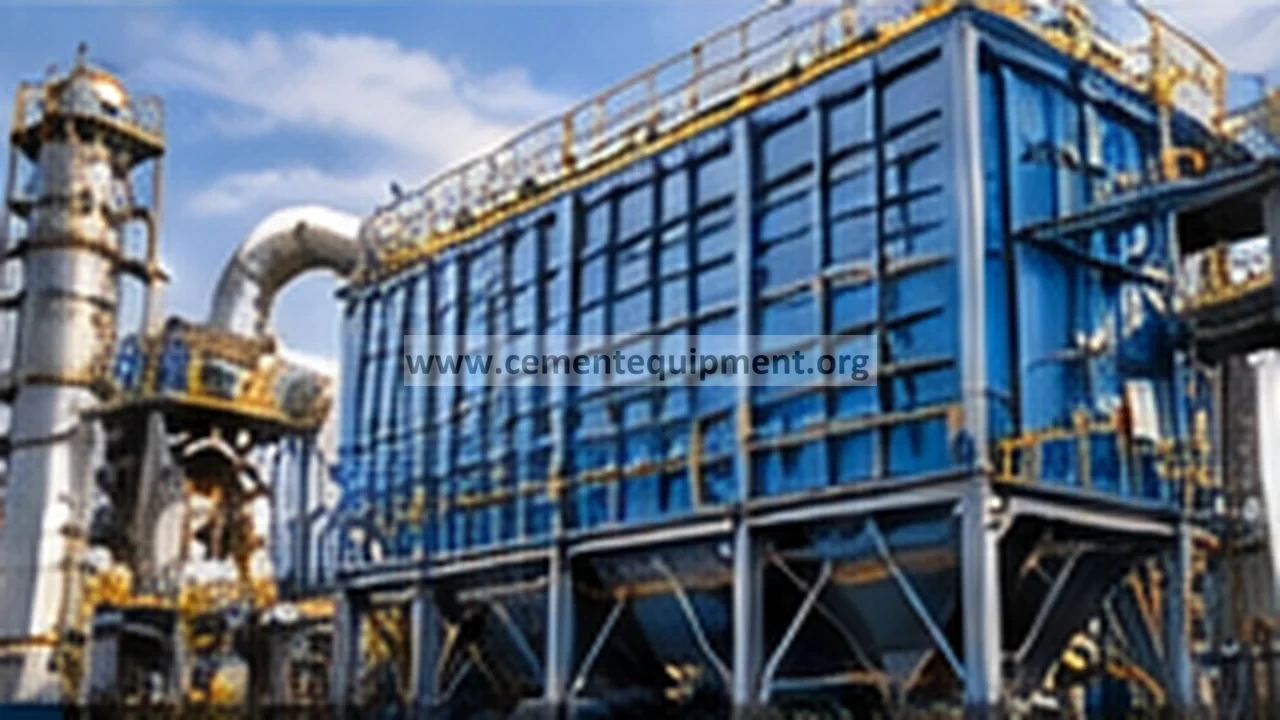

Cement Bag Filter Pulse Valve Slow Response Causing Uneven Cleaning: Diagnostic Guide

Capture the as-found condition before adjustment

Start with operating evidence while the bag filter is carrying a representative dust load. Record overall differential pressure, compartment or row behavior where instrumentation permits, pulse-controller sequence, compressed-air header pressure before and after firing, compressor or receiver behavior, and whether the symptom follows one specific valve or moves with process load. Listen for differences in pulse sharpness between neighboring valves. A normal-looking controller output does not prove that the diaphragm valve opened fully.

Inspect the pulse manifold for leakage, loose tubing, damaged connectors, water or oil contamination, blocked drains and signs of repeated manual intervention. If the filter uses remote pilot solenoids, trace the pilot line from solenoid to diaphragm valve. Preserve the original settings until the fault path is understood; changing pulse duration or interval too early can hide the evidence and increase compressed-air consumption without fixing the restriction.

Seven-step diagnostic workflow

1. Confirm the electrical command reaches the correct solenoid

Trend or observe the controller output and verify that the intended solenoid is energized at the expected point in the cleaning sequence. Check terminal security, coil condition, connector corrosion and intermittent wiring faults. If the command itself is delayed or missing, resolve the control-side issue before opening the pneumatic valve. Follow site electrical isolation procedures before touching wiring.

2. Compare solenoid response with neighboring healthy valves

A healthy solenoid normally gives a crisp and repeatable actuation. A weak, slow or inconsistent sound can indicate a sticking armature, contamination, coil degradation or insufficient pilot pressure. Compare like-for-like valves under the same header condition rather than judging one valve in isolation.

3. Verify pilot-air flow and exhaust

The main diaphragm valve depends on rapid pressure release through the pilot path. Inspect pilot tubing, orifices and exhaust passages for dust, corrosion, oil residue, water or kinks. A partially blocked pilot path can make the diaphragm open late or incompletely even though the solenoid energizes. Clean only by the valve manufacturer’s approved procedure; enlarging an orifice changes valve dynamics and is not an acceptable repair.

4. Inspect the diaphragm valve after safe isolation

Isolate, depressurize and lock out the compressed-air section before disassembly. Inspect the diaphragm for hardening, cracking, distortion, embedded debris and sealing damage. Check the spring, seat and cover passages where applicable. A diaphragm that cannot vent and reseat freely may produce a weak pulse, slow opening or air leakage between cleaning events.

5. Check header pressure and recovery at the valve location

A pulse can look slow because the local header is starved. Compare pressure immediately before firing, during the event if instrumentation allows, and during recovery. Investigate undersized or restricted supply lines, receiver limitations, simultaneous consumers, regulator problems, compressor cycling and excessive leakage. Use the filter and valve OEM requirements rather than a generic pressure target.

6. Prove that the cleaning pulse changes filter behavior

After the valve path is corrected, correlate firing with differential-pressure behavior and visible cleaning performance where safe observation is possible. If pulse intensity is now comparable with neighboring rows but the affected bags still show poor cleaning, the remaining cause may be blinded media, damaged bags, cage problems, moisture-related dust adhesion or abnormal dust loading rather than the valve.

7. Verify stability across several cleaning cycles

Do not accept the repair after one successful pulse. Observe repeated cycles at representative process load. Confirm consistent valve response, stable header recovery, no continuous air leakage, and a sensible differential-pressure trend. Record the repaired valve location and the evidence used so recurrence can be diagnosed faster.

Evidence-to-decision table

Return-to-service acceptance criteria

Accept the repair when the electrical command, pilot action and main diaphragm-valve response are repeatable; pulse intensity is comparable with equivalent healthy valves; local header pressure recovers normally for the installed system; no continuous leakage remains; and the filter’s differential-pressure behavior is stable across several cleaning cycles at representative load. Any numerical pressure, pulse-duration or interval limit should be taken from the installed valve, bag-filter and plant operating documentation rather than copied from another installation.

Also verify that the intervention has not created a new sequencing problem. The purpose is not simply to produce a louder pulse; it is to restore effective, repeatable cleaning without unnecessary compressed-air consumption or mechanical stress on the bags.

Common mistakes that create repeat failures

Do not increase pulse duration before checking the pilot and diaphragm paths. Do not assume a controller indicator proves the valve opened. Do not clean restricted orifices by drilling them larger. Do not disassemble a pressurized pulse valve. Do not replace bags solely because differential pressure is high when one cleaning row is demonstrably weak. Do not ignore condensate or oil contamination in the compressed-air system, because contamination can repeatedly damage otherwise good valves. Finally, avoid changing several cleaning parameters at once; a controlled one-change-at-a-time verification preserves the evidence needed to find the actual cause.
