Kiln/Cooler Calculation Formulas

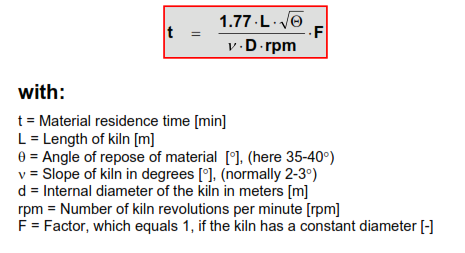

Material Residence Time in Kiln

The retention time of the material in a dry rotary kiln can be determined with the
formula from Duda Cement Data Book:

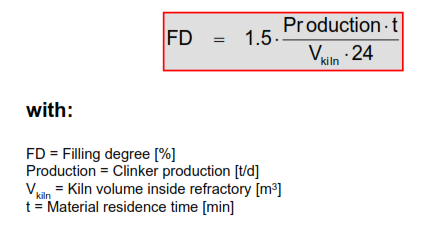

Material Filling Degree in Kiln

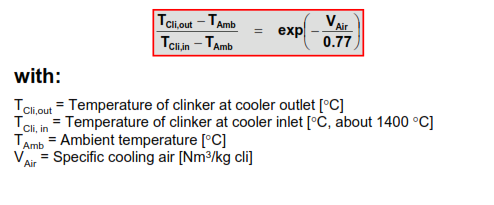

Clinker Cooler Exit Temperature

The achievable clinker temperature at the cooler exit with a given cooling air volume VAir can be calculated as (Rule of Thumb):

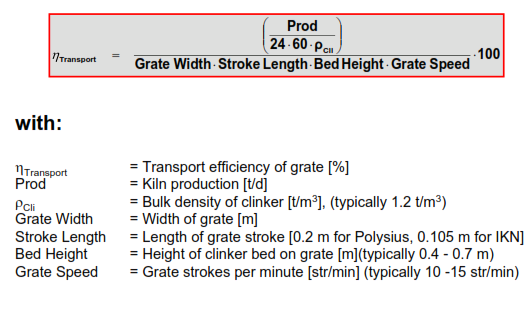

Transport Efficiency of Grate Cooler

Reference

Holcim
