Scope of Cement Plant Departments & Sampling Plan (Quality Control)

to Download the Book of KPI in cement Industry and more than 12 expert books in cement industry kindly click here



For the calculation of KPIs like Availability, Mean Time Between Failures, etc. it is necessary to clearly define the scope of each plant department. The departments listed below are defined as the equipment within the following mass flow diagram boundaries:

Scope of Cement Plant Departments

Crusher Department

Crusher apron feeder(s) to Raw material reclaimer

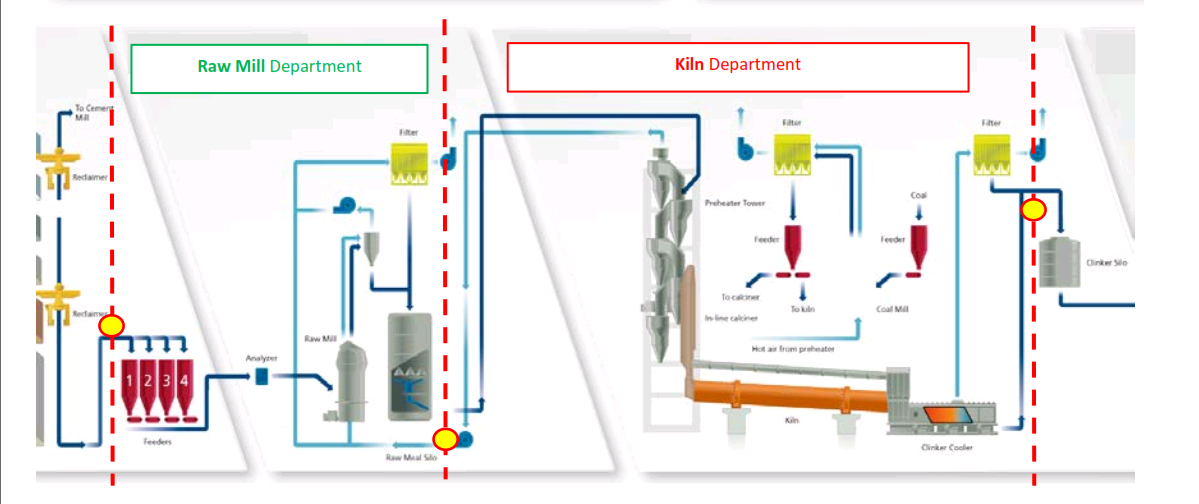

Raw Mill Department

Raw material reclaimer(s) to Raw meal silo inlet Raw mill inlet damper to raw mill outlet damper

Kiln Department

Raw meal silo outlet to clinker silo inlet Cooler exhaust stack to kiln stack (excl. raw mill gas path) including by-pass system

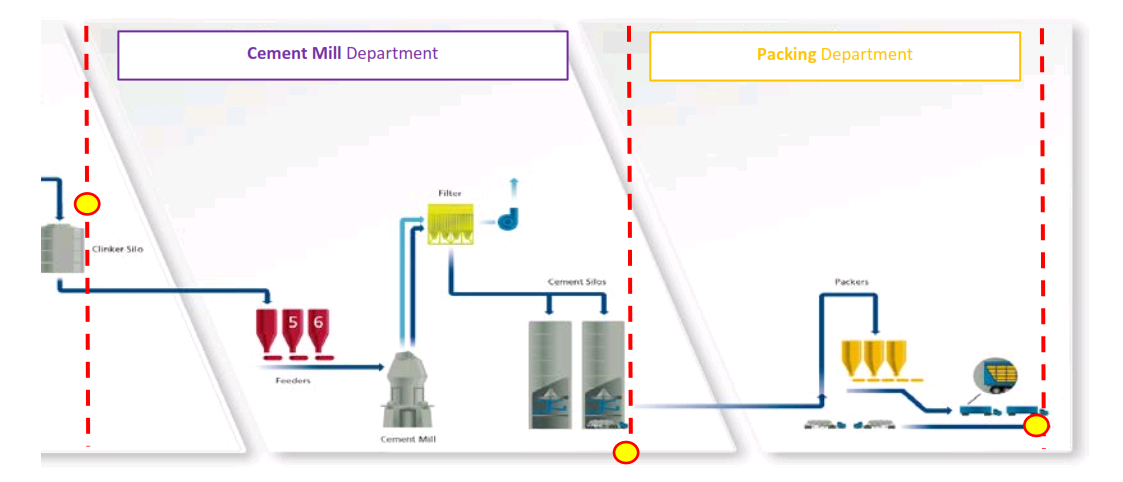

Cement Mill Department –

Clinker silo inlet to cement silo outlet

Packing Department

Cement silo outlet to cement loading (bulk and bag) including weighing scales’

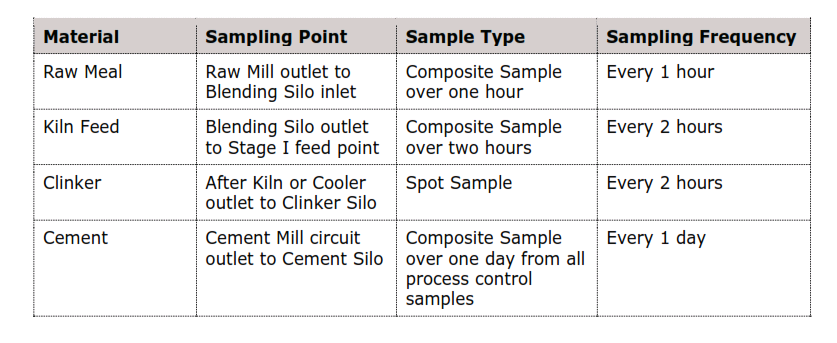

Sampling Plan (Quality Control)
