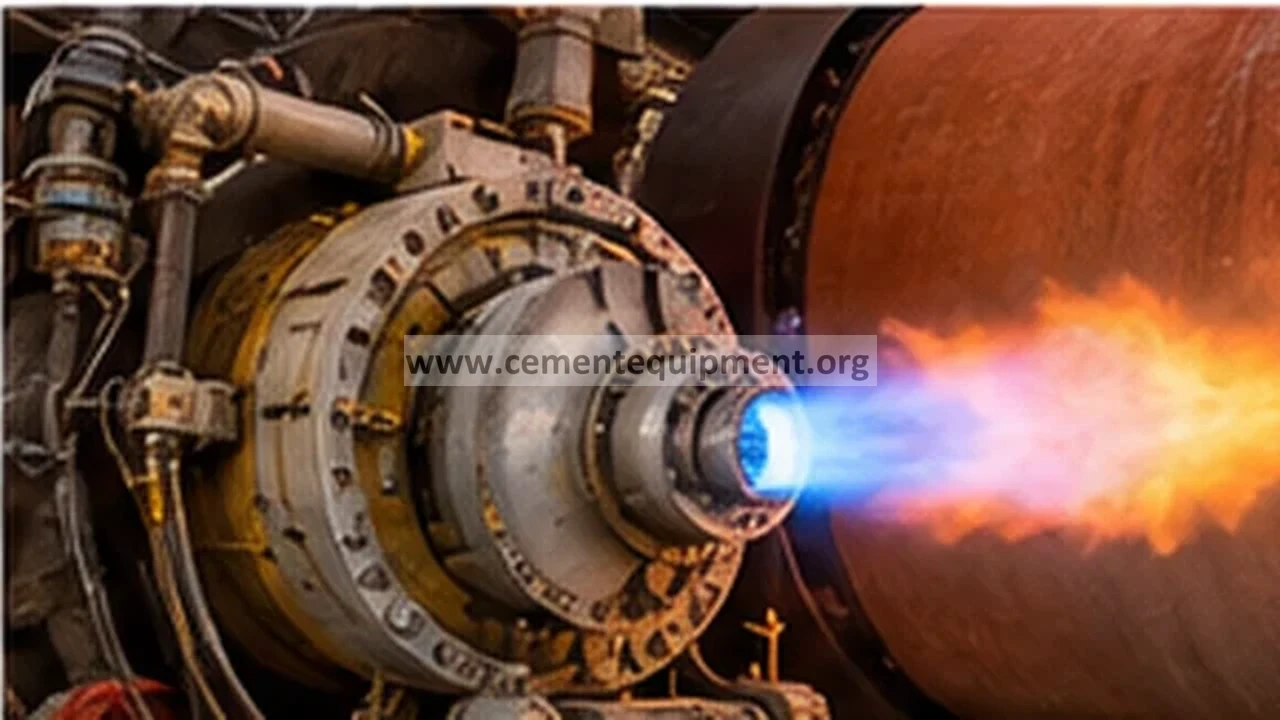

Quick answer
A false flame-loss signal from a kiln burner scanner should be diagnosed as a sensing-path problem before combustion settings are changed. Check scanner lens/window cleanliness, purge air, scanner alignment, sight tube condition, signal strength, cable/connectors and whether flame shape moved outside the scanner field of view. Burner safety logic must remain active; do not bypass flame protection to keep the kiln running.
Problem / job
The flame is visibly/process-wise stable but the scanner signal drops or the burner management system reports flame failure intermittently.
Evidence
Capture scanner raw signal, flame-loss timestamps, burner load, primary/secondary air, purge-air pressure, lens/sight condition and cable status.
Decision
Separate true flame instability from dirty optics, lost purge, misalignment, sight-tube obstruction, electrical faults and unsuitable scanner setup.
As-found evidence capture
Preserve the event before cleaning or realigning anything. Export the raw flame-signal trend, flame-relay state, burner load, fuel flow, primary/secondary air, kiln draft and flame-loss timestamps. Note whether the process showed any simultaneous evidence of a real flame disturbance such as fuel interruption, unstable draft or sudden combustion change.
Record scanner type, sighting position, recent burner/scanner maintenance, purge-air condition, cable route and any change in burner position or flame shape. A scanner that worked reliably before a mechanical or operating change should be investigated around that change first.
Scanner-path checklist before changing combustion
- Review raw scanner signal strength/trend rather than only the binary flame-fail relay.
- Inspect lens/window and sight tube for dust, coating, moisture or damage under the approved safety procedure.
- Verify purge/cooling air is clean, dry and actually flowing.
- Check scanner aiming and field of view against the stable flame region.
- Inspect mounting for vibration, looseness or movement.
- Check cable, shielding/grounding, connectors and separation from ignition/noise-carrying wiring.
- Compare the scanner signal with a known healthy operating condition at similar burner load.
- Review burner-management input/relay status so a logic or I/O fault is not mistaken for optical flame loss.
Safety rule: do not bypass, bridge or desensitize flame-failure protection to keep the kiln running. Diagnose within the OEM and plant combustion-safety procedure.
Seven-step workflow
- Confirm other process evidence indicates the flame is actually present and stable.
- Review raw scanner signal strength/trend rather than only the binary flame relay.
- Under the approved burner safety procedure, inspect the scanner lens/window and sight tube for dust, coating or damage.
- Verify scanner purge/cooling air pressure and flow; lost purge allows rapid optical contamination and overheating.
- Check alignment and field of view relative to the actual flame position, especially after burner or scanner maintenance.
- Inspect cable, connector and power/signal grounding condition according to the scanner manufacturer procedure.
- After correction, prove stable scanner signal through representative burner loads without bypassing any flame-safeguard function.
Decision table
Diagnostic decision matrix
| Evidence | Likely direction | Next check |
|---|---|---|
| Signal gradually weakens between cleanings | Optical contamination/purge issue | Lens, sight tube, purge air |
| Signal drops after burner position change | Alignment/field-of-view issue | Scanner aiming |
| Raw signal stable but flame relay trips | Electronics/logic issue | Scanner relay/BMS input |
| Flame shape/process also unstable | Real combustion issue | Burner/fuel/air diagnosis |
Use the signal pattern to separate optical and real-flame faults
Raw signal gradually weakens over hours or days: prioritize lens/sight contamination, lost purge or scanner aging. Signal drops immediately after burner repositioning or flame-shape change: inspect line of sight and scanner aiming. Raw signal remains healthy while the flame relay/BMS input trips: inspect electronics, wiring, relay/input logic and noise pickup. Scanner signal and combustion indicators deteriorate together: treat the event as a possible real flame problem and diagnose fuel/air/draft under the burner safety procedure.
A dirty optical path and an unstable flame can exist together. Clean optics and restore purge first so the scanner becomes a trustworthy measurement before changing burner settings based on a weak signal.
Acceptance criteria
Verify the scanner system through representative kiln firing conditions:
- Confirm optics and sight path are clean and purge/cooling air is established.
- Record raw flame signal at stable low, normal and higher approved burner loads.
- Confirm signal remains stable when kiln draft and normal flame shape vary within the operating envelope.
- Verify cable/connectors and scanner mounting remain stable with normal vibration and temperature.
- Confirm the flame relay/BMS input follows the verified scanner signal correctly.
- Perform the OEM/plant proof or functional test required for the flame-safeguard system before return to unrestricted service.
The burner-management interlock must operate exactly as designed. Scanner signal thresholds, purge requirements and proof-test procedures come from the installed scanner/BMS OEM and site safety standard.
Common mistakes and repeat-failure traps
- Bypassing the flame trip: this removes a critical combustion safeguard and is not a troubleshooting method.
- Changing burner air/fuel first: prove the sensing path when the process evidence says the flame remained stable.
- Cleaning the lens without checking purge: the scanner will foul again if purge/cooling air is lost.
- Aiming at the brightest visible region only: use the scanner/OEM sighting criteria and stable flame zone for the actual sensor type.
- Ignoring electrical noise: induced signals or damaged shielding can create false or unstable flame indications.
- Declaring success from one steady point: verify signal stability across the approved operating range.
