Claudius Peters – Cooler Technology



Claudius Peters Clinker Cooler Types

Type 1 Single Grate Cooler up to 2500 t/d

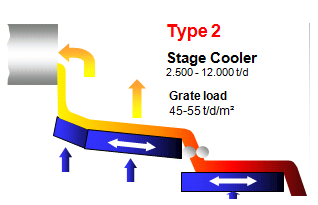

Type 2 Stage Cooler 2.500 – 12.000 t/d

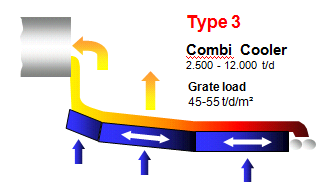

Type 3 Combi  Cooler 2.500 – 12.000 t/d

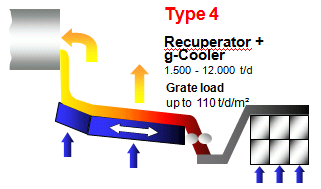

Type 4 Recuperator + g-Cooler 1.500 – 12.000 t/d



Claudius Peters Combi Cooler

Grate Cooler: Basic Design and Process Data

Spec. grate area load  :  45 – 55 t/day/m²

Spec. cooling air at 45 t/day/m²  :  1,8 Nm³/kg clinker

Clinker inlet temperature  :  1.400 °C

Clinker outlet temperature  :  80 °C above amb.

Cooler efficiency at 0,85 Nm³/kg  :  76 %

Aeration Concept

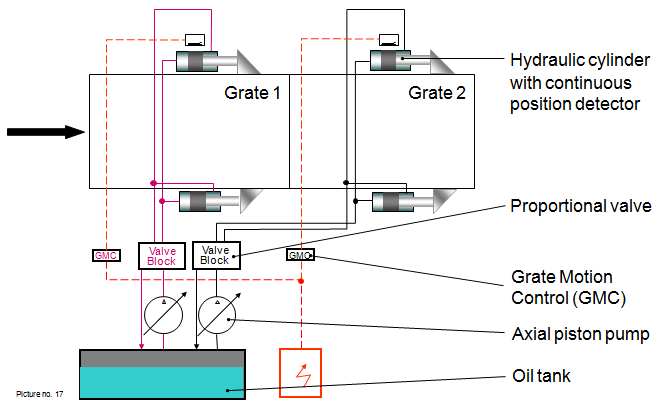

Hydraulic Drive – Single pump system

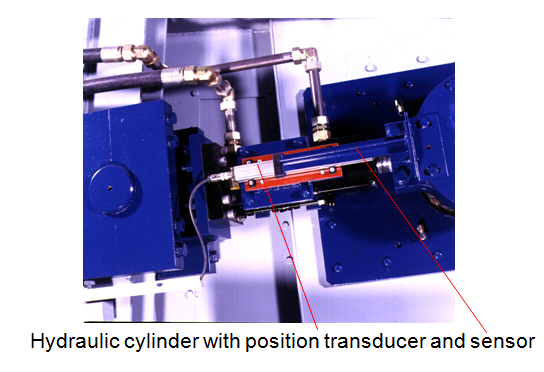

Hydraulic cylinder with position transducer and sensor

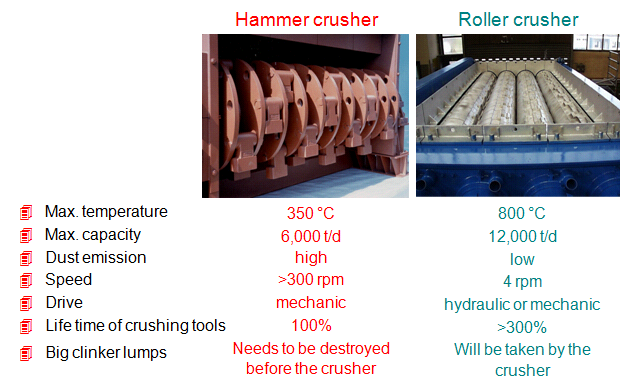

Comparison of Crusher Types

• Hammer Crusher
• Roller Crusher

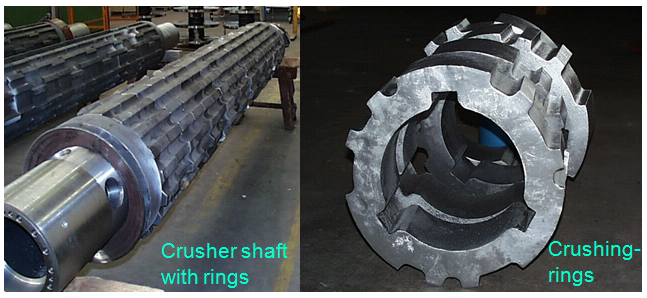

Details of the Roller Crusher

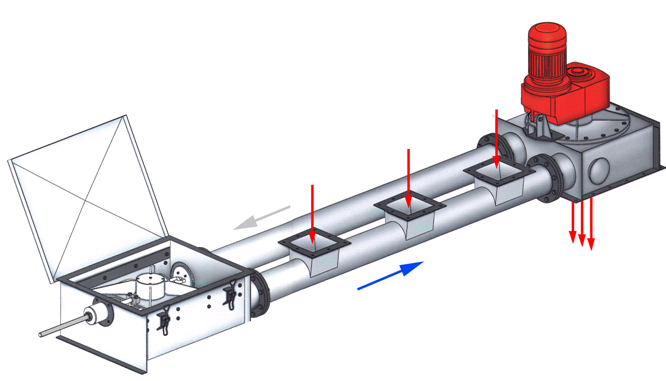

Dust Removal System  General Arrangement

Cooler Automation
