Introduction

Grate coolers are vital components in the cement industry, responsible for cooling clinker produced in the kiln. Modern advancements in grate cooler technology have significantly improved their efficiency and durability. This report provides an in-depth look at the most important and modern types of grate coolers, popular brands and models, and detailed maintenance guidelines, including estimated costs and labor hours.

Clinker Cooler Types: Grate, Planetary and Rotary

Important classification: Grate coolers, planetary (satellite) coolers and rotary coolers are different clinker-cooling technologies. A planetary cooler is not a “planetary grate cooler.” Within the grate-cooler family, transport mechanisms and air-distribution designs also differ. Confirm the installed equipment model before selecting parts, maintenance procedures or an upgrade.

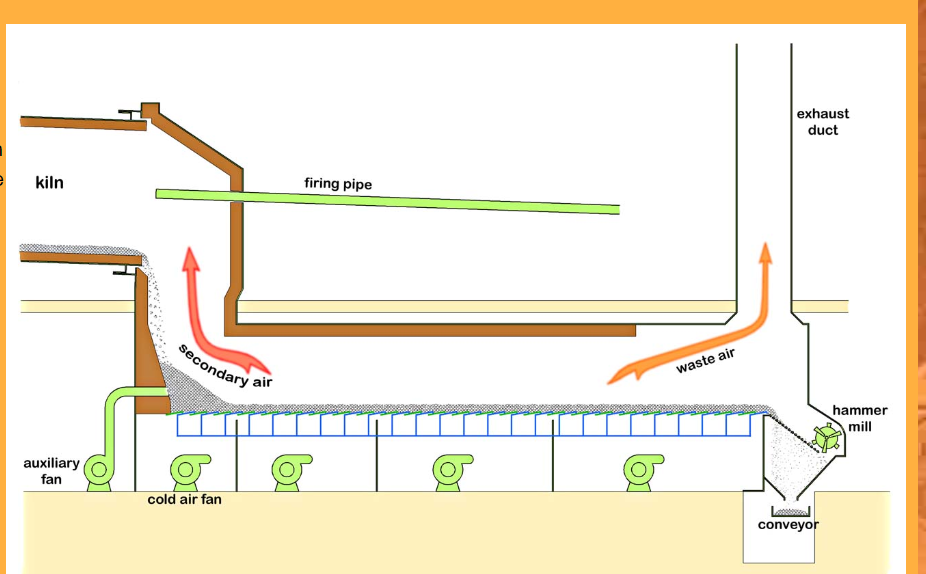

Conventional reciprocating grate coolers

Moving grate elements advance clinker through the cooler while fans supply cooling air through the bed. Typical inspection subjects include grate-plate wear, gaps, clinker distribution, undergrate leakage, fans and the clinker discharge system. Requirements depend on the OEM design.

Modern cross-bar and pendulum grate coolers

These use different ways to transport clinker and distribute cooling air. The FLSmidth Cross-Bar Cooler moves clinker using bars above a stationary aeration surface, whereas the IKN Pendulum Cooler uses its own moving-grate and aeration arrangement. They should not be assumed to have interchangeable wear parts or maintenance practices.

Fixed inlet and stationary aeration zones

A fixed or static inlet section can be part of a larger grate cooler. It is not necessarily a separate complete “static grate cooler” category. Check the inlet design, air distribution, bed formation and OEM operating instructions.

Planetary (satellite) and rotary coolers: separate technologies

Planetary coolers consist of cooling tubes attached to the kiln and rotating with it; rotary coolers use a separate rotating drum. Neither operates as a grate cooler. For the engineering distinction, see the clinker cooling systems comparison.

Cooler Selection and Upgrade Checks

• Thermal performance: review clinker discharge temperature, secondary/tertiary air recovery and excess cooling-air handling.
• Mechanical configuration: verify grate or transport mechanism, wear parts, crusher, seals, drives and accessibility.
• Process compatibility: compare kiln capacity, clinker granulometry, bed distribution, fan duty and pressure losses.
• Budget: obtain a current OEM quotation for the actual capacity, supply scope and installation or retrofit interfaces. Generic equipment price ranges are not reliable project estimates.

Maintenance Guidelines for Grate Coolers

Predictive Maintenance

Predictive Maintenance Tools:

• Vibration Analysis: Monitors vibrations to detect misalignments or bearing failures.
• Thermal Imaging: Identifies hotspots indicating potential issues in the cooler.
• Acoustic Monitoring: Detects unusual noises that may signify mechanical problems.

Estimated Cost:

• Vibration Analysis Equipment: $10,000 – $20,000
• Thermal Imaging Cameras: $5,000 – $15,000
• Acoustic Monitoring Tools: $5,000 – $10,000

Labor Hours:

• Setup and Monitoring: 8-16 hours monthly.

Preventive Maintenance

Tasks:

• Regular Inspections: Visual and mechanical inspections to identify wear and tear.
• Lubrication: Ensuring all moving parts are well-lubricated to prevent friction and wear.
• Component Replacement: Proactive replacement of wear parts like grates and seals.

Estimated Cost:

• Lubricants: $500 – $1,000 annually
• Replacement Parts: $20,000 – $50,000 annually

Labor Hours:

• Inspections: 24-40 hours monthly
• Lubrication and Minor Repairs: 16-32 hours monthly
• Component Replacement: 100-200 hours annually

Periodic Maintenance

Tasks:

• Thorough Cleaning: Removing clinker dust and debris from the cooler.
• Alignment Checks: Ensuring proper alignment of moving parts.
• Detailed Inspections: In-depth checks of all mechanical and structural components.

Estimated Cost:

• Cleaning Equipment: $2,000 – $5,000 annually
• Alignment Tools: $1,000 – $2,000 annually
• Inspection Costs: $5,000 – $10,000 annually

Labor Hours:

• Cleaning: 80-120 hours annually
• Alignment and Inspection: 60-100 hours annually

Conclusion

Grate coolers are essential for the efficient operation of cement plants, ensuring that clinker is cooled effectively and efficiently. The choice of grate cooler depends on the specific requirements of the cement plant, including capacity, maintenance needs, and energy efficiency goals. Predictive and preventive maintenance are crucial for maximizing the lifespan and performance of grate coolers, with modern technologies offering new ways to monitor and maintain these critical components. Proper maintenance practices not only ensure operational efficiency but also contribute to cost savings and reliability in cement production.

References

1. FLSmidth: Cross-Bar Cooler
2. IKN GmbH: Pendulum Cooler
3. Thyssenkrupp: Polysius® Reciprocating Grate Cooler
4. Claudius Peters: ETA Cooler
5. SINOMALY: Grate Cooler
6. A TEC: Static Grate Cooler
7. Fons Technology: Planetary Grate Cooler
8. Fives Group: Planetary Cooler
9. FL Smidth: SF Cross-Bar Cooler
