Cements – Composition, Types



we at infinity  for cement equipment update the book and reports and excel sheets and manuals every month and send them free if you bought the package, you buy it one time only and you get updates forever  click here now!! like this article , you will get it in decent pdf format when you purchase.

􀀁 Finish up cement manufacture
􀀁 Properties of component phases
􀀁 Types of cements

Summary of Kiln Reactions

CLINKER

􀀁 Clinker is what comes out of the kiln
􀀁 3 to 25 mm in diameter
􀀁 20-25% Molten

Compound Composition of Clinker / Cement

􀀁 Four major compounds formed from the oxides under high temperature in the kiln
􀀁 Name (Oxide Notation) – Shorthand
􀀁 Tricalcium silicate (3 CaO. SiO2) – C3S
􀀁 Dicalcium silicate (2 CaO. SiO2) – C2S
􀀁 Tricalcium aluminate (3 CaO. Al2O3) – C3A
􀀁 Tetracalcium aluminoferrite (4 CaO. Al2O3. Fe2O3) – C4AF

Summary of Cement Compounds

Implications of compound composition

􀀁 Determines the physical and mechanical characteristics of the cement
􀀁 Determines its chemical activity
􀀁 Determines its scope of use
􀀁 Determines the cost

Contributions of Compounds to Strength

C3S contributes to high early strength – tomake high early strength concrete, higher
C3S proportions needed

C2S contributes to later age strength –defines the long term strength

C3A reacts immediately with water – defines set

In the absence of gypsum, C3A causes flash set

Compressive strength development of pure cement compounds

􀀁 C3A reacts instantaneously
􀀁 Final strength determined by C3S and C2S
􀀁 Increase C3S for high early strength

Making Life Harder – I

􀀁 Remember the compound name, oxide notation, and the shorthand notation…
􀀁 Just to make sure that cement and concrete is complicated, tricalcium silicate in its impure form in clinker is historically called Alite
􀀁 Even more complication arises – various crystalline polymorphs of tricalcium silicates exist
􀀁 Similar troubles for other compounds also

Making Life Harder – II

􀀁 Not all cement components can be expressed by the oxide formulae and shorthand notation
􀀁 Chlorides, Fluorides etc
􀀁 Expressed using normal chemical formulae
􀀁 Mineral names are commonly used for raw materials (calcite, quartz) and for some cement hydration products (ettringite, portlandite etc)

Beware of “LIME”

􀀁 Be clear what you mean when you say
“Lime”
􀀁 “Lime” can be used for CaO, either by itself or in combination with other components
􀀁 “Lime” can be used for Calcium hydroxide (also called portlandite, abbreviated as CH)
􀀁 “Lime” is sometimes used for limestone rock or its major chemical component calcium carbonate

Manufacturing control criteria in the Kiln

Bogue’s Equations – Compound composition

To calculate the amounts of C3S, C2S, C3A, and C4AF in clinker (or the cement) from its chemical analysis (from the mill certificate)

􀀁 Assumptions in calculations
􀀁 Chemical equilibrium established at the clinkering temperature
􀀁 Components maintained unchanged through the rapid cooling period
􀀁 Compounds are “pure”

Bogue’s Equations

􀀁 Case 1 : A/F >=0.64
􀀁 C3S = 4.071C – 7.6S – 6.718A – 1.43F – 2.852S
􀀁 C2S = 2.867S – 0.7544C3S
􀀁 C3A = 2.65A – 1.692F
􀀁 C4AF = 3.043Fv

􀀁 Case 1 : A/F >=0.64
􀀁 C3S = 4.071C – 7.6S – 6.718A – 1.43F – 2.852S
􀀁 C2S = 2.867S – 0.7544C3S
􀀁 C3A = 2.65A – 1.692F
􀀁 C4AF = 3.043F

Clinker components and Temperature

Summary of Kiln Reactions

Clinker Microstructure

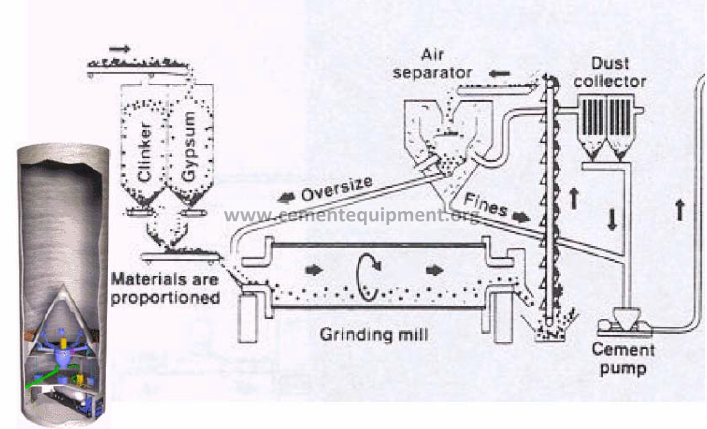

SchematicMill of a Grinding

Grinding Mill



Fineness of cement

􀀁 Grinding is the last step in processing
􀀁 Measures of fineness
􀀁 Specific surface
􀀁 Particle size distribution
􀀁 Blaine’s fineness
􀀁 Measure of air permeability
􀀁 Typical surface areas
􀀁 ~ 350 m2 / kg (Normal cements)
􀀁 ~ 500 m2 / kg (High early strength cements)

PSD of cement



Significance of fineness

􀀁 Finer cement = Faster reaction
􀀁 Finer cement = Higher heat of hydration
􀀁 Large particles do not react with water completely
􀀁 Higher fineness
􀀁 Higher shrinkage
􀀁 Reduced bleeding
􀀁 Reduced durability
􀀁 More gypsum needed

Summary of the Cement Making Process

Some practical issues about cement making

􀀁 Scale of the business (local / national)
􀀁 LOCATION
􀀁 Plant operations
􀀁 Wet versus Dry process
􀀁 Energy savings – Preheaters, Dust
􀀁 Energy and fuels
􀀁 Environment

The economics of cement making

􀀁 Transportation costs – when shipped further than ~ 200 miles
􀀁 About 175 plants nationwide
􀀁 Cost of maintenance – plant and the environment
􀀁 Rising fuel costs – raw material quality and fuel dependence
􀀁 Continuous operability

Portland Cement Types (ASTM C 150)

􀀁 ASTM C 150 (AASHTO M 85)
􀀁 5 types in general – types I to V
􀀁 Type I – Normal (OPC)
􀀁 Type II – Moderate Sulfate Resistance
􀀁 Type III – High early Strength
􀀁 Type IV – Low heat of hydration
􀀁 Type V – High Sulfate Resistance
􀀁 Chemical compositions different

Other special Types

􀀁 Not very commonly used or manufactured
􀀁 Type IA – Normal (OPC) – air entraining
􀀁 Type IIA – Moderate sulfate resistance –air entraining
􀀁 Type IIIA- High early strength – air entraining

Typical Compositions

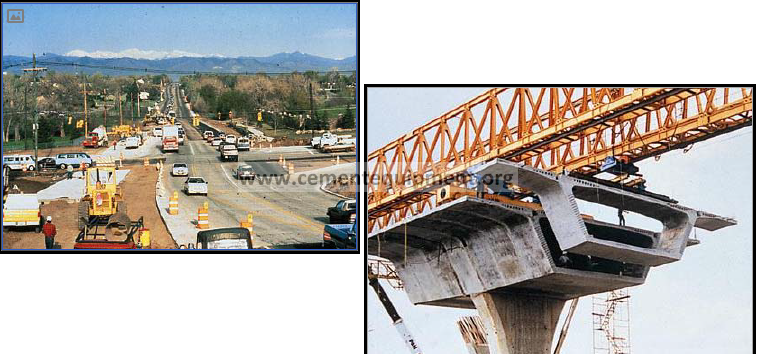

Applications of Type- I cement

Applications of Type II and IV



BE AWARE OF THIS

􀀁 Type of cement is no guarantee against other bad concreting practices
􀀁 To be durable, you have to get the basics right: the cement type is just an aid
􀀁 Water-cement ratio is key
􀀁 Top picture – w/c 0.69, Type V
􀀁 Bottom picture – w/c 0.35, Type V



Applications of Type III (High early strength)

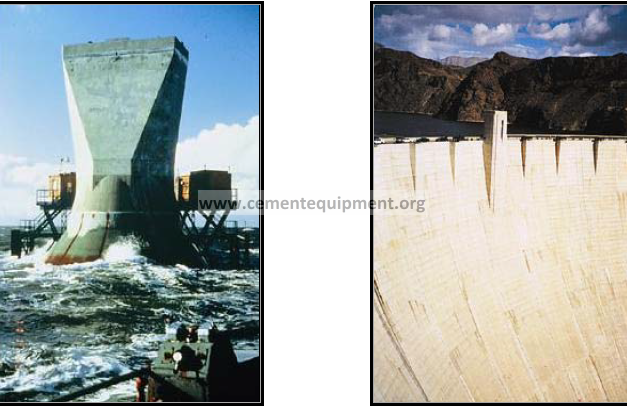

Applications of Type IV (Low Heat)

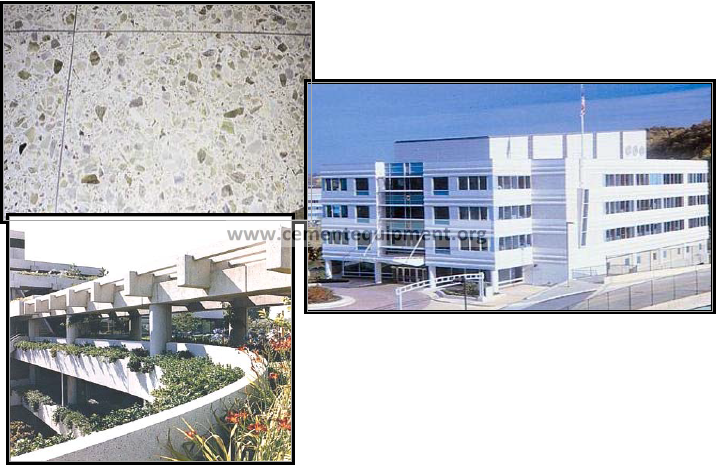

White Portland Cement



Blended Hydraulic Cements

􀀁 ASTM C 595 (AASHTO M 240)
􀀁 Blending supplementary materials into OPC
􀀁 Improves properties (we will see in detail how this is effected)
􀀁 Reduces cost – materials like fly ash are waste products from other industries
􀀁 Environmental effects –concrete acts as a sink to hazardous products

Blended Cements

􀀁 Type IS –Portland blast furnace slag cement
􀀁 Type IP, Type P – Portland Pozzolan cement
􀀁 Type I(PM) – Pozzolan modified Portland cement
􀀁 Type S –slag cement
􀀁 Type I (SM) – Slag modified pozzolan cement

Other Hydraulic Cements

􀀁 ASTM C 1157 – 6 types
􀀁 Type GU – General Use
􀀁 Type HE – High early strength
􀀁 Type MS –Moderate sulfate resistance
􀀁 Type HS – High sulfate resistance
􀀁 Type LH – Low heat of hydration

􀀁 Type MH – Moderate heat of hydration
