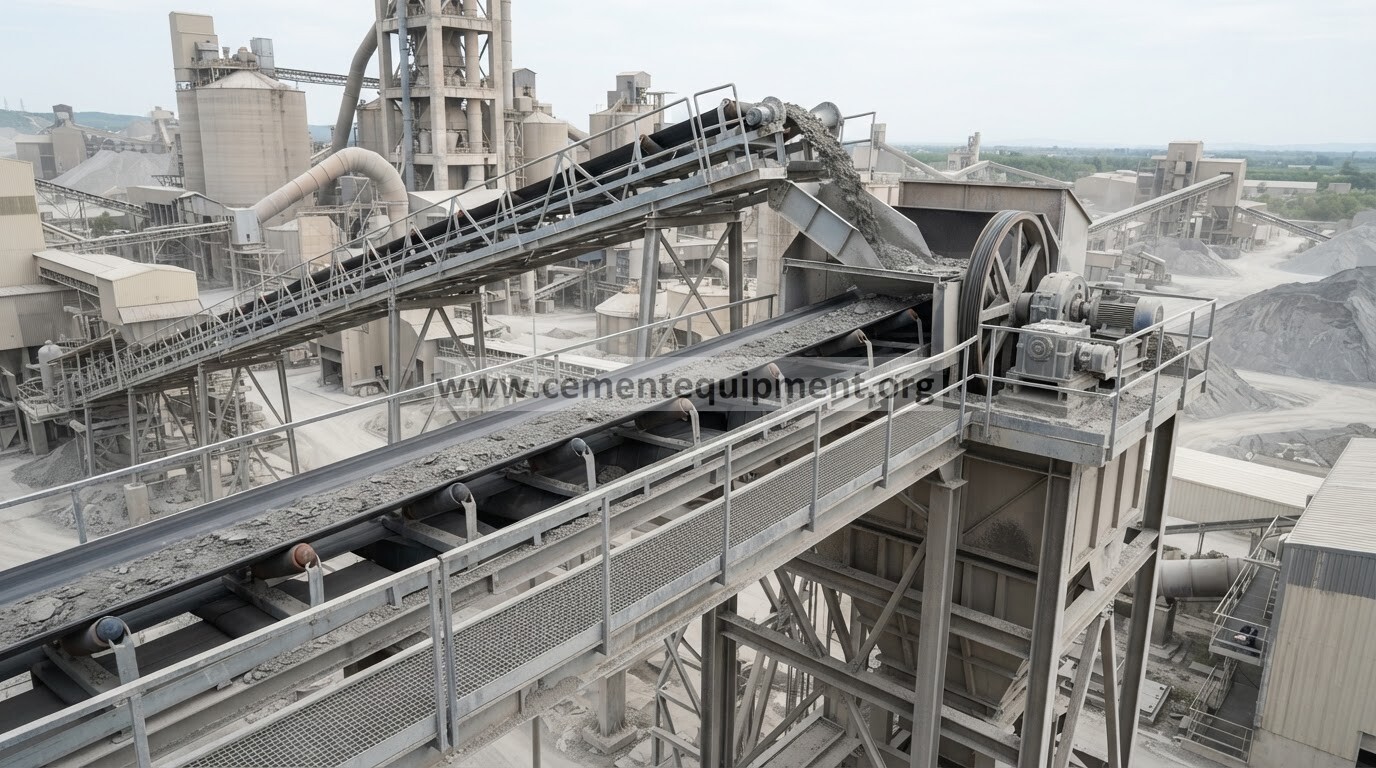

A plugged-chute switch nuisance trip must be separated from a real material backup before the device is touched. Preserve the trip evidence, inspect the chute and discharge path, verify the switch target or diaphragm is free, check mounting and wiring, and compare the trip with actual material flow. Never bypass the switch to keep the conveyor running; the same device may be the only protection against a genuine blocked transfer point.
Eliminate false plugged-chute trips without losing protection against real backup, belt burial or upstream conveyor damage.
Use chute condition, material flow, downstream status, switch state, target movement, wiring, vibration and trip timing together.
Prove the chute is clear first, then separate mechanical switch problems from electrical/PLC issues and process-driven real blockages.
Fast diagnostic order
- Confirm whether material actually backed up into the switch location.
- Check downstream conveyor, gate or equipment status that could create a real blockage.
- Inspect the switch paddle, diaphragm or target for sticking, buildup and mechanical damage.
- Verify switch state, wiring and PLC input through the full mechanical movement.
- After correction, function-test the protection using the approved plant method.
Capture the trip sequence before clearing the chute
Record: upstream and downstream conveyor status; material feed rate; chute level or camera evidence if available; plugged-chute input state; trip timestamp; motor currents; gate positions; recent material moisture or buildup condition; switch mounting position; and whether the alarm cleared immediately after stopping or remained active.
If the alarm occurs only after a downstream stop or high feed surge, treat that as possible real backup evidence. If the chute is clear and the input changes with vibration or temperature, investigate the device and wiring.
1. Prove the transfer path is actually clear
Use safe isolation before internal inspection. Check for compacted material, sticky buildup, foreign objects, collapsed liners or a downstream restriction. A switch may be working correctly even when operators see only a small amount of material after the equipment stops; part of the blockage may have fallen away when flow ceased.
2. Review downstream equipment and sequence
A plugged chute often starts with a downstream conveyor, rotary feeder, gate or process machine stopping while upstream feed continues. Review PLC sequence and timestamps. Confirm the downstream permissive removes upstream feed quickly enough. A repeated sequence problem should be corrected at the cause rather than by changing the plugged-chute device.
3. Inspect the switch sensing mechanism
Depending on the design, the device may use a flexible diaphragm, tilt mechanism, paddle or pressure plate. Inspect for cement buildup, hardened material, torn diaphragm, bent target, corrosion, seized pivot or a return mechanism that does not reset freely. Do not lubricate or modify the device unless the manufacturer permits it.
4. Verify mounting orientation and contact with material
A switch installed where normal material trajectory strikes it continuously can nuisance trip even with a clear chute. Compare the mounting position with the original design and wear pattern. Check whether chute modifications, liner replacement or a changed feed trajectory now load the device differently.
5. Check wiring and PLC input stability
Operate the switch through its approved test movement while observing the local contact and PLC input. Look for loose terminals, damaged cable, moisture ingress, junction-box contamination and intermittent input behavior. If the local contact is stable but the PLC input changes, trace the field circuit before replacing the switch.
6. Check for vibration-induced movement
Loose brackets or a marginal switch position can allow vibration to move the sensing element enough to change state. Inspect support rigidity and fasteners. Compare the problem with conveyor startup, stopping and nearby impact events. A switch that trips only during a structural shock may need its mounting corrected, not its alarm defeated.
7. Verify the protection logic
Check debounce or delay logic only against the approved control philosophy. A short intentional delay can prevent contact bounce, but a long delay can allow a real blockage to grow. Do not extend timers solely to suppress nuisance trips without proving the mechanical and electrical causes.
Plugged-chute trip diagnostic matrix
| Observed pattern | Likely direction | Priority check |
|---|---|---|
| Trip follows downstream stop | Real material backup | Interlocks, upstream stop timing, chute clearance |
| Chute is clear but switch stays active | Sticking sensing element | Buildup, diaphragm/paddle, pivot, return action |
| Input changes with vibration | Loose mount / intermittent circuit | Bracket, terminals, cable, PLC input |
| Trips during normal high flow only | Poor switch location / trajectory impact | Mounting position, liner changes, material path |
| Alarm clears immediately after stop | Possible transient backup | Sequence timing, feed surge, downstream capacity |
Common mistakes
- Bypassing the plugged-chute switch because the blockage is not visible after stopping.
- Replacing the switch without inspecting downstream sequence failures.
- Moving the device away from normal material without checking whether it still detects a real plug.
- Extending PLC delay times to hide contact bounce or mechanical sticking.
- Ignoring changed material trajectory after liner or chute modifications.
Return-to-service acceptance checklist
- The chute and downstream discharge path are clear.
- The sensing mechanism moves and resets freely.
- The switch state and PLC input agree throughout the approved test.
- Mounting is rigid and normal material flow does not falsely actuate the device.
- Upstream/downstream interlocks stop material flow correctly during a real downstream stop.
- No bypass, forced input or temporary override remains active.
- The approved functional test confirms the switch will still detect a genuine plug.
Frequently asked troubleshooting questions
Can a plugged-chute switch be correct even if the chute looks clear later?
Yes. Material can fall away after the upstream conveyor stops. Review the sequence and evidence at the moment of trip before declaring the switch false.
Why does the switch trip only at high feed rate?
Check whether normal material trajectory is striking the sensing element, whether the chute is approaching capacity, or whether downstream equipment cannot clear the peak flow.
Should the PLC delay be increased?
Only when the approved design and measured contact behavior justify it. A delay must not be used to conceal a real blockage or sticking device.
Related Infinity technical guides
Engineering reference basis
Use the installed chute switch, conveyor and PLC/OEM documentation for final mounting, test movement, delay logic and interlock requirements. The diagnostic workflow above is intended to separate real material backup from device, wiring and sequence faults without weakening the protective function.
