Rotary Kiln Sizing: Determining the Optimal Length, Diameter, and Slope for Your Cement Plant
Rotary kiln size is defined by its diameter, length, and slope, which together must meet the plant’s annual clinker capacity, raw‑material feed rate, required solid residence time, and heat‑balance constraints. By matching these parameters to the specific heat demand and material flow, engineers can select a kiln that delivers the target production without excessive fuel consumption or premature wear.
Why kiln sizing matters – the engineering background

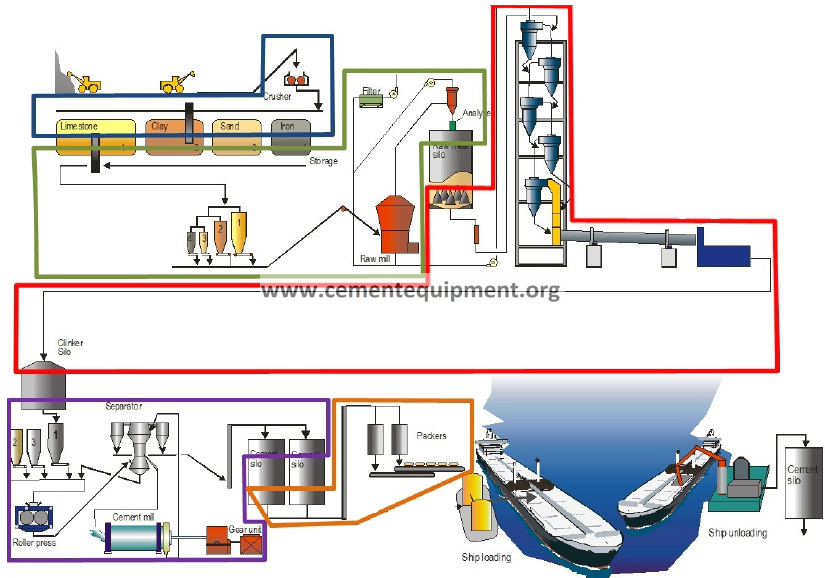

The rotary kiln is the heart of the pyroprocessing train. Its geometry directly controls three critical phenomena:
- Solid residence time: The time raw mix spends in the high‑temperature zone determines the degree of clinkerization. Too short a residence time leaves free lime; too long wastes fuel and increases refractory wear.
- Heat transfer efficiency: Kiln diameter and shell thickness affect the convective and radiative heat flux from the flame and secondary air to the material bed. An oversized diameter reduces gas velocity, lowering convective heat transfer, while an undersized kiln may cause excessive gas velocity and erosion.
- Mechanical stability: The kiln slope (inclination) and length‑to‑diameter (L/D) ratio influence the torque required to rotate the shell, the tendency for ovality, and the risk of shell cracking under thermal gradients.
When a plant upgrades capacity, switches to alternative fuels, or modifies raw‑material chemistry, the original kiln may no longer satisfy these constraints. A systematic sizing exercise therefore starts with a heat‑balance model, proceeds to solid‑flow calculations, and finishes with a mechanical feasibility check.
Typical parameter ranges observed in modern cement plants
| Parameter | Typical Range | Influencing Factor |
| Annual clinker capacity | 0.5 – 5.0 Mt yr⁻¹ | Plant size, market demand |
| Kiln diameter (ID) | 2.5 – 5.5 m | Material bulk density, desired gas velocity (≈ 15‑20 m s⁻¹) |
| Kiln length | 70 – 150 m | Required solid residence time (≈ 2.5‑3.5 min for 1‑Mt yr⁻¹ plant) |
| Slope (inclination) | 3 – 5 % (≈ 1.7‑2.9°) | Desired material conveyance rate, torque limits |
| Length‑to‑diameter ratio (L/D) | 15 – 30 | Heat‑balance and residence‑time targets |
| Maximum flame temperature | 1 850 – 2 200 °C | Fuel type, secondary‑air staging |
| Gas velocity at kiln inlet | 15 – 20 m s⁻¹ | Combustion air flow, kiln diameter |
Step‑by‑step practical guide to size a new or replacement kiln
- Define the production target. Record the desired annual clinker output (Mt yr⁻¹) and the corresponding raw‑material feed rate (t h⁻¹). This sets the solid mass flow, ṁ_s, which is the primary driver of residence time.
- Calculate the required solid residence time. Use the clinkerization curve for your raw mix (typically 1 800 °C → 1 450 °C). For a standard Portland cement, a solid residence time of 2.5‑3.5 min in the sintering zone is needed. Multiply ṁ_s (kg s⁻¹) by the target residence time (s) to obtain the required kiln volume, V_k (m³):
V_k = ṁ_s × t_res / ρ_bulk
where ρ_bulk is the bulk density of the material bed (≈ 1 200 kg m⁻³ for typical raw mix). This yields a plant‑specific volume that must be accommodated by the kiln geometry.
- Select a preliminary diameter. Choose a diameter that provides a gas velocity of 15‑20 m s⁻¹ at the inlet, using the measured primary‑air flow Q_g (m³ s⁻¹):
D ≈ √[4 Q_g / (π v_g)]
where v_g is the target gas velocity. Verify that the resulting cross‑sectional area can also carry the solid bed without excessive pressure drop.
- Determine the required length. With the chosen diameter, compute the cylindrical volume V_cyl = π D² L /4. Adjust the length L until V_cyl matches the volume from step 2, keeping the L/D ratio between 15 and 30 to avoid excessive torque or thermal gradients.
- Set the kiln slope. A slope of 3‑5 % provides enough gravitational drive for the material while keeping the torque within motor limits. Use the formula:
Torque ≈ (ṁ_s g sin θ L) / (2 π N)
where θ is the slope angle, g is gravity, and N is the rotational speed (rpm). Adjust θ to keep torque below the motor rating.
- Perform a heat‑balance check. Sum all heat inputs (fuel combustion, pre‑heat, secondary air) and subtract heat losses (flue gas, radiation, shell conduction). The net heat must equal the sensible‑heat rise of the solid plus the endothermic reactions (calcination, sintering). If the balance is off, iterate diameter or length to modify the heat‑transfer surface area.
- Validate with mechanical and wear considerations. Run a finite‑element shell‑stress analysis for the selected dimensions, confirming that thermal gradients (ΔT ≈ 1 200 °C from firebox to cooler) do not exceed allowable stress. Check for ovality risk: larger diameters increase the tendency for shell deformation under uneven loading.
- Finalize the design package. Document the chosen D, L, slope, L/D, gas velocity, and torque. Include a sensitivity study showing how a ±10 % change in fuel calorific value or raw‑material moisture impacts the heat balance. This package is essential for procurement and for the detailed engineering phase.
Practical diagnostic tips for existing kilns that appear undersized
- Monitor the temperature profile with thermocouples at 10‑m intervals. A premature temperature drop before the sintering zone signals insufficient residence time.
- Measure the gas velocity at the kiln inlet using a pitot tube. Velocities > 22 m s⁻¹ often indicate an oversized diameter that is starving the flame of oxygen, leading to incomplete combustion.
- Check the clinker quality (free‑lime < 2 %, LOI < 0.5 %). High free‑lime combined with low specific heat consumption (kWh t⁻¹) points to a too‑short kiln or excessive slope.
- Inspect the kiln shell for ovality > 3 mm per 10 m. Excessive ovality can be a symptom of uneven heat load caused by an undersized kiln trying to handle a higher capacity than designed.
For a complete heat‑balance simulation and automated sizing workflow, consider upgrading to our premium CementCalc Pro package, which integrates raw‑material chemistry, alternative‑fuel slip, and kiln‑shell stress analysis in a single dashboard.
What is the minimum kiln diameter needed for a 1 Mt yr⁻¹ plant?
The minimum diameter is governed by the inlet gas velocity requirement. Assuming a primary‑air flow of 150 m³ s⁻¹ and a target velocity of 18 m s⁻¹, the diameter works out to roughly 2.8 m. This value must be checked against the solid‑bed cross‑section to ensure the material can be conveyed without blockage.
How does changing the kiln slope affect fuel consumption?
Increasing the slope from 3 % to 5 % reduces the required motor torque, allowing the kiln to rotate slower. A slower rotation improves the residence time of the solids, which can lower the required fuel input by 2‑4 % because the material receives more heat per pass. However, a steeper slope also raises the risk of material segregation, so the optimum slope balances torque and material flow.
Can a kiln be resized after it has been commissioned?
Physical resizing (changing diameter or length) is rarely practical; it would require a new shell and major civil works. Instead, engineers typically adjust operating parameters—such as increasing the secondary‑air staging, adding a pre‑heater, or installing a cooler‑zone extension—to effectively extend the residence time and heat‑transfer area without altering the shell.
Why does a kiln with the correct dimensions still produce high free‑lime?
High free‑lime can result from insufficient temperature in the sintering zone, even if the geometry is correct. Common causes include poor fuel quality, inadequate secondary‑air distribution, or excessive moisture in the raw mix, all of which lower the flame temperature and reduce the effective heat available for clinkerization.
What role does kiln ovality play in sizing decisions?
Ovality is a deformation of the circular cross‑section caused by uneven thermal loading or mechanical stresses. An oversized kiln is more susceptible because the larger shell experiences higher bending moments. During sizing, engineers must ensure that the selected diameter does not push the shell beyond the allowable ovality limit (typically < 3 mm per 10 m) under worst‑case temperature gradients.
How do alternative fuels like RDF affect kiln sizing?
Alternative fuels often have lower calorific values and higher moisture content than coal, which reduces the flame temperature and increases the required gas velocity to maintain the same heat input. Consequently, the kiln may need a slightly larger diameter to keep the gas velocity within the 15‑20 m s⁻¹ window, or a longer length to provide additional residence time for complete combustion and clinkerization.
