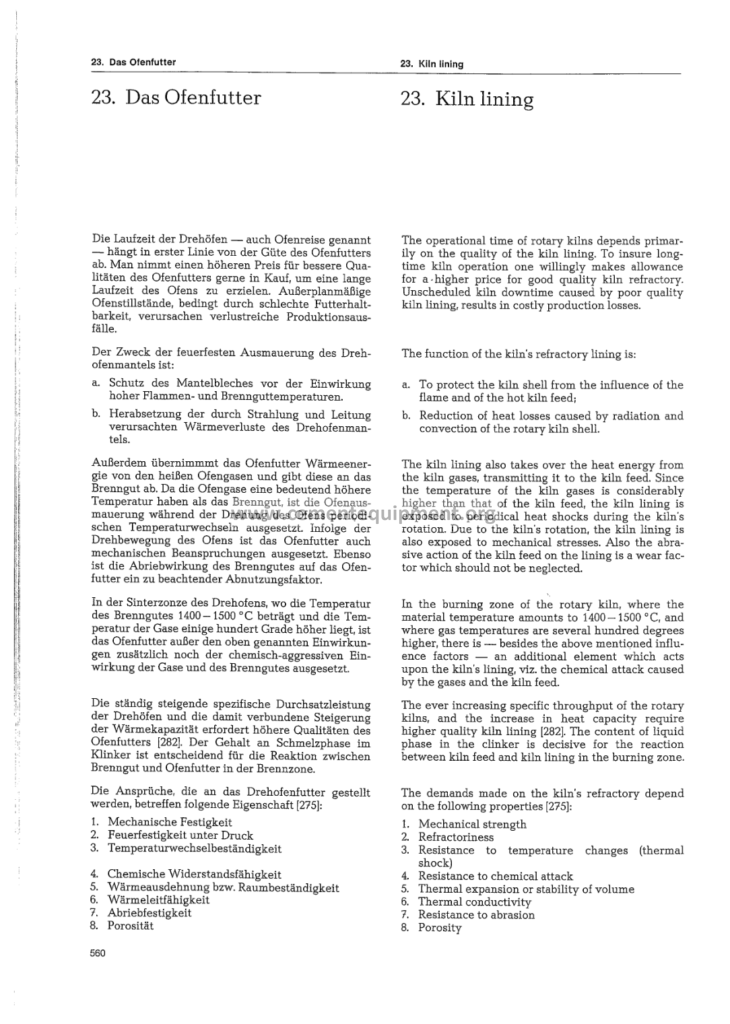

Kiln Lining: Complete Technical Guide

Kiln lining is the refractory armor of the rotary kiln: the layer inside the shell that faces the 1,400-1,500 degree flame, protects the steel shell, and survives the chemical attack of the clinker materials: the lining determines how long the kiln runs between relining stops and how much heat the shell radiates: this article is the complete technical guide to the kiln lining: the zones, the materials, the installation, the wear, the repairs and the costs.

The Complete Cement Technical Package (931 files including the courses, the books, the Excel tools and the presentations: $249.99 one-time: instant download via the PayPal payment) includes the Kiln Lining module of the cement process technology course: the module covers the refractory engineering of the kiln in the depth of the industry practice: the zone-by-zone selection, the brick types, the monolithic installations, the lining procedures, the wear analysis and the economy: this article walks the same content in the written form, section by section.

Why the lining deserves its own chapter: the lining replacement is one of the largest single maintenance costs of the pyro line, and a lining failure can stop the kiln for days: the modern kiln operates with a lining campaign balance between the shell protection and the production: the module, like this article, gives the complete vocabulary and the practical knowledge of the linings that the operations and the maintenance engineers need daily.

1. The Task of the Kiln Lining

The kiln lining must do several jobs at once, and the module frames the four duties:

• The thermal protection: the red-hot kiln shell at 200-350 degrees on the outside must stay below the metal limits (typically 350-400 degrees max for the carbon steel shell): the lining keeps the temperature difference: the module explains the heat paths and the thermal conductivities;
• The chemical protection: the clinker melt, the alkalis, the sulfur and the chlorides attack the refractory: the coatings protect the lining and the lining must survive the chemical load: the module teaches the attack mechanisms of the different sections;
• The mechanical protection: the abrasion of the tumbling clinker and the erosion of the gas stream wear the lining: the refractory must resist the mechanical stress and the thermal gradients: the module covers the loading cases of each zone;
• The process aid: the lining is not passive: the coating in the burning zone improves the heat transfer, and the correct lining reduces the shell losses: the lining is part of the combustion and the heat management of the kiln, not an external add-on;

The task description is the reason for the rest of the module: every material and every installation practice in the industry tries to satisfy the four duties in a zone of the kiln: the reader who understands the tasks can judge every refractory choice he meets in the plant.

2. The Zones of the Kiln and Their Duties

The kiln has a sequence of zones with different conditions, and each zone demands its own lining type: the module presents the zone map:

• The inlet zone (the calcining zone): 700-1,000 degrees C: the material flows cold and the gases exit: the lining protects the shell from the moderately hot gas: the classic choice: the high-alumina or the semi-basic materials: the zone suffers from the thermal shocks and the gas condensation;
• The transition zone (the middle): 1,000-1,300 degrees and the start of the bond formation: the conditions are the most punishing: the temperature fluctuates, the coating is unsteady or absent: the zone is where the magnesia-spinel or the magnesium-alumina materials shine: the brick reject the thermal shock and the chemical attack;
• The burning (sintering) zone: 1,300-1,500 degrees, the heart of the clinker formation: the coating is the normal companion: the zone needs the bricks that bond with the coating: the magnesia-chrome and the magnesia spinel materials serve here: the darkest section of the kiln:
• The discharge zone and the nose: 1,300 to 1,450 at the outlet, plus the mechanical abrasion of the cooled clinker: the dense bricks and the post-installation of the dam: the nose ring uses the heat-resistant castable and the shapes: the module covers the outlet end in the details:

The zone map is the spine of the whole lining subject: the module provides the temperature and the chemical map of each zone, and then the materials, the thickness and the installation per zone: the reader leaves the zone chapter knowing why the kiln has not one lining but five systems on the same shell.

3. The Refractory Materials of the Kiln: The Families

The linings of the kiln are selected from the refractory families, and the module teaches the properties that matter:

• The magnesia bricks: the pure or the alloyed periclase materials: the high refractoriness above 2,000 degrees, the resistance to the basic (clinker) attack, but the sensitivity to the thermal shock and the hydration: the bricks of the burning and the transition zones: the module covers the magnesia-chrome (now limited by the health rules) and the magnesia-spinel alternatives;
• The high alumina bricks: the 70-90% alumina materials: the strong in the transition zones and the calcining zones: the thermal shock resistance and the alkali resistance vary with the alumina content: the module gives the selection grid of the alumina family per zone;
• The dolomite bricks: the magnesium oxide and the calcium magnesium materials: the classic choice for the burning zones in some regions, compatible with the clinker coating, but the hydration sensitivity demands the careful handling and the storage: the module teaches the dolomite in the cases where it makes sense;
• The castables and the plastics: the monolithic materials for the noses, the hatches, the joints and the repair: the installation by casting, pumping or firing: the module covers the castable grades, the anchorage and the curing of the monolithics: the repair workhorse of the kiln;
• The specialties: the silicon carbide for the feed inlets and the preheater, the insulating bricks and the boards under the armies, the fiber modules for the expansion joints: the module gives the specialty map with the performance and the prices;

The material chapter gives the reader the “alphabet” of the linings: the module does not push any brand, but teaches the classification, the manufacturer data and the selection logic: after this chapter, the engineer can read any refractory data sheet and talk to any seller with the demands of the kiln in mind.

4. The Design of the Lining: The Thickness and the Constraint

The lining is placed inside the shell with exact design relations, and the module teaches the engineering:

• The thicknesses: typically 200-250 mm of the active lining (the bricks) and the backing: the shell is doubled with the 100-150 mm of the castable or the boards: the detail depends on the zone and the kiln diameter: the module: the typical thickness table per zone and the shell heat losses they produce;
• The shape and the keys: the bricks do not need to be the same shape: the wedge shapes and the key bricks fix the brick ring: the expansion joints: the module: the brick shapes and the fitting standards of the kiln bricks: the heat and the mechanical strains of the shell and the brick:
• The shell and the ovality: the kiln shell is not a perfect cylinder: it deforms with the heat and the load: the lining must follow the oval shell: the module teaches the measurement of the shell run-out and the influence on the lining: the oval shells destroy the linings:
• The interplay with the coating: the burning zone is designed with the coating in mind: the 200 mm of lining plus the 100-200 mm of coating act together as the thermal wall: the module gives the heat-english calculations that justify the designs: the coating is the friend of the lining:

The design chapter makes the lining an engineering calculation and not a box of bricks: the reader takes the kiln data and specifies the lining: the module also warns of the failure modes that the bad design brings: the local hot spots, the metal bulges and the collapse of the coatings: after this chapter the reader can audit any lining system on the kiln.

5. The Installation of the Kiln Lining: The Procedures

The installation quality decides the life of the lining as much as the material, and the module dedicates a chapter to the procedures:

• The shell preparation: the shell cleaned, the welding defects removed, the surface is cleared and the anchor beds installed: the module: the preparation of the shell before the lining: the “clean ship” principle;
• The brick laying: the bricks are set from the bottom to the top, ring the ring: the installation removes the moving device (the lifting arch or the jig): the module teaches the jig: the clicking of the ring: the placement of the key:
• The ring closure and the keying: the final brick of the ring must be placed with the jig: methods: the key with the metal shims, the closing with the jack and the use of the spring steel: the module: the detail of the “interlocking” of the ring: the correct closure is the difference between the good and the short lining life;
• The inspection on completion: the alignment check, the internal surface inspection, the tag and the identification: the module: the Acceptance: The module is complete: the installation procedure of the full kiln lining 25-40 days work with the two shifts: the module covers the crews and the rates: the installation economy:

With the installation chapter the module makes the reader capable of supervising a relining: the lining is worth the money, but the installation is the 50% of its life: the module gives the hands-on practice section with the drawings and the checklists, so the engineer can supervise or implement the installation with the correct procedures.

6. The Coating: The Lining Sister

The coating of the burning zone is the layer of the clinker that sticks to the lining, and the module devotes a full chapter to it:

• The nature of the coating: the liquid phase of the burning material interacts with the hot surface of the refractory, forming a baked layer of the knots: the coating of 80-200 mm protects the lining and enhances the heat transfer: the module is the physical and the chemical: the coating formation:
• The conditions of the coating: the temperature, the chemistry of the raw meal (the lime saturation, the magnesia, the dead fires), the flame shape, the shell: the module: the coating analysis and the diagnostics: the coating losses and the knows:
• The protection and the repair: the coating must be recovered after a kiln stop or an upset: the module: the operating and the refractory actions: the “coating recovery” procedures of the plant: the best linings of the burning zone are the pair with a stable coating:
• The failures the coating causes: the chimney rings, the snowmen, the large boulders: the module: the “skirt” of the formation and the prevention in the process control: the coating is not only a lining topic: it is a process topic shared by the kiln and the refractory chapters:

The coating chapter connects the lining to the process: the module stops the division between the chemistry and the mechanics: the coating forms, lives and recovers per the operating,- and the module gives the complete methodology to manage it: the coating is the second layer of the burning zone and the reader does not leave it to the chance.

7. The Wear of the Linings: The Monitoring and the Replacement

The lining wears and is replaced on the plan, and the module teaches the lifecycle:

• The monitoring: the shell inspection with the temperature scan (the thermography), the shell surface measurement, the wear detection: the module: the measurement technology of the shell and the lining: the “hot spot” and the “shell bulge” reading:
• The remaining life prediction: the campaign of the lining zone by zone: the collected run data, the wear rates, the failures: the module: the statistical treatment of the brick lives and the “weibull” approach: the planned replacement of the assemblies before the failure:
• The failure mechanics: the faults that happen: the brick crack, the alkali break, the explosion (the micro-spalling), the mechanical: the module: the failure catalog with the photos and the causes: the troubleshooting of the lining:
• The life of the campaign: the typical lining lives: the burning zone 6-12 months, the transition zone 12-24, and the other zones up to the campaigns of the several years: the module covers the campaign improvement: the better materials, the control of the gas atmosphere, the repair: the “lining is the schedule” principle: the relining plan of the kiln.

The wear chapter is the look of the engineer on the lining: the module gives the instruments, the inspection intervals, the failure modes and the predictive mathematics: the costly surprise of the premature kiln stop is prevented only by the monitoring, and the module makes the reader capable of the monitoring: the diagnostic of the lining becomes the daily skill.

8. The Costs and the Economy of the Lining

The lining is a significant cost category of the cement plant, and the module gives the economy of the subject:

• The cost structure: the material cost per tonne of the refractory (500-2,000 USD per tonne depending on the grade), the installation labor, the kiln shutdown days, the production lost: the module builds the true total cost of the relining: the “the stop is the biggest line”:
• The cost per tonne of production: the indicator of the lining economy: typically 0.5-1.5 USD per tonne of clinker depending on the scheme and the zone: the module: the calculation of the plant: the compare with the fuel and the power;
• The trade-offs: the cheap brick vs the expensive longevity: the module: the classic “the premium pays in the campaign”: the case study of the alternative-lining with the same kiln production and the different white:: the module builds the NPV of the lining decision;
• The optimization: the lining and the alternative fuels: the higher the alternative fuel share the more the chemical attack of the lining: the module covers the linings economics of the alternative fuel kilns: the fuel economy vs lining cost: the challenge of the modern green kilns:

The economy chapter completes the module: the engineering of the linings is not for the art: it is for the money: the module gives the full cost model and the tools: the engineer can justify any lining or the relining decision to the management with the numbers: the campaigns of the kiln are planned with the production and the costs of the contract: the module is the complete.

9. The Frequently Asked Questions

What is the difference between the kiln lining and the refractory?

The refractory is the material family (the bricks, the refractories do not melt): the lining is the system of the protection: bricks, the mortar, the castable, the backing, the anchors and the coating: the kiln lining is the complete assembly: the module covers the material in the refractory module and the system integration here: the wording: the lining contains the refractories and the design.

How often do we need to reline the rotary kiln?

The worst zone (the burning or the transition) is in the interval of 6-18 months: the rest of the kiln stays for 2-5 years: the separate sectors are still replaced: the total relining of the kiln is rare: the module gives the zone life table and the accounting method to plan the replacements: the answer combines the quality of the materials and the kiln operations.

Why does the coating of the burning zone protect and not harm the lining?

The coating is the layer of the clinker melt that sticks to the brick: at 100-240 mm of thickness it does the job of the working lining: the coating lowers the brick temperature to the safe level, raises the heat transfer to the clinker and is the natural protection of the brick: the coating appears to protect the lining: it must be supported, but it is the natural protection of the burning zone.

What does “spalling” mean in the linings?

The spalling is the breaking and the flaking of the lining surface due to the thermal shock: the rapid temperature drops cause the micro-cracks that release the pieces: the spalling is a main cause of the premature lining failure: the module teaches the mitigation: the correct material, the gradual temperature changes of the kiln startup and the shutdown, the design of the modules – The word appears in the failure catalog of the module.

What’s the cost of a kiln relining?

Depending on the kiln size, the material and the work, the total reuration of the burning zone with the installation can reach 0.5-1.5 USD per tonne of clinker over a campaign: for the 5,000 t/d line the burning zone reline cost is typically hundreds of thousands of dollars including the lost production: the module: the full cost building: the material, the labor, the stop: the total-cost is the correct basis of the decision.

How are the camcorders of the kiln fixed during operation?

Only with the cameras and the sensors: the hot plug of the kiln: the shell scanning, the wear measurements and the thermal are monitored continuously: the repair: the need to stop the kiln and to replace the worn zones: the refractory of the modern: the predictive: the kiln keeps running as long as the lining holds within the limit, and the repairs are done in the planned stops.

10. Conclusion

The kiln lining is the vital armor of the rotary kiln: the task, the zones, the materials, the design, the installation, the coating, the wear and the life economics: the module of the course, and this article have walked the whole subject: the engineer today reads the thermography of the kiln, knows the zone life of the burning zone, verifies the installation, plans the relining and defends the cost to the management: the lining is not the stonewall anymore: it is the planned engineering of the pyro plant.

The Kiln Lining module closes the kiln zone of the Complete Cement Technical Package (931: courses, books, the Excel and the presentations: $249.99 one-time, instant download, lifetime access): the package pairs the lining with the kiln burning, the coating, the refractory install and the kiln relining decisions: the one-click below delivers the whole pyro library: the lining is the last piece of the separate chapters: the engineer who studies it closes the full circle of the rotary kiln: the PayPal button starts the download.

13. The Lining Design: The Selection of the Zones

The lining of the rotary kiln is not one lining but four: the design of the refractory selects the classes of the bricks zone by zone, and the file’s tables support the selection:

• The burning zone: the basic magnesite bricks with the magnesia-spinel or the magnesia-chrome at 90-97% MgO: they resist the clinker liquid and the coating that forms: the service at 1300-1500°C with the alternations: the key zone of the kiln’s life;
• The transition zones: the semi-basic bricks of the magnesia-spinel felt-2: the variations of the temperature and the coating instability: the resistance to the abrupt operated cycles;
• The upper zones: the high-alumina bricks (50-80% Al2O3) of the preheating and the calcining: the abrasion and the moderate temperatures: the chemical attack of the alkalis and the chlorides of the gas: the alum content, the section;
• The nose and the cooler: the castables and the monolithic materials of the kiln nose and the cooling region: the shape of the noses require the castable solutions: the specification of the material of each zone: the file’s drawing;

The selection table of the zones is the beginning of the refractory order: the engineer assigns the brick class to each length of the shell, the drawings of the supplier assemble the kit and the ROI the kilns must deliver in the next 12 to 24 months: the zone selection of the linings the file teaches has a direct row in the millers books of the plant: the lining, selected correctly the first time.

The lifespan of the lining zones tells the health of the burning: the burning zone at 8-15 months, the transition at 12-24, the preheating zones at several years of service: the log of the plant compares the lifetimes with the reference and the deviations point the causes: the type of the bricks, the burnings habits of the crew, the raw chemistry of the alkalis: the file treats the actual lifetimes as the first page of the refractory report, because the cost of the relines is written in the lifetimes: the log, the analysis, the improvement.

The Lining of the Future: The Monolithic Logic

The refractory technology moves, and the file’s closings note the direction of the future:

• The monolithics rise: the castables of the alkaline-resistant, the insulating intermediates: poured instead of laid: the construction weeks shortened by the 60%: the labor of the lining reduced, the flat surfaces of the rotor and the kiln noses the monolithics takeover;
• The brick geometry: the new contraction block systems of the burners: the old locks, the new forms: the quicker reline of the oven 4 days instead of the 7: the safety of the bricklayer and the time of the kiln:
• The thermal screening: the insulating bricks of the shell sides: the shell temperature drops with the 50-80°C: the heat losses of the shell reduced and the operators protected: the outer cylinder of the kiln: the discomfort reduced;
• The monitoring: the shell scanning of the plant ​ the thermoCam sees through the subranges and finds the red points of the day: the brick failures repair the red: the scanning linked to the file: the predictive lining plan: the lifetimes up by the 10-20%:

The monolithic marker: the future of the lining is the material science of the refractory: the file takes the engineer to the edge of the technology without leaving the ground of the practical: the next reline, the plan of the file.

The Life Cycle of a Castable Reposition

The refractories of the kiln add their calendar to the plant: the zones of the kiln wear at different depths and plan the reline positions:

• The planning horizon: the lining ’s life cycles set the kiln ’s major stops: the burning zone 8-15 months, the transition zone 12-24 months, the preheating zones 24-60 months: the plant sums the costs of the relines into the annual budget of the kiln;
• The casting logistics: the reline is planned in weeks: the brick stacked and sorted by zone weeks earlier, the kiln cooled below 100°C at the shell, the scaffold inside, the brick ring installed brick by brick against the centerline template: the crews 24/7 for the two weeks: the quality of the reline decides the campaign lifetime;
• The first fires: the newly lined kiln is heated on the carefully planned curve: the bricks and the casting must pass the thermal shock: the heating rate per hour written in the procedure and the hold points marked: the first firing turns the green lining permanent;
• The long-term records: the plant records the failure mode of each zone: the wear profile, the cracking, the spalling: the record builds the knowledge of the next relines — the file of the refractories: the perforated history of the lining lifetimes;

The calendar of the kiln is the calendar of the lining: the planned reline of the kiln, the one time the whole plant stops for the refractory, sets the production cadence of the facility.

The algebraic center of the lining ’s cost: the operator notes the refractory expense per ton of clinker (the “refractory cost” of the plant, typically between 20 and 40 cents per ton) comes half from the bricks themselves and the half from the labor and the kiln downtime: the dual lever of the cost: the longer the campaign, the thinner the annual slice of the reline cost—the file teaches the crew to aim, not for the cheapest bricks, but for the longest uniform campaign: the uniform wear, the planned stop, the discipline of the process: the price of the bricks is the price of the continuity.
