Analysis of refractory degradation

Previous Post
Next Post

Analysis of refractory degradationProcedures for its identification and documentation.



TO DOWNLOAD THE MOST IMPORTANT BOOKS , MANUALS , OPERATION NOTES , FORMUFLAS , EXCEL SHEETS CLICK HERE NOW !!



Wear or Damage?

  • Ideal Wear

  (As consequence of  OEE > 0.85, service life of 12, 24, 36 months)

  • Normal Wear (to date)

  Slow, continuous loss of lining thickness, with service life < 12, 24, 36 months

  • Damage

  Sudden, rapid loss of lining thickness (at any time)

Factors influencing Service Life

Factors influencing kiln refractories Service Life

Factors influencing kiln refractories Service Life



Extended factors influencing service life

User’s Responsibility

  • installation
  • drying/heating-up
  • service conditions
  • thermal-mechanical- chemical

Producers Responsibility

  • raw material quality
  • quality of manufacture
  • product design

Combined Responsibility

  • selection
  • packing / storage



User’s Responsibility

  • installation (10%)
  • drying/heating-up (?)
  • service conditions (67%)

thermal (18%)-mechanical (24%)-chemical (25%)

Producers Responsibility

  • raw material quality (17%)
  • quality of manufacture (3%)
  • product design (1%)

Combined Responsibility

  • selection (2%)
  • packing / storage (?)

Indicators come from various sources

Information available to plant

  • Refractory specification sheets
  • Previous refractory history of kiln
  • Shell scanner print-outs
  • Location of hotspots on kiln shell (welds, tyres, drive)
  • Shell ovality / alignment and permanent deformation data
  • Number / duration of kiln stops
  • Variations of kiln feed rate / chemical composition
  • Colour of clinker (reducing conditions)
  • Intensity of clinker burning (free lime)
  • Photos showing in-situ appearance of worn refractory
  • Appearance of vertical cross-section of refractory

Factors requiring laboratory tests

  • Chemical and mineralogical composition of worn refractory
  • Macro- and micro-texture of worn refractory
  • Micro-chemical analysis of worn refractory
  • Thermal conductivity

Data-sheet as indicator

Magkor-B-L-P

Magkor-B-L-P

Lining history as indicator

Lining history as indicator

Lining history as indicator

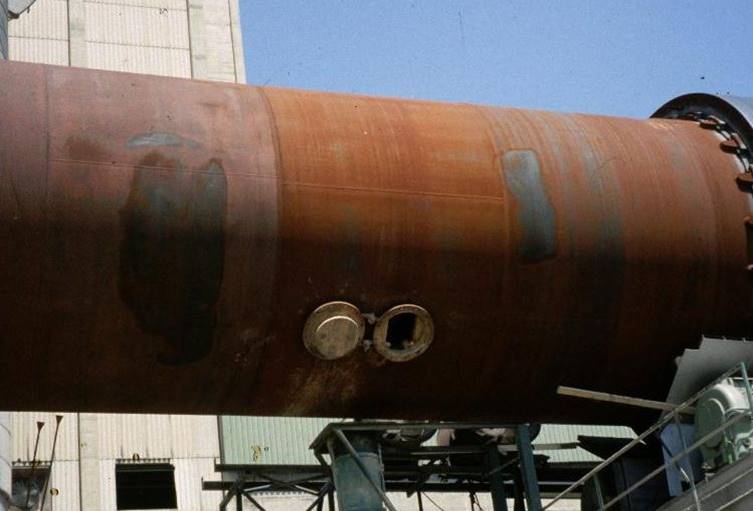

Location as indicator

Location as indicator

Location as indicator

Location as indicator1

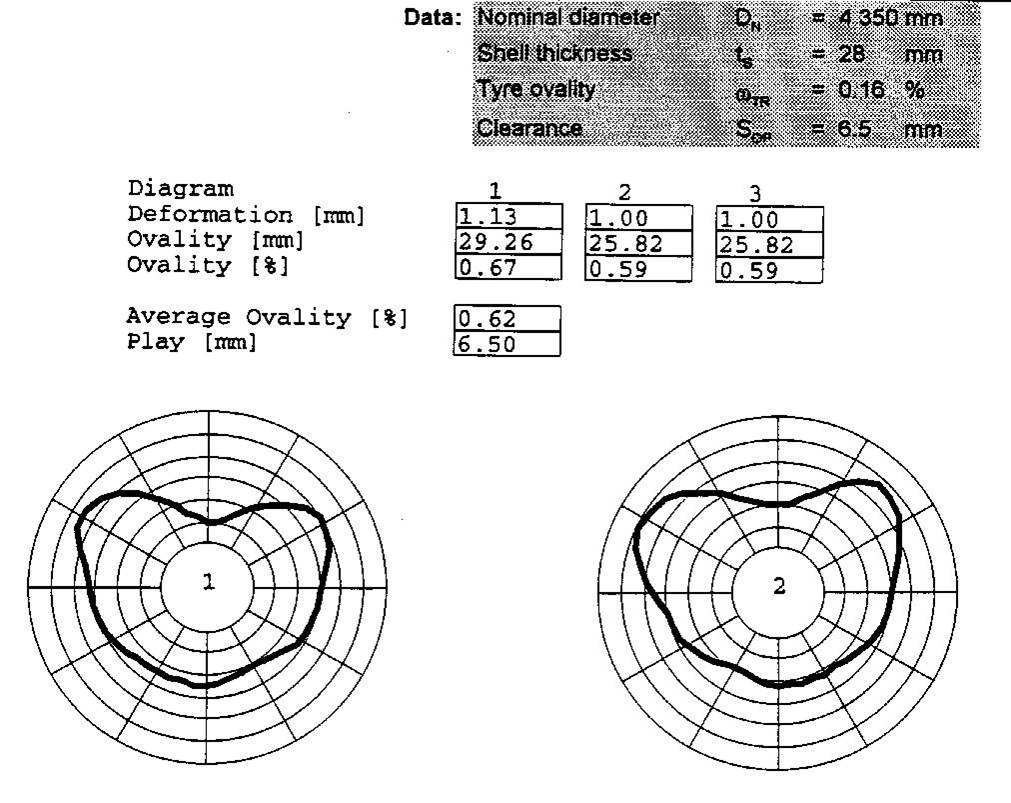

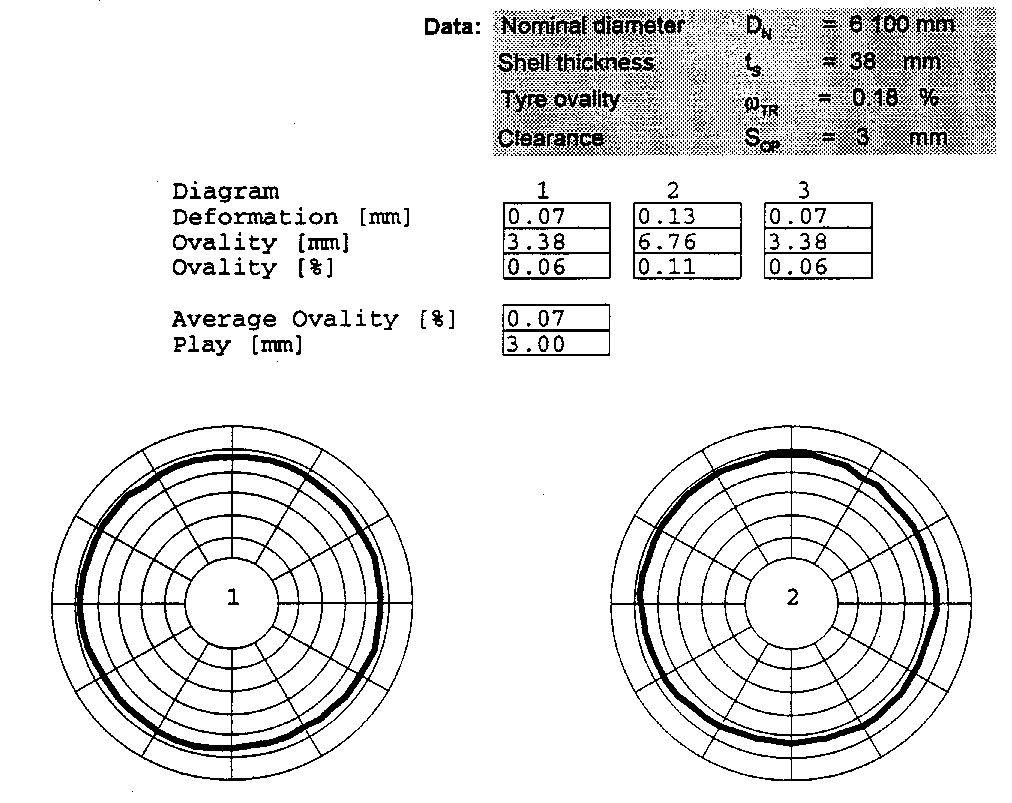

Shell ovality / alignment as indicator

Shell ovality . alignment as indicator

Shell ovality . alignment as indicator

Shell ovality . alignment as indicator22

In-situ appearance as indicator

In-situ appearance as indicator

In-situ appearance as indicator

Vertical cross-section as indicator

Vertical cross-section as indicator

Vertical cross-section as indicator

Vertical cross-section as indicator22

Vertical cross-section as indicator22



Brick colour as indicator

Brick colour as indicator

Brick colour as indicator
